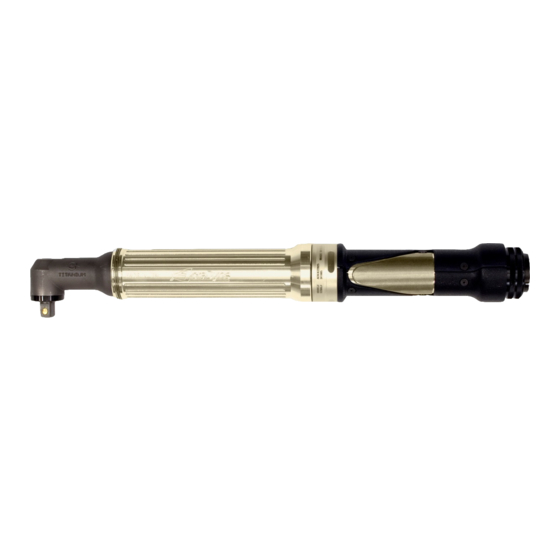

- Page 1 AcraDyne Gen III 2000 Series Nutrunners Operations Manual PO Box 16460, Portland OR 97292-0460 • 800-852-1368 • Fax 800-582-9015 www.aimco-global.com...
- Page 2 INTRODUCTION Thank you for purchasing this AcraDyne DC electric assembly tool, one of the lightest and fastest DC electric assembly tools on the market. When used with the AcraDyne iEC tool controller, this tool will provide excellent productivity, ergonomics, reliability and quality on a wide range of industrial assembly applications. Safety Information SAVE THESE INSTRUCTIONS WORK AREA...
- Page 3 OPERATIONS Multi Function Cable Angle Head Button Connection Tool Body Square/ Hex Drive Start Lever 1. Connect tool cable to the iEC controller and the tool: underway. Pressing the MFB will cause the tool to flash yel- The tool cable has curved alignment tabs and slots low and red LED lights.
- Page 4 GEN III 2000 SERIES ANGLE NUTRUNNERS PAGE HEADER HERE Assembly for: AEN32015A, AEN32025A, AEN32030A and AEN32040A ITEM # QTY. PART # DESCRIPTION 32015A 32025A 32030A 32040A 25064 MOTOR HOUSING 25425 MOTOR ASM., 5:1, 2000 SERIES GEN III 25063 LED BOARD ASM. 25075 SCREW, SHC 4-40X.375, STEEL, BLACK OXIDE 25429...
- Page 5 GEN III 2000 SERIES IN-LINE NUTRUNNERS PAGE HEADER HERE Assembly for: AES32010A, AES32020A and AES32025A ITEM # QTY. PART # DESCRIPTION 32010A 32020A 32025A 25064 MOTOR HOUSING 25425 MOTOR ASM., 5:1, 2000 SERIES GEN III 25063 LED BOARD ASM. 25075 SCREW, SHC 4-40X.375, STEEL, BLACK OXIDE 25429 STAND-OFF, LED, 2000 SERIES...
- Page 6 GEN III 2000 SERIES IN-LINE NUTRUNNERS PAGE HEADER HERE Assembly for: AES32038A and AES32068A ITEM # QTY. PART # DESCRIPTION 32038A 32068A 25064 MOTOR HOUSING 25425 MOTOR ASM., 5:1, 2000 SERIES GEN III 25063 LED BOARD ASM. 25075 SCREW, SHC 4-40X.375, STEEL, BLACK OXIDE 25429 STAND-OFF, LED, 2000 SERIES 21145...
- Page 7 SPECIFICATIONS Environmental • Operating Temperature: 0°C to 32°C • Storage Temperature: 0°C to 65°C • Humidity: 5% to 90% RH, Non-Condensing, for temperatures 0°C to 40°C 5% to 60% RH, Non-Condensing, for temperatures 0°C to 65°C • Maximum Altitude of Operation: 3000m •...
- Page 8 AIMCO CORPORATE HEADQUARTERS AIMCO CORPORATION DE MEXICO SA DE CV 10000 SE PINE STREET AVE. CRISTOBAL COLON 14529 PORTLAND, OREGON 97216 CHIHUAHUA, CHIHUAHUA. 31125 PHONE: (503) 254–6600 MEXICO TOLL FREE: 1-800-852-1368 PHONE: (01-614) 380-1010 FAX: (01-614) 380-1019 LIT-MAN161 REV. 02/2014...
