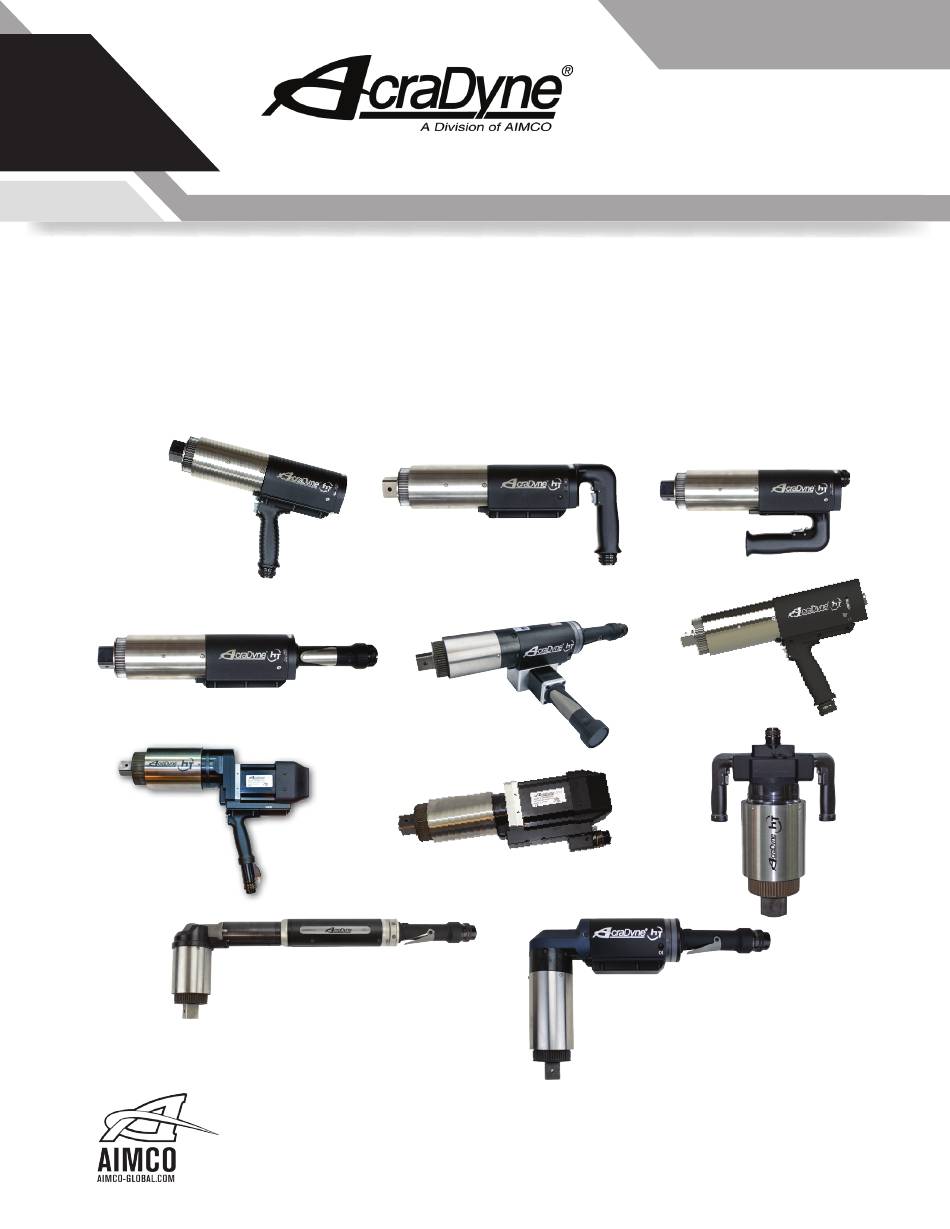

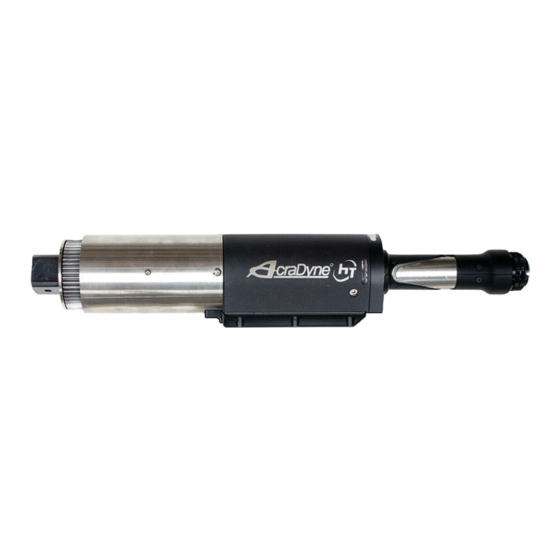

- Page 1 Gen 4 HT Series Gen 3 5000 HT Angle Series Operation Manual High Torque DC Nutrunners 10000 SE Pine St., Portland OR 97216 • 503-254-6600 • 800-852-1368 www.aimco-global.com...
-
Page 2: Table Of Contents
Tool Specifications Accessories Recommended Maintenance AIMCO Limited Warranty Introduction Thank you for your purchase of an AcraDyne® HT Series Electric Transducerized Nutrunner. These Nutrunners deliver true, traceable Torque and Angle tightening events with data recording abilities delivered by the connected AcraDyne Controllers. -
Page 3: Safety Information
Safety Information CAUTION – DO NOT USE THE ACRADYNE® HT NUTRUNNING SYSTEM WITHOUT FULLY READING THIS MANUAL AND HAVING A COMPLETE UNDERSTANDING OF THE CORRECT USAGE OF A HIGH TORQUE DELIVERING TOOL AND ANY ASSOCIATED REACTION BARS/ACCESSORIES. SAVE THESE INSTRUCTIONS 1) WORK AREA c) Avoid accidental starting. -
Page 4: Operation
Operation CAUTION IS REQUIRED. FAILURE TO EXERCISE CAUTION AND CORRECT OPERATING TECHNIQUE CAN RESULT IN SERIOUS PERSONAL INJURY, LOSS OF LIMB OR DEATH. AcraDyne® HT Series Nutrunners are a part of a complete system including Controller, Tool Cable and Tool. Specific instructions on setup, programming and features are described in greater detail within the AcraDyne®... - Page 5 Operation Make sure that power is not turned on at the controller before making any connections to tool. 3) Start Lever Operation: To start the tool, depress the start lever. Blue LED lights 1) Connect the tool cable to the iEC controller and the tool: will be displayed while tightening a bolt once In Cycle Torque is reached.
- Page 6 Operation Slip Ring Models An optional feature (AEx4Bxxxxxxx models) on AcraDyne HT Series Nutrunners is a Slip Ring that allows the Gearbox to rotate 360 degrees in either direction related to the motor/handle assembly. This feature is useful in enabling the operator to position the reaction bar against a reactive point of sufficient structure prior to commencing tightening of the bolt.
-
Page 7: Reaction Bar Safety
Reaction Bar Safety AcraDyne® HT Nutrunning Systems deliver high amounts of torque to an application in a continuous drive manner. As is the nature with all tool systems that function in this manner, high amounts of torque reaction will occur. AcraDyne®... -
Page 8: Environmental & Electrical Specifications
Environmental & Electrical Specifications Environmental • Operating Temperature: 0°C to 32°C • Storage Temperature: 0°C to 65°C • Humidity: - 5% to 90% RH, Non-Condensing, for temperatures 0°C to 40°C - 5% to 60% RH, Non-Condensing, for temperatures 0°C to 65°C •... -
Page 9: Tool Specifications
Tool Specifications Gen 3 5000 Series HT Angle Tools 5000 Series HT Angle Tools Max. Free Dimensions Torque* Torque Range Speed Weight Output MODEL FT-LB FT-LB SQ Drive AEN356540A 135 – 540 100 – 398 13.1 5.95 3/4” 22.58 573.6 2.31 58.7 4.75... - Page 10 Tool Specifications Fixed Gearcase HT Tools Pistol Type Axial Type Rear Mounted Pistol Straight Lever Type (AES) Fixtured Type (AEF) (AEP) (AEJ) (AED) HT Fixed Gearcase Tools Approx. Approx. Total Length Torque Speed Weight (incl sq. dr) Dia. Drive Sound Level Model FT-LB dB(A)
- Page 11 Tool Specifications 360° Swivel Gearcase HT Tools Rear Mounted Pistol Axial Type Pistol Type (AED) (AEJ) (AEP) HT 360° Swivel Gearcase Tools Approx. Torque Approx. Speed Weight Length (incl sq. dr) Dia. Drive Sound Level Model FT-LB dB(A) HT Series 360° Swivel Gearcase Models (R) = Pistol Tool with Rear Exit Cable 6000 Series AE (P) 4B66250B(R)
- Page 12 Tool Specifications Dual-Lever Fixed Gearcase HT Tools AEJ Type AES Type AEP Type HT Fixed Gearcase Dual-Lever Tools Length Dual Lever Approx. Torque Approx. Speed Weight (incl sq. dr) Dia. Drive Sound Level Model FT-LB dB(A) HT Series Fixed Gearcase: Dual-Lever Models For Straight Type Tools Only: (L) = Left-Side Handle (R) = Right-Side Handle 6000 Series AE (P) (F) 4A66250BDL...
- Page 13 Tool Specifications HTXD Extreme Duty High Torque Tools Dual J-Handle Models Fixtured Model Pistol Model 6,500 Nm 12,000 Nm J-Handle Model 12,000 Nm 12,000 Nm 17,000 Nm HT 360° Swivel Gearcase Bolting Tools for Extreme Duty Approx. Torque Approx. Speed Weight * Length (incl sq.
-
Page 14: Accessories
Case with molded foam insert CC-7000-FIP 7000 series Case with foam in place CC-8000-F 8000 series Case with molded foam insert CC-8000-FIP 8000 series Case with foam in place Please contact an AIMCO Customer Service Associate for details, 1-503-254-6600, or toll free 1-800-852-1368. -
Page 15: Recommended Maintenance
Accessories CABLE ASSEMBLIES Length 24330 Model Description Standard Tool Cable The AcraDyne DC electric nutrunner Tool Cables tool system uses a single cable to 24330 G3/G4 Tool Cable 3M carry all necessary conductors for 25350 G3/G4 Tool Cable 5M 16.4 superior ergonomics and durability. - Page 16 LIABILITY WHICH MAY ARISE OUT OF THIRD PARTY CLAIMS representative of AIMCO, has made any attempt to service AGAINST BUYER. THE ESSENTIAL PURPOSE OF THIS or modify the tool or accessory prior to its return to AIMCO PROVISION IS TO LIMIT THE POTENTIAL LIABILITY OF under this Warranty.
