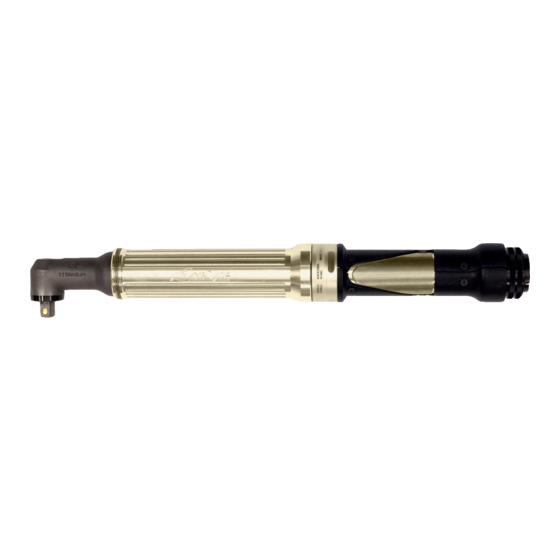

- Page 1 AcraDyne Gen III 2000 Series Tubenut runners Operations Manual PO Box 16460, Portland OR 97292-0460 • 800-852-1368 • Fax 800-582-9015 www.aimco-global.com...
- Page 2 INTRODUCTION Thank you for purchasing this AcraDyne DC electric assembly tool, one of the lightest and fastest DC electric assembly tools on the market. When used with the AcraDyne iEC tool controller, this tool will provide excellent productivity, ergonomics, reliability and quality on a wide range of industrial assembly applications. SAFETY INFORMATION SAVE THESE INSTRUCTIONS WORK AREA...
- Page 3 OPERATIONS Cable Multi Function Connection Button Tool Body Start Lever 1. Connect tool cable to the iEC controller and the tool: underway. Pressing the MFB will cause the tool to flash yel- The tool cable has curved alignment tabs and slots low and red LED lights.
- Page 4 GEN III 2000 SERIES TUBENUT RUNNERS PAGE HEADER HERE Assembly for: AET32020A, AET32025A, AET32035A and AET32050A ITEM # QTY. PART # DESCRIPTION 32020A 32025A 32035A 32050A 25064 MOTOR HOUSING 25425 MOTOR ASM., 5:1, 2000 SERIES GEN III 25063 LED BOARD ASM. 25075 SCREW, SHC 4-40X.375, STEEL, BLACK OXIDE 25429...
-
Page 5: Specifications
SPECIFICATIONS Environmental • Operating Temperature: 0°C to 32°C • Storage Temperature: 0°C to 65°C • Humidity: 5% to 90% RH, Non-Condensing, for temperatures 0°C to 40°C 5% to 60% RH, Non-Condensing, for temperatures 0°C to 65°C Maximum Altitude of Operation: 3000m •... - Page 6 TUBE-NUT TOOL SETUP DETAILS OVERVIEW The following describes the setup required for tube-nut tool operation. This includes determining the values for tube-nut spe- cific TID parameters (parameters residing in the tool memory) and iEC Controller parameters. TUBE NUT HOMING parameTers The tube nut TID parameters can be viewed and modified from the Tool->...
- Page 7 • Tube Nut Homing Reverse Dwell Time: - The amount of time before the output is allowed to home, after the rundown is complete and the tool lever is re- leased. Units: Seconds - Default value: 0.5 Seconds - Range: 0 to 2 Seconds •...
- Page 8 TUBE NUT PINCH DETECTION TID p arameTers The tube nut TID parameters can be viewed and modified from the Tool-> Edit->Tool Setup screen in ToolWare. The tool to be configured must be connected to the controller. • Obstruction Detection Torque - (in*Lb) - At the start of rundown before the output rotation has passed though the Obstruction Check Zone (where the output is open at the start of the fasting cycle), the tool will stop and fastening cycle will be aborted if this torque is exceeded.
- Page 9 geN IV c ’ oNTroller arameTers ffecTINg INcH eTecTIoN - Units: RPM of the tool output - Default: 90 RPM - Range: 1 to 200 RPM - Obstruction Check Acceleration Limit - Rate at which the speed of the tool ramps to Obstruction Check Speed. - Units: kRPM/second - Default value: 0.5 - Range: 0.1 to 10...
- Page 10 NOTES...
- Page 11 NOTES...
- Page 12 AIMCO CORPORATION DE MEXICO SA DE CV 10000 SE PINE STREET AVE. CRISTOBAL COLON 14529 PORTLAND, OREGON 97216 CHIHUAHUA, CHIHUAHUA. 31125 PHONE: (503) 254–6600 MEXICO TOLL FREE: 1-800-852-1368 PHONE: (01-614) 380-1010 FAX: (01-614) 380-1019 LIT-MAN164 REV. 07/2020 PRINTED IN USA ©2020 AIMCO...
