- Page 1 Gen 4 Operation Manual Gen IV 2000 Series DC Nutrunners 10000 SE Pine St., Portland OR 97216 • 503-254-6600 • 800-852-1368 www.aimco-global.com...
- Page 2 Introduction Thank you for purchasing this AcraDyne DC electric assembly tool, one of the lightest and fastest DC electric assembly tools on the market. When used with the AcraDyne iEC tool controller, this tool will provide excellent productivity, ergonomics, reliability and quality on a wide range of industrial assembly applications. SAVE THESE INSTRUCTIONS Safety Information 1) WORK AREA...

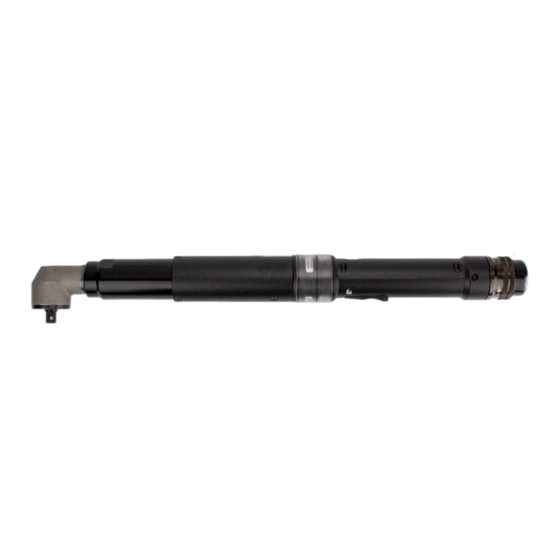

- Page 3 Operation AEP Pistol Model AEN Angle Model Mid-Exit Model AES Straight Model AEP Riv-Nut Model # Part • Square/Hex Drive AET Tubenut Model • Mandrel (Riv-Nut models only) (Dual Lever) 2 Multi-Function Button LED Status Lights 4 Trigger/Lever Cable Connection Tubenut Head Assembly 1.
- Page 4 Tubenut Tool Setup The following describes the setup required for tube-nut tool Typical Procedure for Setting the Tool’s Tube Nut Home TID operation. This includes determining the values for tube- Parameters nut specific TID parameters (parameters residing in the tool •...
- Page 5 Tubenut Tool Setup GEN IV Controller Parameters Affecting Tube Nut Homing Tube Nut Obstruction Detection Controller parameters for tube-nut operation can be viewed Tube Nut Home TID Parameters and modified from the Controller->Tool Setup->Disassembly and Tube-nut screen. The tube nut TID parameters can be viewed and modified from the Tool->...
- Page 6 Tubenut Tool Setup GEN IV Controller Parameters Affecting Tube Nut Obstruction Detection Controller parameters for tube nut operation can be viewed and modified from the Controller->Tool Setup->Disassembly and Tube-nut screen. • Obstruction Check Angle ◦ Angle of travel from the start of the fasting cycle where if an obstruction is detected inside this zone, the tool will stop and the fastening cycle will be aborted.
- Page 7 NOTES...
- Page 8 • 2000 Series Tools ◦ Torque range: 3.5 - 55 NM ◦ Speed Range: 525 - 1,828 RPM CORPORATE HEADQUARTERS AIMCO CORPORATION DE MEXICO SA DE CV 10000 SE Pine Street Ave. Cristobal Colon 14529 Portland, Oregon 97216 Chihuahua, Chihuahua. 31125 Phone: (503) 254–6600...
