Satel SPL-5010 Manual

Optical-acoustic outdoor siren

SPL-5010

OPTICAL-ACOUSTIC OUTDOOR SIREN

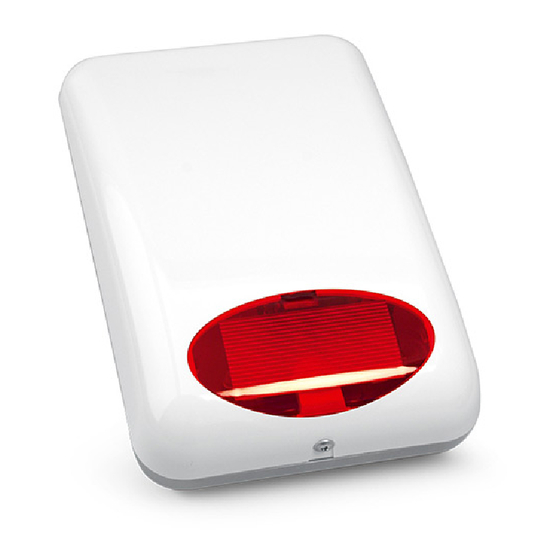

The SPL-5010 siren provides information about alarm situations by means of optical and

acoustic signaling.

1. Features

 Acoustic signaling by means of piezoelectric transducer.

 Optical signaling by means of LEDs.

 Weatherproofed electronic circuit.

 Tamper protection in 2 ways – cover removal and tearing enclosure from the wall.

 High-impact polycarbonate enclosure, featuring a very high mechanical strength.

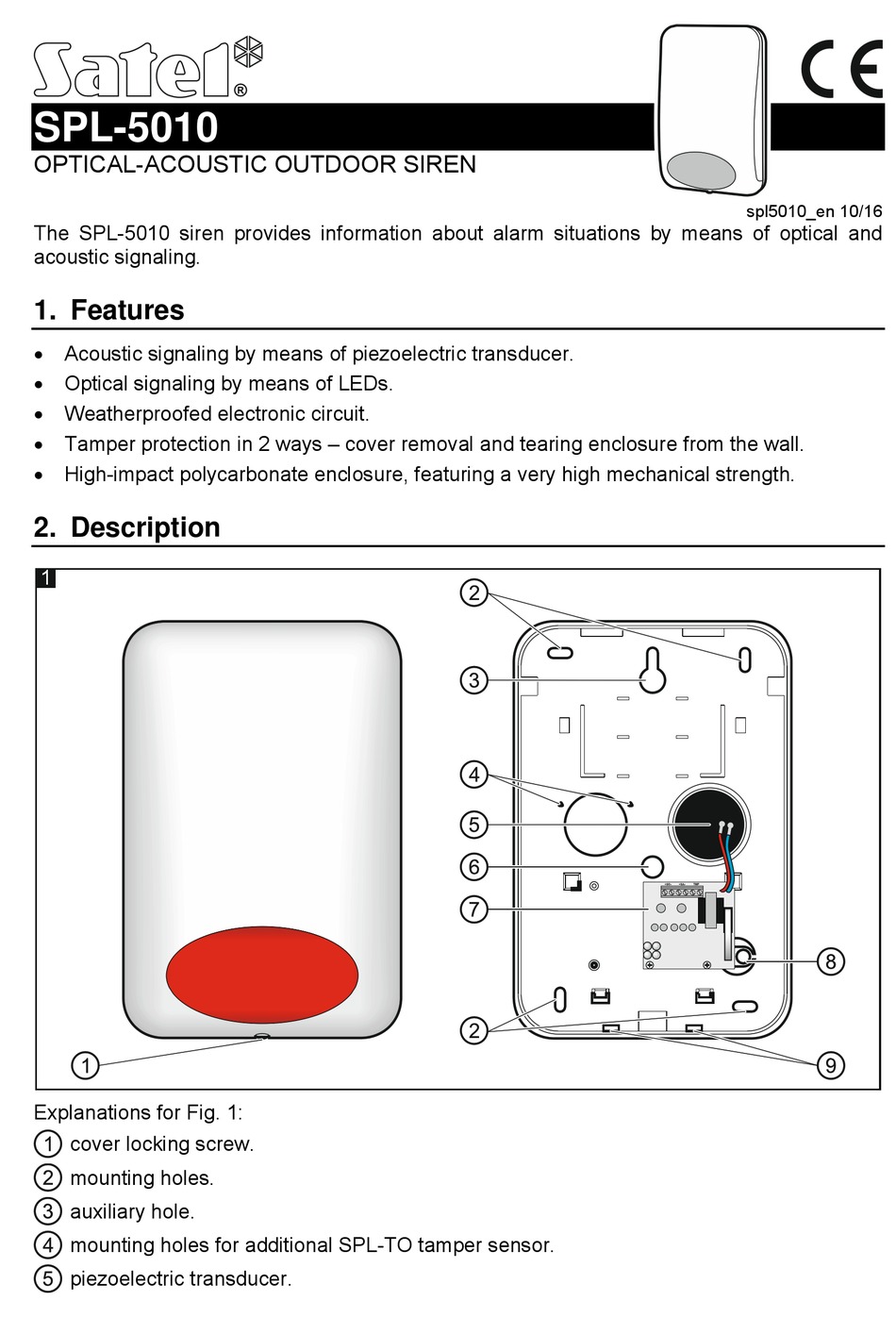

Explanations for Fig. 1:

cover locking screw.

mounting holes.

auxiliary hole.

mounting holes for additional SPL-TO tamper sensor.

piezoelectric transducer.

spl5010_en 10/16

Table of Contents

Do you have a question about the SPL-5010 and is the answer not in the manual?

Page 1 SPL-5010 OPTICAL-ACOUSTIC OUTDOOR SIREN spl5010_en 10/16 The SPL-5010 siren provides information about alarm situations by means of optical and acoustic signaling. 1. Features  Acoustic signaling by means of piezoelectric transducer.  Optical signaling by means of LEDs.  Weatherproofed electronic circuit.
Page 2 SPL-5010 SATEL opening for wires. electronic board. tamper element with mounting hole. water drain holes (do not plug). Terminals - input to trigger the optical signal. The signaling will be triggered after +12 V DC +SO- voltage is applied to terminal “+” and 0 V voltage (common ground) is applied to terminal “-“.
Page 3: Specifications
................200 mA Sound pressure level (at 1 m distance) ..............up to 120 dB Environmental class according to EN50130-5 ................ III Operating temperature range..................-35...+55 °C Dimensions ......................298x197x72 mm Weight..........................670 g The declaration of conformity may be consulted at www.satel.eu/ce...
Page 4 SPL-5010 SATEL SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
