Satel SPW-150 Manual

Indoor siren

SPW-150

INDOOR SIREN

spw150_en 07/17

The SPW-150 indoor siren is designed for operation in the intruder alarm systems.

1. Features

 Acoustic signaling by means of piezoelectric transducer.

 Three selectable tones.

 Tamper protection in 2 ways – cover removing and tearing enclosure from the wall.

 Battery back-up power supply.

 Alarm by main power failure.

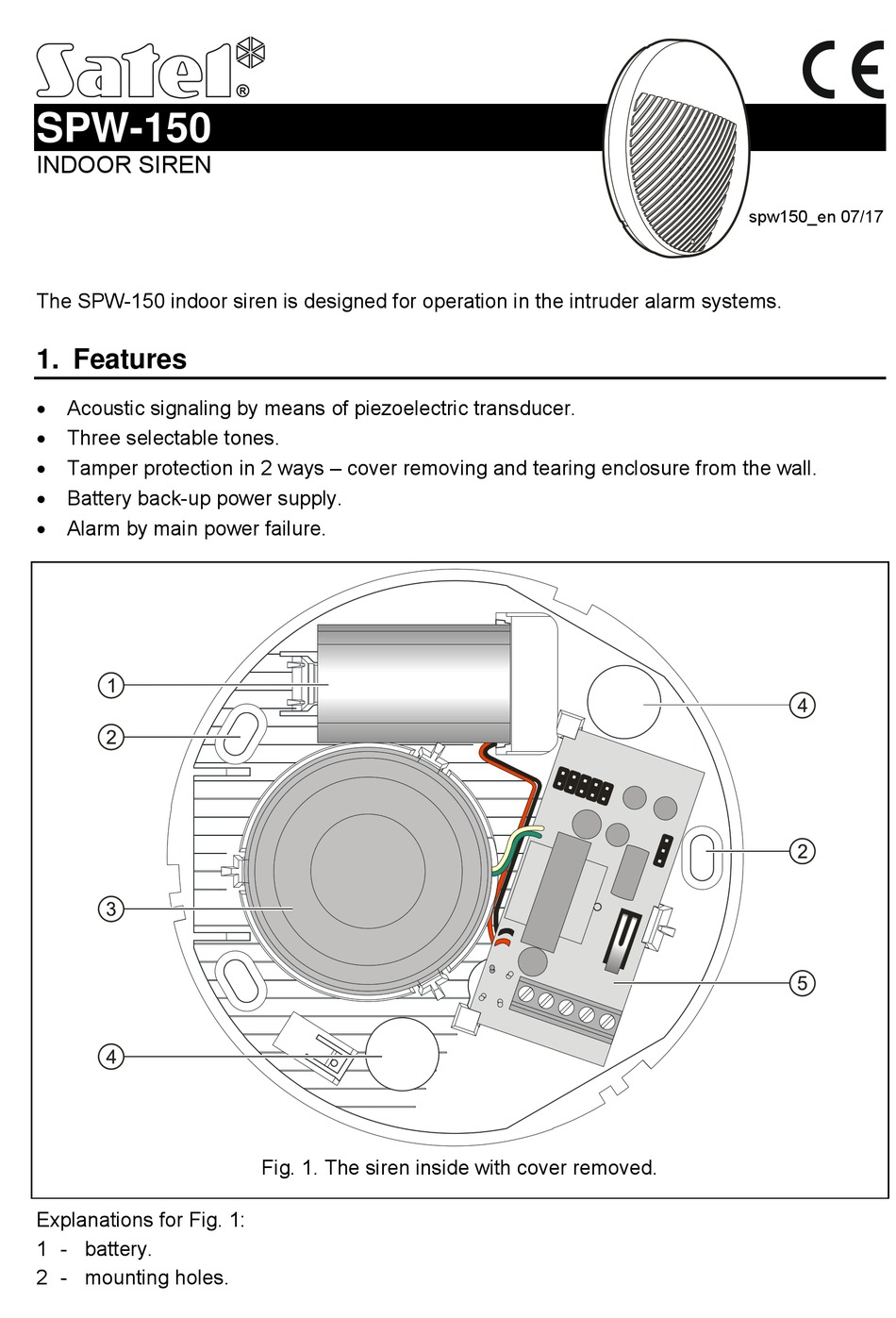

Fig. 1. The siren inside with cover removed.

Explanations for Fig. 1:

1 - battery.

2 - mounting holes.

Table of Contents

Do you have a question about the SPW-150 and is the answer not in the manual?

Page 1 SPW-150 INDOOR SIREN spw150_en 07/17 The SPW-150 indoor siren is designed for operation in the intruder alarm systems. 1. Features  Acoustic signaling by means of piezoelectric transducer.  Three selectable tones.  Tamper protection in 2 ways – cover removing and tearing enclosure from the wall.
Page 2: Description Of Operation
In this case the alarm will continue until the battery is discharged or external power supply is restored. In case of the alarm control panels manufactured by SATEL, it is recommended that the low- current reversed polarity output be used for control (the jumper in siren set to –D position).
Page 3 Fig. 4. The way of connecting the siren to the alarm control panel. OUTx – control panel output with power supply function. OUTy – control panel output for signaling control. Zx – control panel zone programmed as 24h tamper. Note: Reversed polarity must be programmed for SPW-150 siren control outputs in the SATEL made control panels.
Page 4: Specifications
The used batteries must not be discarded, but should be disposed of in accordance with the existing rules for environment protection. SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. + 48 58 320 94 00...
