Zone expander

Advertisement

The CA-64 E zone expander is designed for operation in the intruder alarm systems. It
can work in conjunction with the SATEL made CA-64, INTEGRA and VERSA alarm
control panels. It enables the alarm system to be expanded by additional 8 zones. The
expander zones can be programmed as NO, NC, EOL, 2EOL/NO or 2EOL/NC. The
value of resistors in EOL and 2EOL configurations is programmable. The expander
can support vibration and roller shutter motion detectors. This manual applies to the
expander with electronics version 2.1 and firmware version 2.0 (or newer).

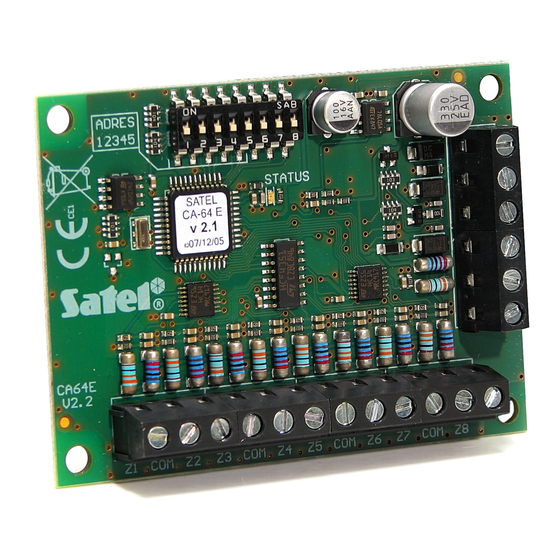

1. Description of electronics board

1

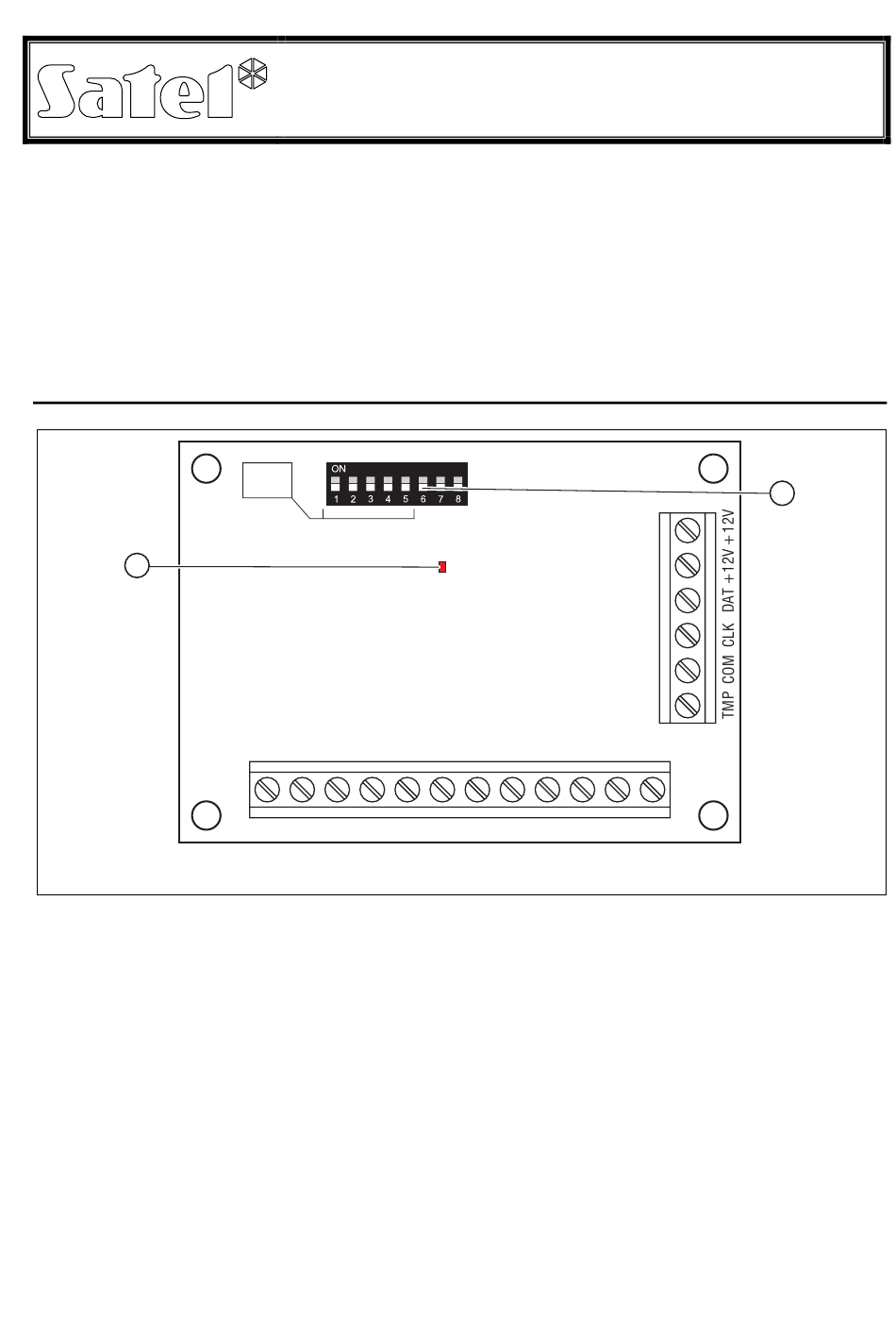

Fig. 1. Schematic view of the expander electronics board.
Explanations to Figure:
1 – LED STATUS to indicate the process of communication between control panel
and expander:
− LED is blinking – data exchange with the panel;
− LED is lit – no communication with the control panel.
2 – a set of DIP-switches for setting individual address of the module and defining
how the expander will be identified and, consequently, what functions will be
available (see DIP-
Description of the terminals:
Z1...Z8
– zones.
COM
– common ground.
TMP
– tamper input (if no tamper contact is connected to this terminal, it should
be shorted to common ground).
®
ADRES
12345
Z1 COM Z2
Z3
COM
).
SWITCHES
ZONE EXPANDER
CA-64 E
STATUS
Z4
Z5
COM
Z6
Z7
COM
ca64e_en 06/09
2
Z8
