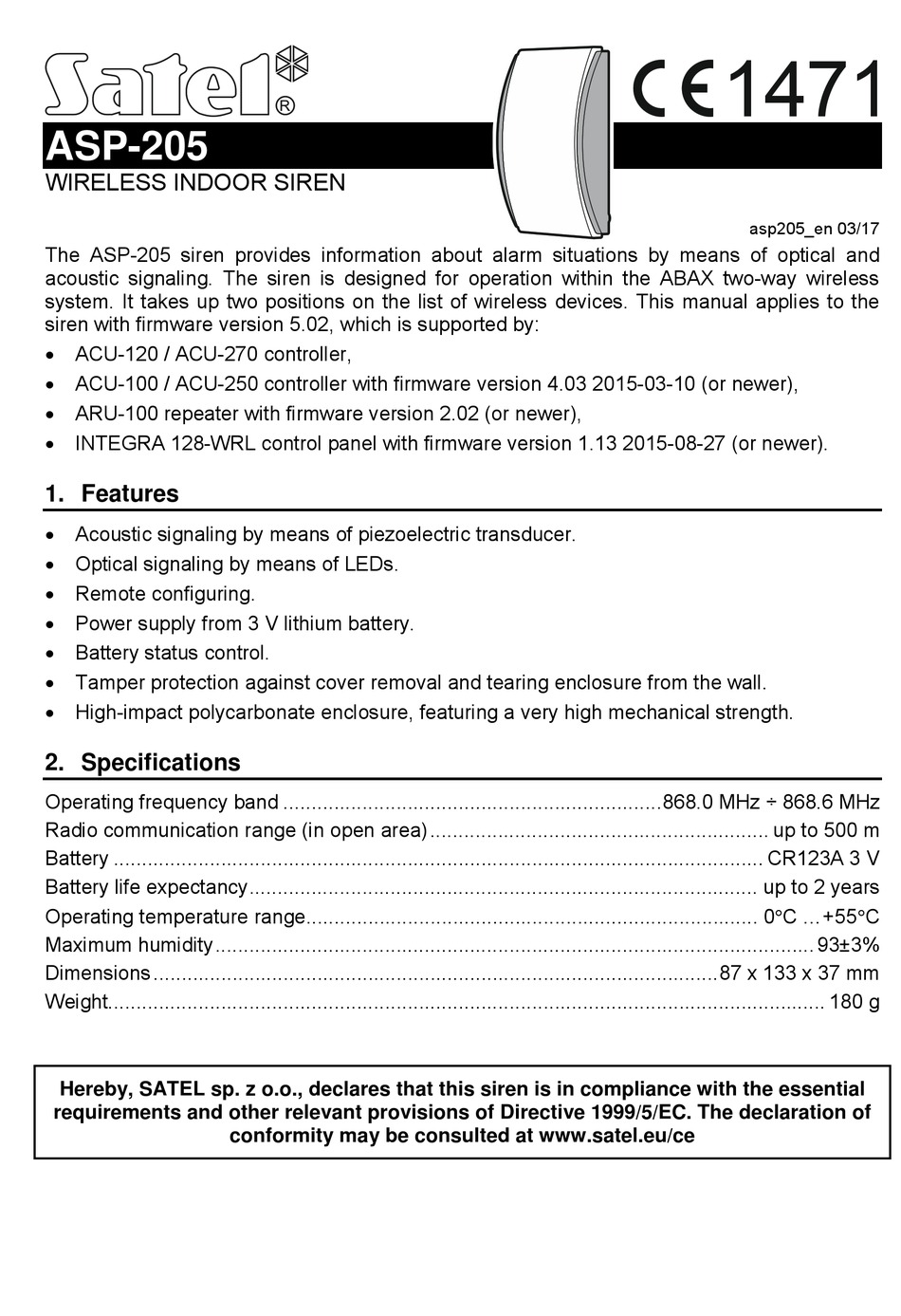

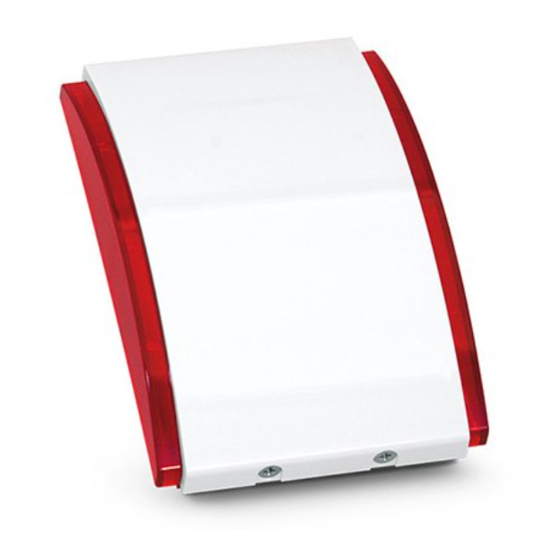

ASP-205
WIRELESS INDOOR SIREN
asp205_en 03/17
The ASP-205 siren provides information about alarm situations by means of optical and
acoustic signaling. The siren is designed for operation within the ABAX two-way wireless
system. It takes up two positions on the list of wireless devices. This manual applies to the
siren with firmware version 5.02, which is supported by:
 ACU-120 / ACU-270 controller,
 ACU-100 / ACU-250 controller with firmware version 4.03 2015-03-10 (or newer),
 ARU-100 repeater with firmware version 2.02 (or newer),
 INTEGRA 128-WRL control panel with firmware version 1.13 2015-08-27 (or newer).

1. Features

 Acoustic signaling by means of piezoelectric transducer.
 Optical signaling by means of LEDs.
 Remote configuring.
 Power supply from 3 V lithium battery.
 Battery status control.
 Tamper protection against cover removal and tearing enclosure from the wall.
 High-impact polycarbonate enclosure, featuring a very high mechanical strength.

2. Specifications

Operating frequency band ...................................................................868.0 MHz ÷ 868.6 MHz
Radio communication range (in open area) ............................................................ up to 500 m
Battery ................................................................................................................... CR123A 3 V
Battery life expectancy.......................................................................................... up to 2 years
Operating temperature range................................................................................ 0C ...+55C
Maximum humidity.......................................................................................................... 93±3%
Dimensions ....................................................................................................87 x 133 x 37 mm
Weight............................................................................................................................... 180 g
Hereby, SATEL sp. z o.o., declares that this siren is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. The declaration of
conformity may be consulted at www.satel.eu/ce

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASP-205 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Satel ASP-205

  • Page 1 Dimensions ....................87 x 133 x 37 mm Weight..........................180 g Hereby, SATEL sp. z o.o., declares that this siren is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at www.satel.eu/ce...
  • Page 2 ASP-205 SATEL 3. Description Explanations for Fig. 1: enclosure base. piezoelectric transducer. tamper switch (tamper alarm triggered if open). battery. cover locking screws. enclosure cover. Triggering the alarm signaling The alarm signaling is triggered:  on receiving the start signaling command (this command is sent only during the polling) –...
  • Page 3 SATEL ASP-205  when the ABAX system is running in test mode,  when the control panel is running in service mode. The command to block/unblock the signaling is connected with starting/ending the test mode or the service mode is sent during the polling.
  • Page 4 15. Configure the siren (e.g. define the way of signaling and maximum duration of signaling). For detailed information on how to configure the siren, refer to the controller / control panel manual. SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
