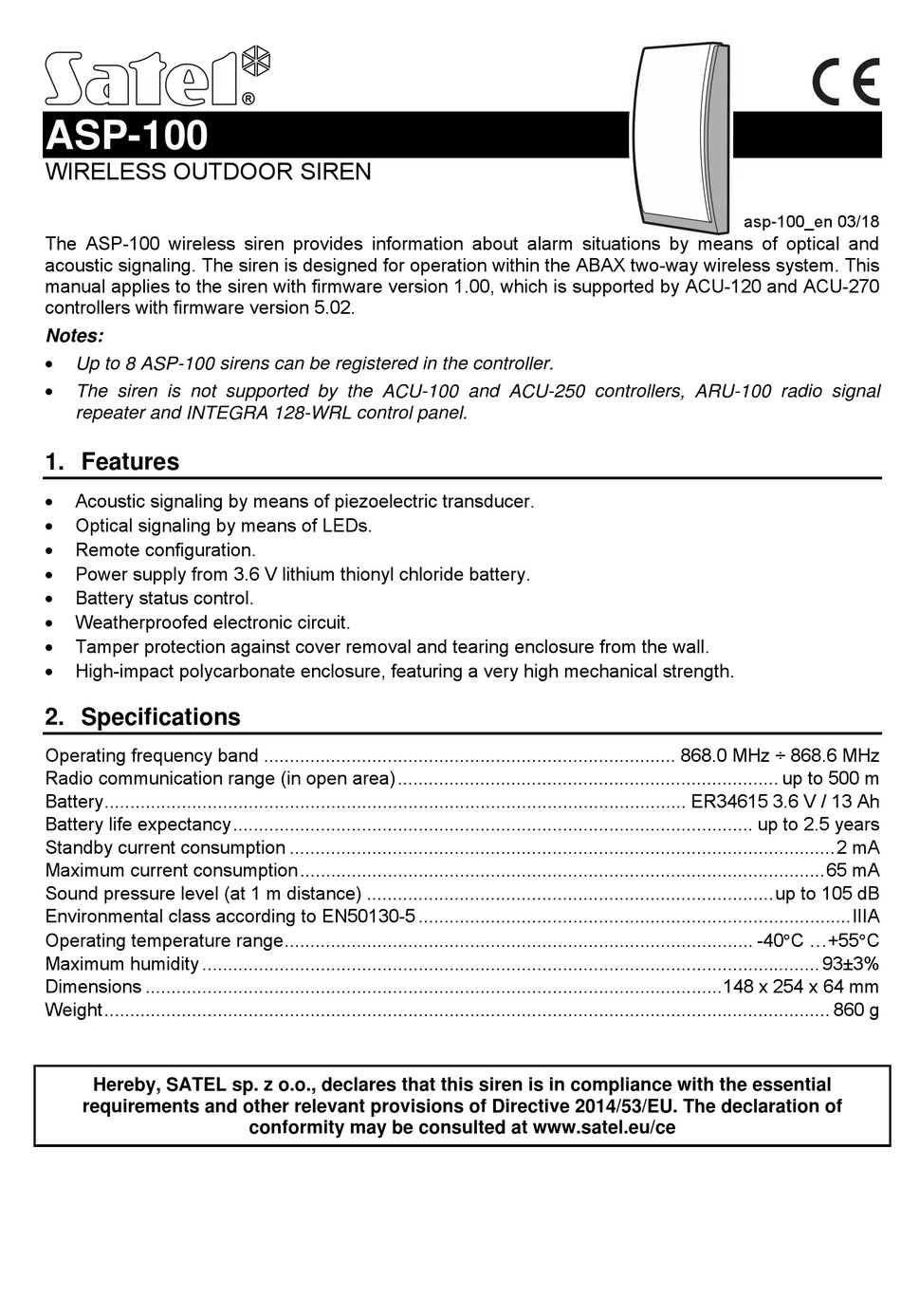

ASP-100

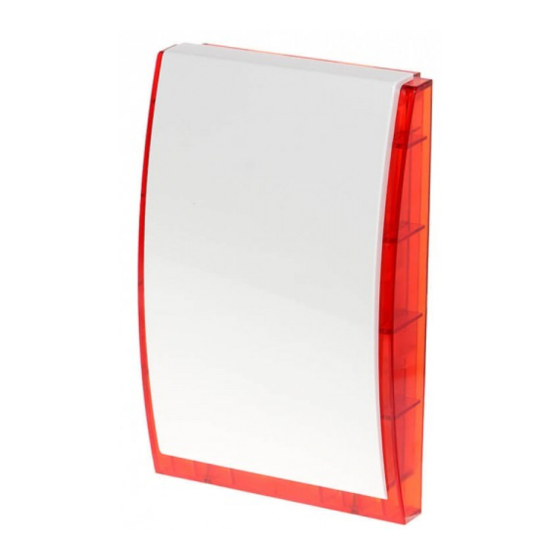

WIRELESS OUTDOOR SIREN
The ASP-100 wireless siren provides information about alarm situations by means of optical and
acoustic signaling. The siren is designed for operation within the ABAX two-way wireless system. This
manual applies to the siren with firmware version 1.00, which is supported by ACU-120 and ACU-270
controllers with firmware version 5.02.
Notes:

Up to 8 ASP-100 sirens can be registered in the controller.

The siren is not supported by the ACU-100 and ACU-250 controllers, ARU-100 radio signal
repeater and INTEGRA 128-WRL control panel.

1. Features


Acoustic signaling by means of piezoelectric transducer.

Optical signaling by means of LEDs.

Remote configuration.

Power Supply from 3.6 V lithium thionyl chloride battery.

Battery status control.

Weatherproofed electronic circuit.

Tamper protection against cover removal and tearing enclosure from the wall.

High-impact polycarbonate enclosure, featuring a very high mechanical strength.

2. Specifications

Operating frequency band ................................................................................ 868.0 MHz ÷ 868.6 MHz
Radio communication range (in open area).......................................................................... up to 500 m
Battery................................................................................................................. ER34615 3.6 V / 13 Ah
Battery life expectancy..................................................................................................... up to 2.5 years
Standby current consumption ..........................................................................................................2 mA
Maximum current consumption......................................................................................................65 mA
Sound pressure level (at 1 m distance) ...............................................................................up to 105 dB
Environmental class according to EN50130-5 ....................................................................................IIIA
Operating temperature range........................................................................................... -40C ...+55C
Maximum humidity ........................................................................................................................ 93±3%
Dimensions ................................................................................................................148 x 254 x 64 mm
Weight............................................................................................................................................. 860 g
Hereby, SATEL sp. z o.o., declares that this siren is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU. The declaration of
conformity may be consulted at www.satel.eu/ce
asp-100_en 03/18
