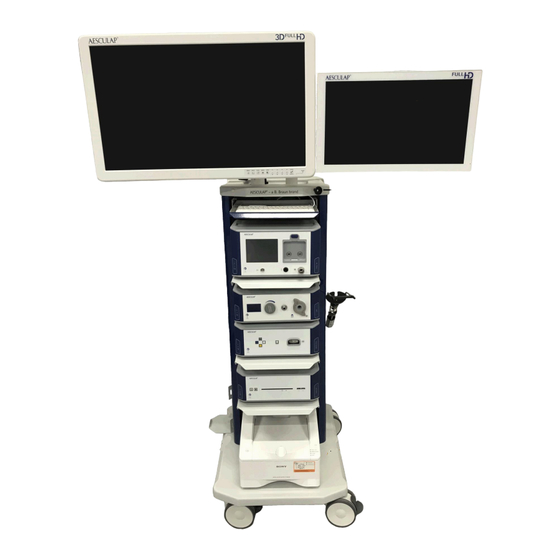

- Page 1 AESCULAP 3D EinsteinVision ® ® 3.0 Quick System Guide 32” 3D 21” 2D Monitor Monitor 2D Camera Holder Keyboard 50L Insufflator 3D Scope / Camera Holder LED Light Source 3D / 2D CCU Digital Documentation Gas Cylinder Storage A4 Thermal Sublimation Printer...
-
Page 2: System Setup
AESCULAP 3D EinsteinVision ® ® 3.0 System Set Up Pre Surgery Preparation • Switch on central power supply, at back of the stack • Ensure individual component switches are on (bottom left corner of each unit) : - Insufflator, Light Source, CCU, Digital Documentation (On status is indicated by green light and user interfaces will be illuminated, or display menu options) •... - Page 3 AESCULAP 3D EinsteinVision ® ® 3.0 Flow 50 Insufflator System Settings Active Smoke Evacuation Actual Optional Smoke Evacuation Filter Housing Actual Volume & Reset Pressure & Flow Smoke Evacuation Insufflation Heated Gas Pre-sets Footswitch Gas Outlet Element (Optional) (Optional) On / Off Start / Stop Insufflation •...
-
Page 4: Led Light Source
AESCULAP 3D EinsteinVision ® ® 3.0 LED Light Source Optional Light Light Lead Tester Aperture Display Window On / Standby Increase / Decrease (Push) (Rotate) On / Off Push light lead firmly into light aperture Press light source control to (Do not rotate cable release) activate / Deactivate light output Rotate anti-clockwise to decrease light output... - Page 5 AESCULAP 3D EinsteinVision ® ® 3.0 2D/3DCamera Control Unit (CCU) White Balance Camera Port Camera Controls Camera Control Buttons replicate the remote buttons on the camera heads Buttons can be programmed in camera profile settings CCU buttons always replicate, exactly the same configuration of the respective camera heads Camera White Balance can be performed from camera...
- Page 6 AESCULAP 3D EinsteinVision ® ® 3.0 2D/3DCamera Heads 3D Integrated Camera Head : Button Configuration 2D Camera Head : Button Configuration...
- Page 7 AESCULAP 3D EinsteinVision ® ® 3.0 32” 3D Monitor • 32” monitor delivers 3D images and 2D images, according to the signal sent to it, without any need to change any settings on the monitor itself • There is no need to make any changes to the monitor •...
