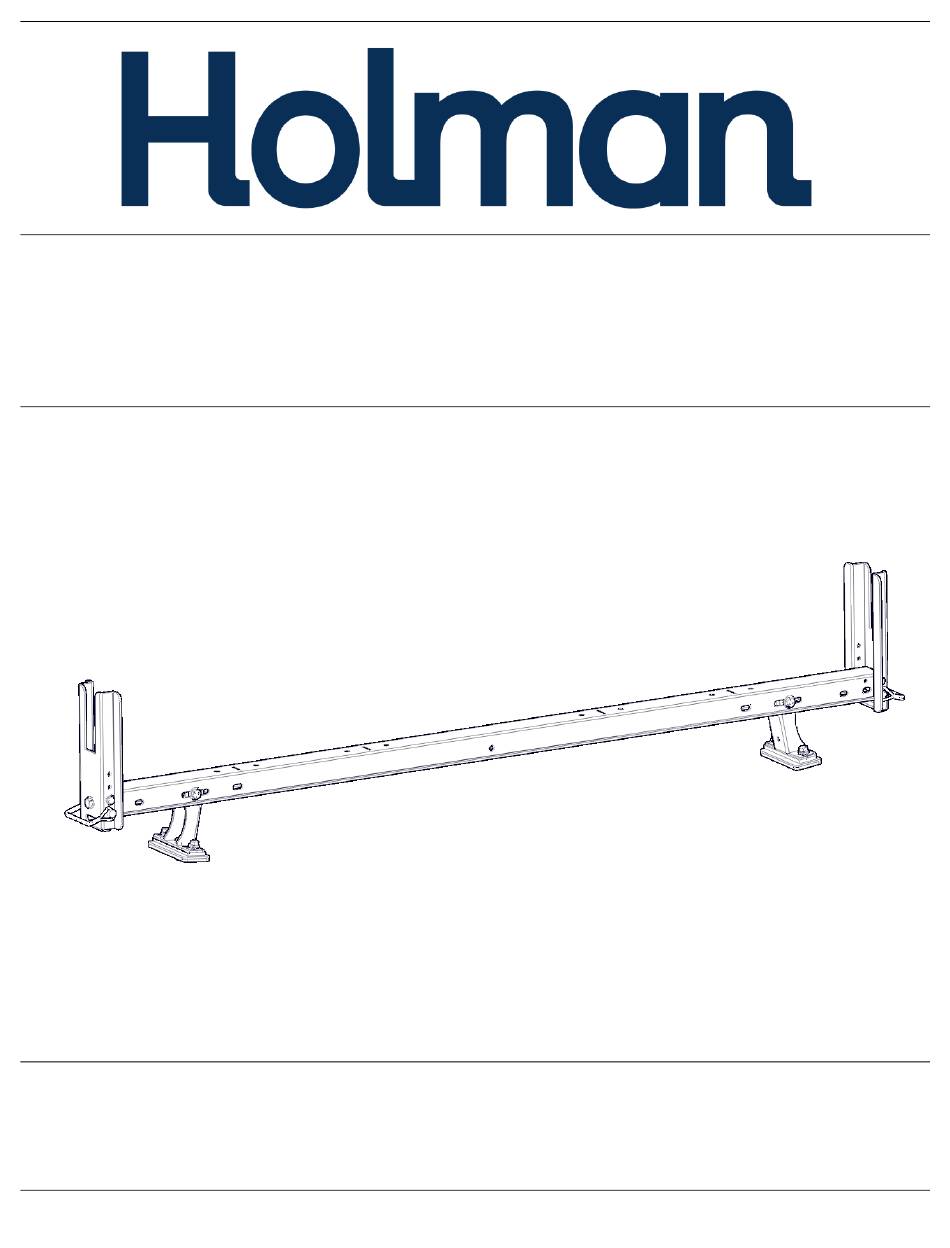

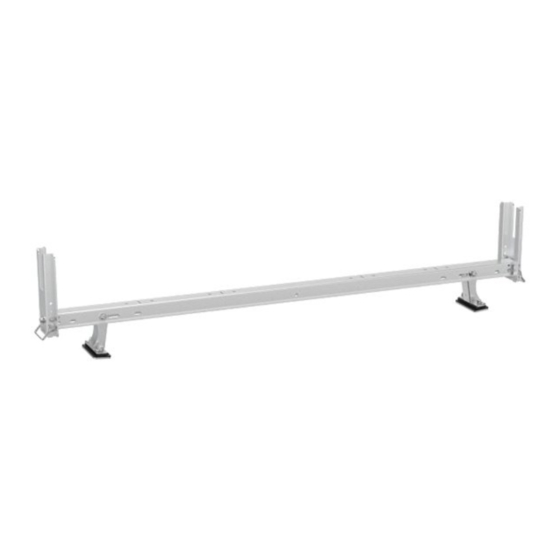

- Page 1 Instruction Guide 4A822 Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20201105R3 DATE: ______________...
-
Page 2: Table Of Contents
10mm Socket and Wrench Table of Contents Before You Begin ........................1 Parts ............................2 Assembly Hardware (18-4A822-A) ..................2 Step 1 – Adjustment of Uprights ................... 3 Step 2 – Assembly of Foot ..................... 4 Installation Instructions Installation Hardware (To Scale) (18-4A821-M) ..............5 Transit Connect ........................ -
Page 3: Parts
Instructions – 4A822 Parts Assembly Hardware (18-4A822-A) For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2... -
Page 4: Step 1 - Adjustment Of Uprights
Instructions – 4A822 Step 1 – Adjustment of Uprights • The uprights at each end of the crossbar come preinstalled. • If van upright is not at desired height, remove bolts and adjust accordingly. Be sure to have one hole open below where van upright is bolted to cross member. -
Page 5: Step 2 - Assembly Of Foot
Instructions – 4A822 Step 2 – Assembly of Foot • Depending on your vehicle, the foot will mount in different slots. • Use a 3/8" x 2-3/4" hex head bolt, two 3/8" flat washers, and a 3/8" lock nut to bolt foot (B) to cross member (A). -
Page 6: Installation Instructions
Instructions – 4A822 Installation Instructions • Find vehicle below, follow instructions from there. Installation Hardware (18-4A822-M) For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 5... - Page 7 Instructions – 4A822 Installation Hardware (Continued) For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 6...
-
Page 8: Transit Connect
Instructions – 4A822 Transit Connect Step 1 • Locate 2 mounting locations in roof for the crossbar to be installed. • Remove plug from desired mounting locations in roof. Step 2 • Bolt through the mount foot (B) into the exposed holes in roof using one M8 x 30mm hex head, one 5/16”... -
Page 9: Transit
Instructions – 4A822 Transit Step 1 • Locate 2 mounting locations on roof for the crossbar to be installed. • Remove plug from desired mounting locations in roof. Step 2 • Bolt through the mount foot (B) into the exposed holes in roof using one M8 x 30mm hex head, one 5/16”... -
Page 10: Promaster City
Instructions – 4A822 ProMaster City Step 1 • Locate 2 mounting locations on roof for the crossbar to be installed. • Remove plug from desired mounting locations in roof. Step 2 • Bolt through the mount foot (B) into the exposed holes in roof using one M6 x 22mm hex head, one 1/4”... -
Page 11: Nv200/Chevy City Express
Instructions – 4A822 NV200/Chevy City Express Step 1 • Locate 2 mounting locations on roof for the crossbar to be installed. • Remove plug from desired mounting locations in roof. Step 2 • Bolt through mount foot (B) into the exposed holes in roof using one M8 x 30mm hex head, one 5/16”... -
Page 12: Metris
Instructions – 4A822 Metris Step 1 • Locate 2 mounting locations on roof for the crossbar to be installed. • Remove plug from desired mounting locations in roof. Step 2 • Bolt through the mount foot (B) into the exposed holes in roof using one M6 x 22mm hex head, one 1/4”... - Page 13 Instructions – 4A822 Step 1 • Locate 2 mounting locations on roof for the crossbar to be installed. Step 2 • Install M8 U-Nuts as shown. Step 3 • Bolt through the mount foot (B) into the previously installed M8 U-nuts using M8 x 20mm hex head, 5/16”...
