Micromeritics 3Flex Service Manual page 11

3Flex Service Manual

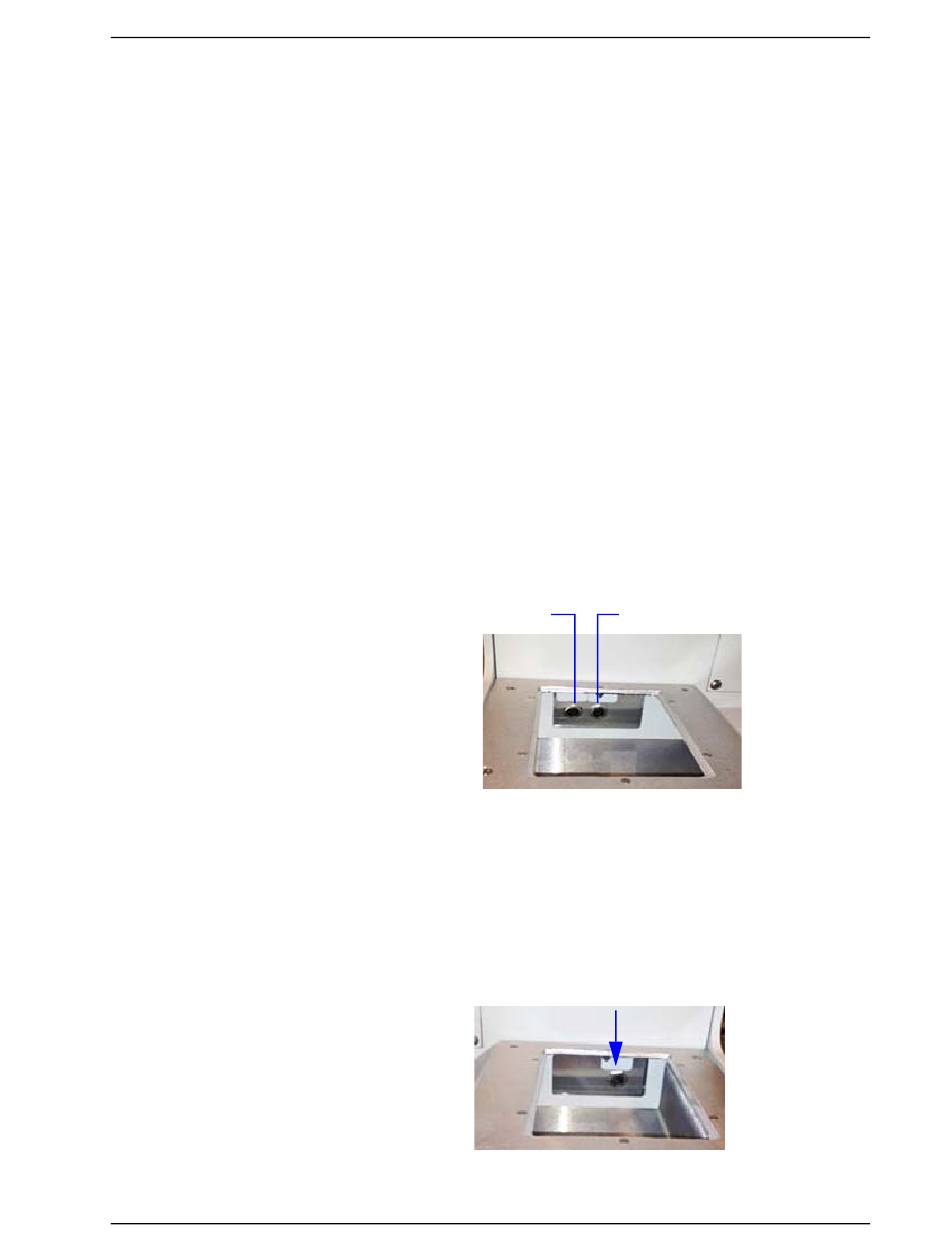

Elevator
Elevator reset
Mantle/Furnace
connector
Dewar
Sample Tubes
Power indicator
Access panels
Left side\
Right side
Aug 2013
Raises automatically when the analysis is started and lowers
automatically upon completion.
Resets the elevator in case of failure. Elevator Circuit Breaker Open
displays on the instrument schematic if the elevator requires a reset.
For connecting a heatring mantle or furnace.
The Dewar has a capacity of 3.2 L and life of 70 m hrs.
Constructed of borosilicate glass to withstand the temperatures reached
inside the Dewar or during degassing.
Illuminated when instrument is on.
Provides access to the mantle, heater, and transformer circuit breakers.
Contains the manifold heater and heating mantle breakers.
Manifold Heater
• The manifold heater breaker is 10 amps and plugs into J-22 on the
Power Distribution PCB.
• The heating mantle breaker is 4 amps and plugs into J-23 on the
Power Distribution PCB.
Contains the turbo pump breaker. It is 4 amps and plugs into J-16 on the
Power Distribution PCB.
Instrument Components
Heating Mantle
