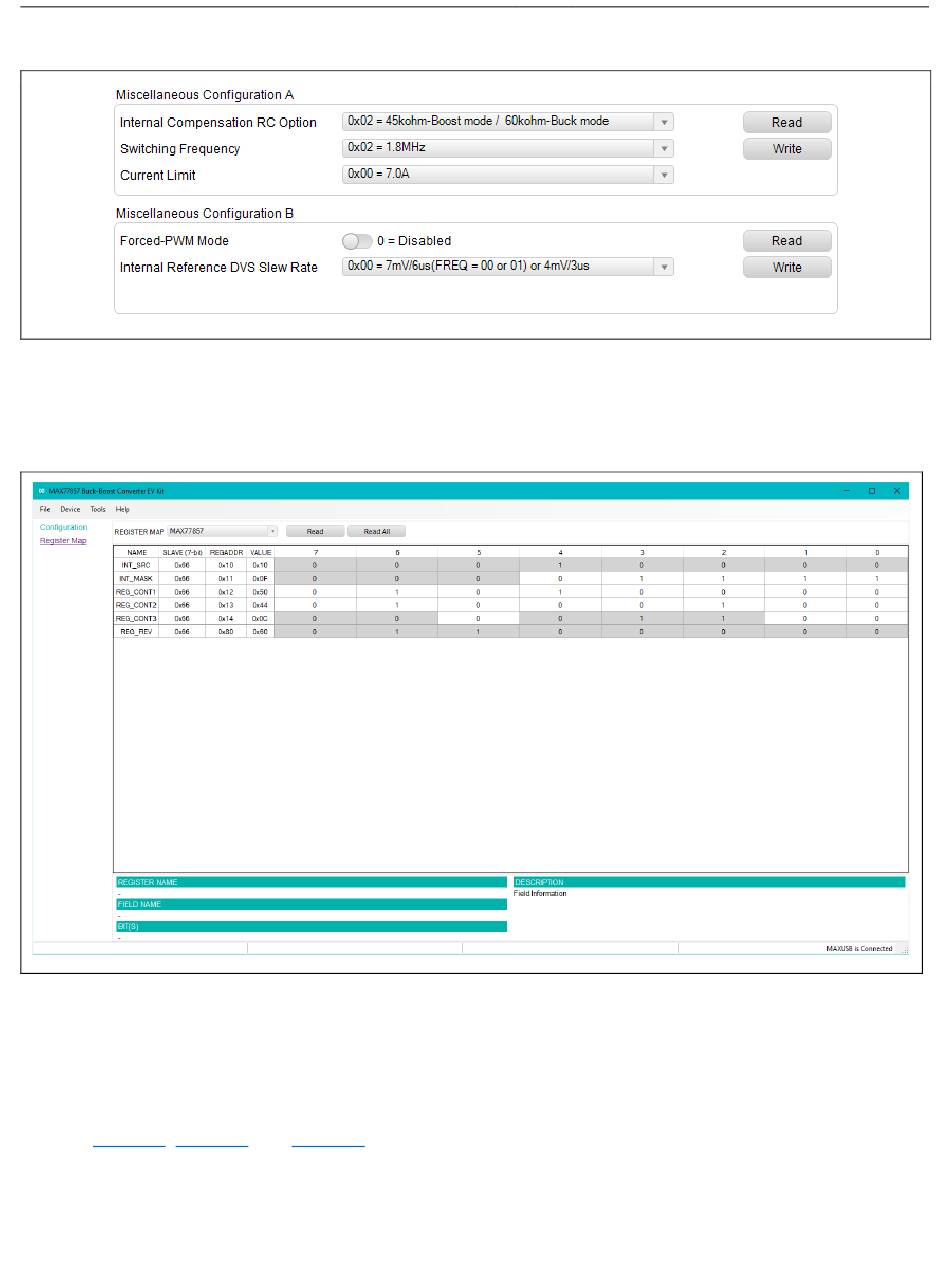

Figure 13. Configuration Tab—Miscellaneous Configuration Sections
Register Map
The Register Map tab provides an overview of all the MAX77857 registers and the values currently stored on them.
Clicking on an individual bit shows the name and description of the specific bitfield.
Figure 14. EV Kit GUI Software Register Map Tab
Layout Guideline
Careful circuit board layout is critical to achieving low switching power losses and clean, stable operation. The EV kit also
serves as a Maxim recommended layout of the MAX77857. If POK or fault interrupt functionality is desired, then high-
density interconnect (HDI) PCB is required to route to the POKB/INTB pin. Otherwise, HDI PCB is recommended but not
required.
Figure
15,
Figure
16, and
Figure 17
show examples of non-HDI and HDI PCB layouts for the MAX77857 WLP
package. Use the provided layout files for guidance when designing with the IC. The IC data sheet contains a list of useful
tips and guidelines for achieving the best possible layout. They are repeated here for convenience:
