Line Crossing

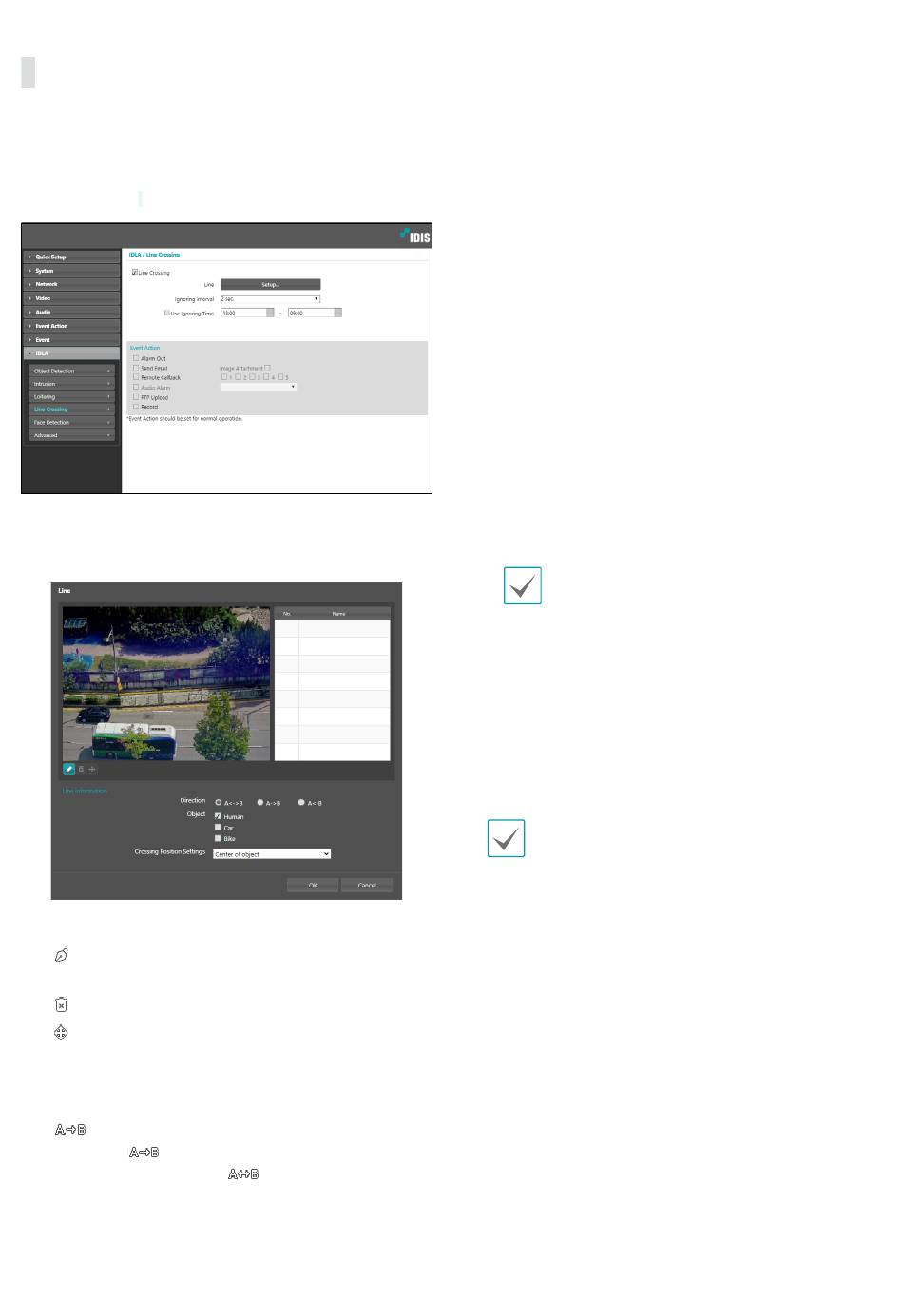

Select Line Crossing and configure line crossing
settings. With line crossing event enabled, an event
is considered when the set object in the set line and
.
direction passes
• Line: Click Setup and define the line and the
conditions for which each line crossing event will
occur up to 8 conditions.
- Name: Set the name of the area.
(Draw): Set the area on the screen in the form of
-
a polygon.
(Erase): Select the polygon to erase.
-
(Move): Move the position of the polygon on the
-
screen or the position of the polygon point.
- Direction: Select the direction in which the object
to be considered as an event crosses on each line.
is when a movement is made from A to B on a
line basis, is when a movement is made from A
to B on a line basis, and
made in both directions.
- Object: Select the object (Human, Car, Bike) to
detect in the area.
38
is when a movement is
- Crossing Position Settings: Select the position
of the object where the line event occurs(Center
of object, Upper side of object, Lower side of
object).
• Ignore Interval: With Line Crossing Ignoring Interval
configured, no event log or notification is generated
for line crossing detected during a period of time
following a line crossing event.
• Use Ignoring Time: Define the event ignoring time.
Line crossing detections taking place during the
defined time range will not be assumed as events.
• Event Action: Select a line crossing event alert action.
- Alarm Out: Select if you wish to generate an alarm
out.
- Send Email: Select if you wish to send an email.
Select the Image Attachment option to attach a
.jpg image of the event detected to the email.
- Remote Callback: Select this option to send a
message to a remote system and then select which
system to send the message to.
• Not supported from the IDIS Web program.
• The camera must be registered to the remote
system in order to use the Remote Callback
feature.
- Audio Alarm: Select this option to generate an
audio alert and then choose an audio file.
- FTP Upload: Select this option if you wish to
upload images to the FTP server.
- Record: Select this option to record video.
• Event Action settings must be configured
correctly in order to perform event actions.
• Line crossing works normally only when the
distance between objects is sufficiently far apart.
