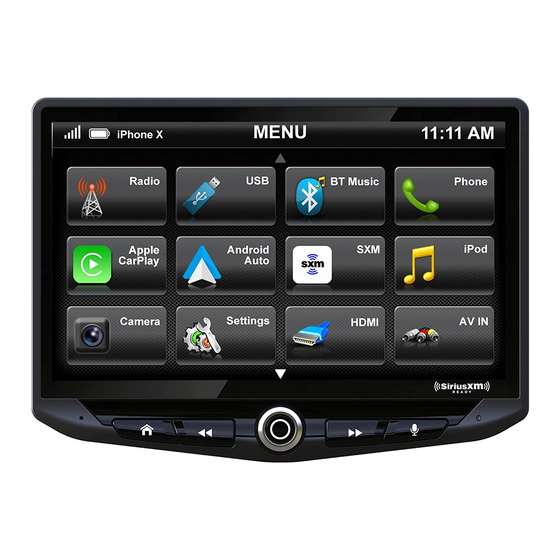

2008-2011 chevrolet silverado / gmc sierra 10-inch modular multimedia system
Hide thumbs Also See for Heigh10:

Advertisement

Table of Contents

STH10GMFST
2008-2011
Chevrolet Silverado / GMC Sierra
10-Inch Modular Multimedia System

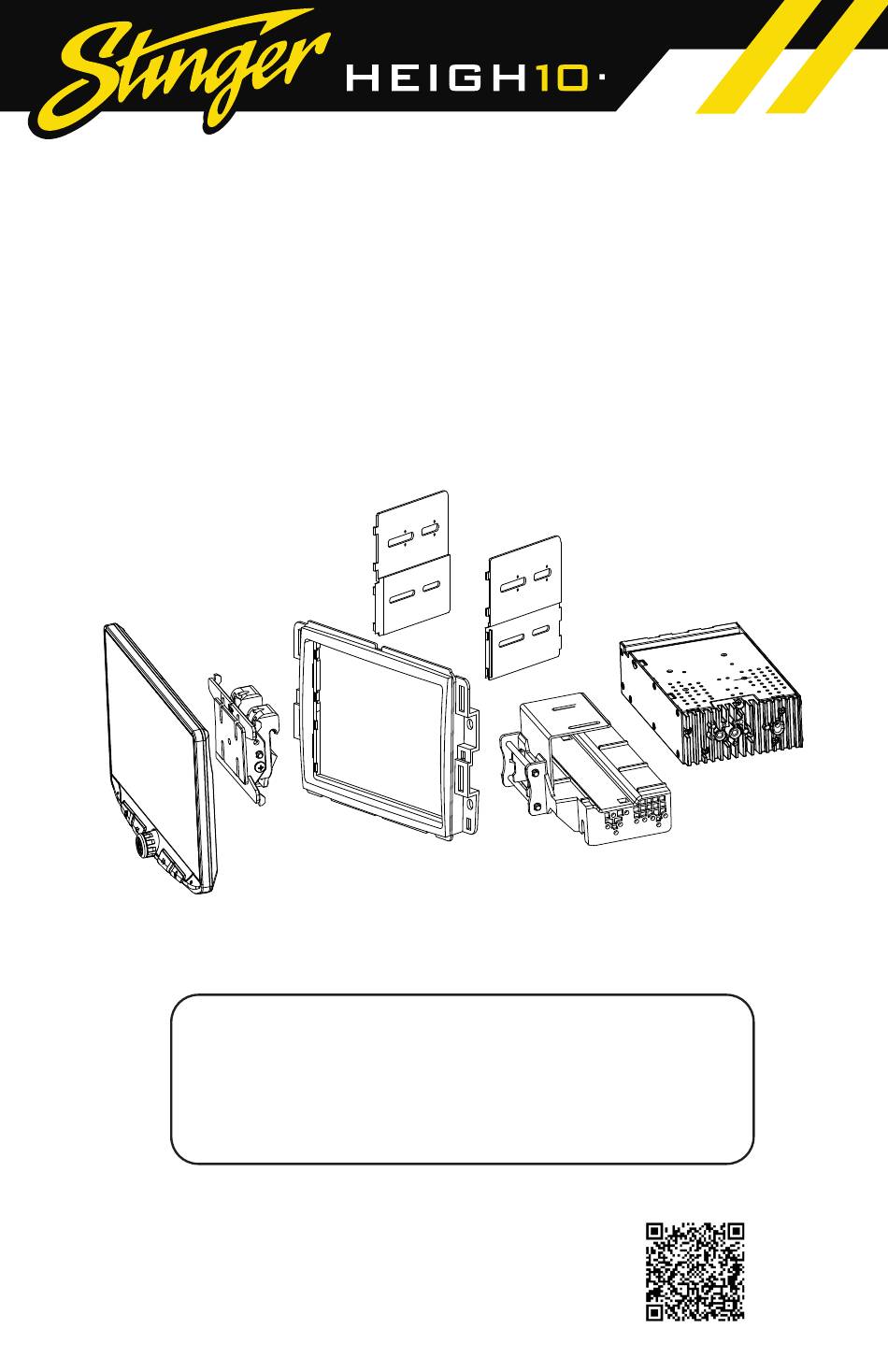

Installation Guide
NOTE! Read this installation guide thoroughly before disassembling
the vehicle or making wire connections. Installation of this product
requires technical skill, experience, and specialized tools.
If you feel uncomfortable performing the steps outlined in this
manual, please have this product professionally installed by an
authorized Stinger or Phoenix Gold Dealer.
A video installation guide is available at:
https://stingerelectronics.com/installvideos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heigh10 and is the answer not in the manual?

Questions and answers

Related Manuals for Stinger Heigh10

Summary of Contents for Stinger Heigh10

  • Page 1 If you feel uncomfortable performing the steps outlined in this manual, please have this product professionally installed by an authorized Stinger or Phoenix Gold Dealer. A video installation guide is available at: https://stingerelectronics.com/installvideos...

  • Page 2: Table Of Contents

    Contents Kit Components............... 3 Vehicle Disassembly............4 Radio & Display Assembly..........6 Mounting Kit Assembly............ 8 Wire Connections............10 Harness Connections.............12 USB Extension.............. 15 Vehicle Installation............16 Function Test..............18 Vehicle Reassembly............19 PRECAUTIONS Disconnect the vehicle's negative battery cable before making any wire connections. Protect all vehicle surfaces with tape or plastic.

  • Page 3: Kit Components

    Kit Components NOTE! This installation guide outlines basic installation. For any additional features, adding a rear camera or amplifier, please refer to the additional instructions included with each component. Stinger HEIGH10 RP5-GM31 (UN1810) Radio Replacement GMK318 10” Multimedia System Interface...

  • Page 4: Vehicle Disassembly

    Vehicle Disassembly Models With Radio Mounted In Upper Dash 1. Starting along the top, remove the trim panel around the radio and climate controls using a plastic trim tool to release the retaining clips. Note: The bottom of the panel is tucked behind the lower panel.
  • Page 5 Vehicle Disassembly Models With Radio Mounted In Lower Dash 1. Remove the trim panel around the radio and climate controls using a plastic trim tool to release the retaining clips. 2. Remove the four 7mm screws on each side. 3. Starting at the bottom: A.

  • Page 6: Radio & Display Assembly

    Radio & Display Assembly Parts Needed: From the HEIGH10 Box: HEIGH10 Display Radio Module Plastic Mounting Bracket Metal Mounting Bracket Display Mounting Clamp M4 x 6 Screws (4) M4 x 12 Screws (4) M5 x 10 Screws (2) NOTE! The Display Mounting Clamp is shipped connected to the Plastic Mounting Bracket.
  • Page 7 Radio & Display Assembly Start by attaching the Metal Bracket to the Plastic Mounting Bracket using two M4 X 6 screws (1). Slide the Radio Module in between and align the two holes with the metal bracket. Attach using two M4 X 6 screws (2). M4 X 6 Radio Module...

  • Page 8: Mounting Kit Assembly

    Mounting Kit Assembly From the HEIGH10 Box: #10 X 3/8 M5 X 10 Screws (4) Screws (4) GMK318 Mounting Kit 1. Align the pins on the slotted spacers with the holes on the inside of the side brackets and snap into place.
  • Page 9 Mounting Kit Assembly 3. Slide the HEIGH10 radio assembly into the mounting kit from the back.    Plastic Mounting Bracket on bottom M5 x 10 (4X) Upper Holes Both Sides 10 x 3/8 (4X) Lower Holes Both Sides 4.

  • Page 10: Wire Connections

    10 Pin Multi Camera Harness (Optional)  6 Pin SWI*/IR Harness (Optional)  * Refer to pages 18-20 in the HEIGH10 Installation Guide for harness names and illustrations From the RP5-GM31 Box: Radio Power Audio Harness (RP5-RADPWRAUDIO)  14/16 Pin Vehicle Interface Harness (OS-GMLAN29 V2) ...
  • Page 11 Wire Connections FIG A White > Front L+ < White White/Black > Front L- < White/Black Gray > Front R+ < Gray HEIGH10 Gray/Black > Front R- < Gray/Black 16 Pin Power/Speaker RP5-RADPWRAUDIO Green > Rear L+ < Green Harness 22 Pin Radio Harness Green/Black >...

  • Page 12: Harness Connections

    Harness Connections Parts Needed:  1-3 Harnesses from Page 11  Radio/Mounting Kit Assembly from Page 9 From the HEIGH10 Box: 8 Pin Display Power Harness  LVDS Display Video Cable (Blue USB type)  24 Pin A/V Harness ...
  • Page 13 Harness Connections FIG B Back of Radio Module. Mounting Kit and Plastic Bracket not shown SPEED Antenna adapter will be plugged into the vehicle’s antenna cable Display cables will be plugged into the back of the display The two vehicle plugs will be connected to the matching two plugs removed from the factory radio...
  • Page 14 Referring to FIG C below, make the following connections: 1. Plug in the CMX Chime Module 2. Plug in the HEIGH10 24 Pin AV Harness 3. Connect the optional XM Audio Red & White RCA cables from the RP5 to the AUX IN RCA cables on the 24 Pin A/V Harness 4.

  • Page 15: Usb Extension

    USB port. SSUSB2 is designed to extend the USB ports on the back of the HEIGH10 to where they are accessible once the radio is installed. For this installation, the factory 12V power outlet will be replaced with the SSUSB2.

  • Page 16: Vehicle Installation

    Vehicle Installation 1. Inside the vehicle with the HEIGH10 radio/mounting kit assembly, the display and GPS Antenna, connect the following: If equipped, plug in the factory camera / SUB plug into the matching factory radio plug Plug the two factory...
  • Page 17 Vehicle Installation 2. Plug in the GPS Antenna and place the antenna on top of the radio module. 3. After all connections are complete, bundle and secure excess wire and cables in the area behind the radio and climate controls. The Chime Module should be placed in a location that will be audible when the radio is installed.

  • Page 18: Function Test

    It’s recommended to check all functions and features before reassembling the vehicle. Reconnect the Negative Battery Cable if removed. The HEIGH10 User Guide can be found at: https://stingerelectronics.com/products/heigh10 There is a TROUBLE SHOOTING section at the end of the User Guide.

  • Page 19: Vehicle Reassembly

    Vehicle Reassembly 1. Remove the display (Page 6) and unplug display cables. 2. Reinstall the climate controls with two 7mm screws. 3. Lower Radio Models: Reinstall the lower switch/power outlet panel with two 7mm screws. 4. Install the radio/climate control trim panel. Upper Radio Models: Plug in the factory power receptacle and/or switches on radio trim panel.
  • Page 20 AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use and with all State and Federal laws. STINGER provides instructions and safety warnings with respect to this product and disclaims all liability for any use not in conjunction with those instructions or other misuse of its product.
