Installers!
Download the SRK-RAM13H Installation Manual:
1
https://catalog.pac-audio.com/catalog/radio-replacement/srk-ram13h or use the
QR code. The manual includes step-by-step instructions and color photos of vehicle
disassembly, radio and vehicle connections, radio mounting and vehicle installation.
2
Check/Update the HEIGH10 (UN1810) System Firmware:
Once installed and powered-up, the System Firmware needs to be up-to-date and include the latest
PAC Integration APK. Step-by-step instructions for checking and updating the System Firmware can
be found on Page 4 of this Installer Set-Up Guide.
Vehicle Specific User Guide:
3
The included postcard should be given to the end user, but you may want to look over the User Guide
to become familiar with all the vehicle specific user features and settings.
Factory Amplified Systems:
4
If the truck is equipped with a factory amplified sound system, follow the tuning steps on Page 15.
Failure to correctly set up premium audio will result in not-so premium sound!
Need Help?
5
If you have followed 1-4 above, and still have questions, reach out to our Technical Support Team:
Phone: 727-592-5991
Email: support@aampglobal.com
Chat: stingerelectronics.com

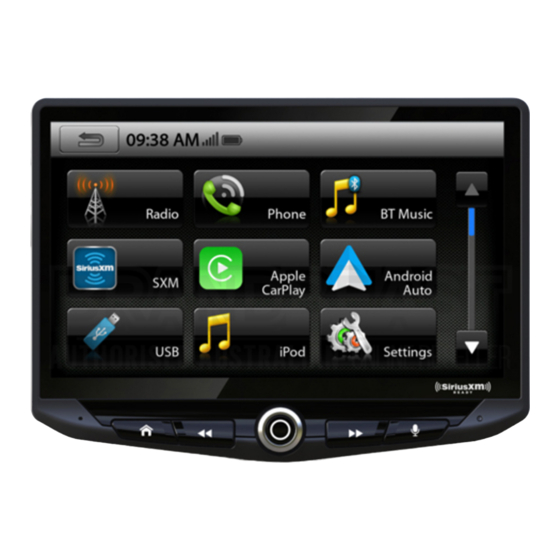

HEIGH10 (UN1810) / SRK-RAM13H Installer Set-Up Guide
This is a supplemental set-up guide for the UN1810 when integrated with the SRK-RAM13H RAM Truck kit. This guide
covers specific intergrated features and installer settings. Information regarding the general operation, features and
settings of the HEIGH10 (UN1810) can be found in the Vehicle Specific User Guide.
Accessing Installer Settings...............................................2
Installer Settings.................................................................3
Advanced Vehicle Settings.................................................3
Checking System Firmware Version.................................4
Updating Firmware............................................................5
Checking PAC Integration APK Version............................8
Updating PAC Integration APK.........................................9
Default Settings.................................................................9
PAC SWC Settings ...........................................................10
Camera Settings...............................................................11
Vehicle Audio Settings.......................................................14
Factory Amplifed Systems................................................15
About (PAC Module Information)......................................17
®
Important Steps For Installation
SRK-RAM13H PAC Integration Kit
ISG-SRKRAM13H REV. 031921
for RAM Truck
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stinger HEIGH10 SRK-RAM13H PAC
Summary of Contents for Stinger HEIGH10 SRK-RAM13H PAC
-
Page 1: Table Of Contents
Updating PAC Integration APK.........9 Default Settings..............9 PAC SWC Settings ............10 Camera Settings...............11 Vehicle Audio Settings............14 Stinger and PAC Are Power Brands of AAMP Global Factory Amplifed Systems..........15 15500 Lightwave, Clearwater, Florida 33760 P: 888-228-5560 | © 2021 AAMP Global About (PAC Module Information)........17... -
Page 2: Accessing Installer Settings
® ® SRK-JW18EH PAC Integration Kit Jeep Wrangler JL | Gladiator JT Accessing the Installer Settings 1. From any source, press the HOME Button 2. From the HOME MENU select Settings 3. Select System Settings 5. Enter Passcode 0052 > OK 4. -
Page 3: Installer Settings
SRK-RAM13H PAC Integration Kit | RAM Truck Installer Settings Advanced Vehicle Settings Steering Wheel Control FM Tuning Steps [100KH - 200KH] Universal SWC programming. (Not used when Sets the FM radio tuning to 1 or 2 digit when linked to PAC interface). increments. -
Page 4: Checking System Firmware Version
® ® SRK-JW18EH PAC Integration Kit Jeep Wrangler JL | Gladiator JT Checking System Firmware Version Checking and updating the System Firmware and PAC Integration APK is an important step for proper operation. This should be done first before setting any system and vehicle settings as those settings may be lost after an update. -
Page 5: Updating Firmware
SRK-RAM13H PAC Integration Kit | RAM Truck Updating System Firmware 1. Format a USB Drive Before copying the firmware file to a USB Flash Drive, the USB drive will need to be formatted to FAT32 / MS-DOS(FAT) USB Drive Format: Windows PC A. - Page 6 ® ® SRK-JW18EH PAC Integration Kit Jeep Wrangler JL | Gladiator JT Updating System Firmware (cont.) 2. Download Firmware Download the firmware file from StingerElectronics.com. Transfer the firmware file “as is” onto the formatted USB drive. The file must be in the root directory of the USB drive. Do not unzip the file. See example A for Windows and B for Mac.
- Page 7 SRK-RAM13H PAC Integration Kit | RAM Truck Updating System Firmware (cont.) 4. Factory Reset When the update is complete and the display is on the Radio source, access the Installer Settings (Page 2), and select Factory Reset > Reset. The reset process takes 1-2 minutes, when completed, the unit will return to the Radio source.
-
Page 8: Checking Pac Integration Apk Version
® ® SRK-JW18EH PAC Integration Kit Jeep Wrangler JL | Gladiator JT Checking the PAC Integration APK Version The PAC Integration APK is the application that controls vehicle specific features and settings. Although the PAC Integration APK is included with the System Firmware, it can be updated inde- pendently as new vehicle specific features become available. -
Page 9: Updating Pac Integration Apk
SRK-RAM13H PAC Integration Kit | RAM Truck Updating the PAC Integration APK A. Download the PAC Integration APK file and transfer to a USB drive. B. Insert the USB drive into either USB port on the radio. C. Access the Installer Settings (Page: 2) and select PAC Update. -
Page 10: Pac Swc Settings
® ® SRK-JW18EH PAC Integration Kit Jeep Wrangler JL | Gladiator JT PAC SWC Settings The PAC interface allows retention and customization of the factory steering wheel control but- tons. By default they will be programmed according to the factory functions. You may change the function or add Long Press functionality to any button. -
Page 11: Camera Settings
SRK-RAM13H PAC Integration Kit | RAM Truck Installer Camera Settings The SRK-RAM13H allows retention of the factory rear camera and factory cargo camera if equipped. Up to four cameras may be added with a variety of trigger options. Camera 1 corresponds to the REVERSE CAMERA IN RCA input, and Cameras 2, 3, 4 correspond to CAMERA 2, CAMERA 3 and CAMERA 4 inputs on the HEIGH10. - Page 12 ® ® SRK-JW18EH PAC Integration Kit Jeep Wrangler JL | Gladiator JT Camera Presets Camera Preset: Rear By default, Camera 1 is set to Rear and uses reverse gear as the trigger. These settings are not editable. The rear camera will overide any other active camera, unless manually deactivated.
- Page 13 SRK-RAM13H PAC Integration Kit | RAM Truck Camera Presets (cont.) Camera Preset: Bed Allows the turn signals to activate the Bed camera for blind spot viewing in addition to manual activation. Turn Signal Trigger [LEFT-RIGHT-BOTH] Sets status of turn signals for camera activation.
-
Page 14: Vehicle Audio Settings
® ® SRK-JW18EH PAC Integration Kit Jeep Wrangler JL | Gladiator JT Vehicle Audio Settings If the truck is equipped with a factory amplifier, Vehicle Audio Settings will be present in the Advanced Vehicle Settings. To view or change the default factory audio settings, select Advanced Vehicle Settings >... -
Page 15: Factory Amplifed Systems
SRK-RAM13H PAC Integration Kit | RAM Truck Factory Amplified System Settings Note: The factory sound system crossover and time correction points are pre-tuned from the factory and saved on the factory amplifier and cannot be changed. When the SRK-RAM13H is installed in a RAM Truck with a factory amplified system, crossover and time correction adjustments will not be available by default. - Page 16 ® ® SRK-JW18EH PAC Integration Kit Jeep Wrangler JL | Gladiator JT Factory Amplified System Settings (cont.) 3. Set the EQ curve as recommended below and save it to Preset 1. EQ Curve Values 25Hz 40Hz 63Hz 100Hz 1.6k 2.5k 6.3k 4.
-
Page 17: About (Pac Module Information)
SRK-RAM13H PAC Integration Kit | RAM Truck About (PAC Information) To view or update the PAC Integration modules, select Advanced Vehicle Settings > About from the Installer Settings. Swipe or use the Left / Right arrows to cycle through the installed PAC Modules PAC Integration APK To update the PAC Integration APK, see Page: 7 RadioPro Advanced / PAC-LINK... - Page 18 ® ® SRK-JW18EH PAC Integration Kit Jeep Wrangler JL | Gladiator JT...
- Page 19 SRK-RAM13H PAC Integration Kit | RAM Truck...
-
Page 20: Stinger And Pac Are Power Brands Of Aamp Global
® ® SRK-JW18EH PAC Integration Kit Jeep Wrangler JL | Gladiator JT Stinger and PAC Are Power Brands of AAMP Global 15500 Lightwave, Clearwater, Florida 33760 P: 888-228-5560 | © 2021 AAMP Global Technical Support: Phone: 727-592-5991 Email: support@aampglobal.com Chat: stingerelectronics.com...
