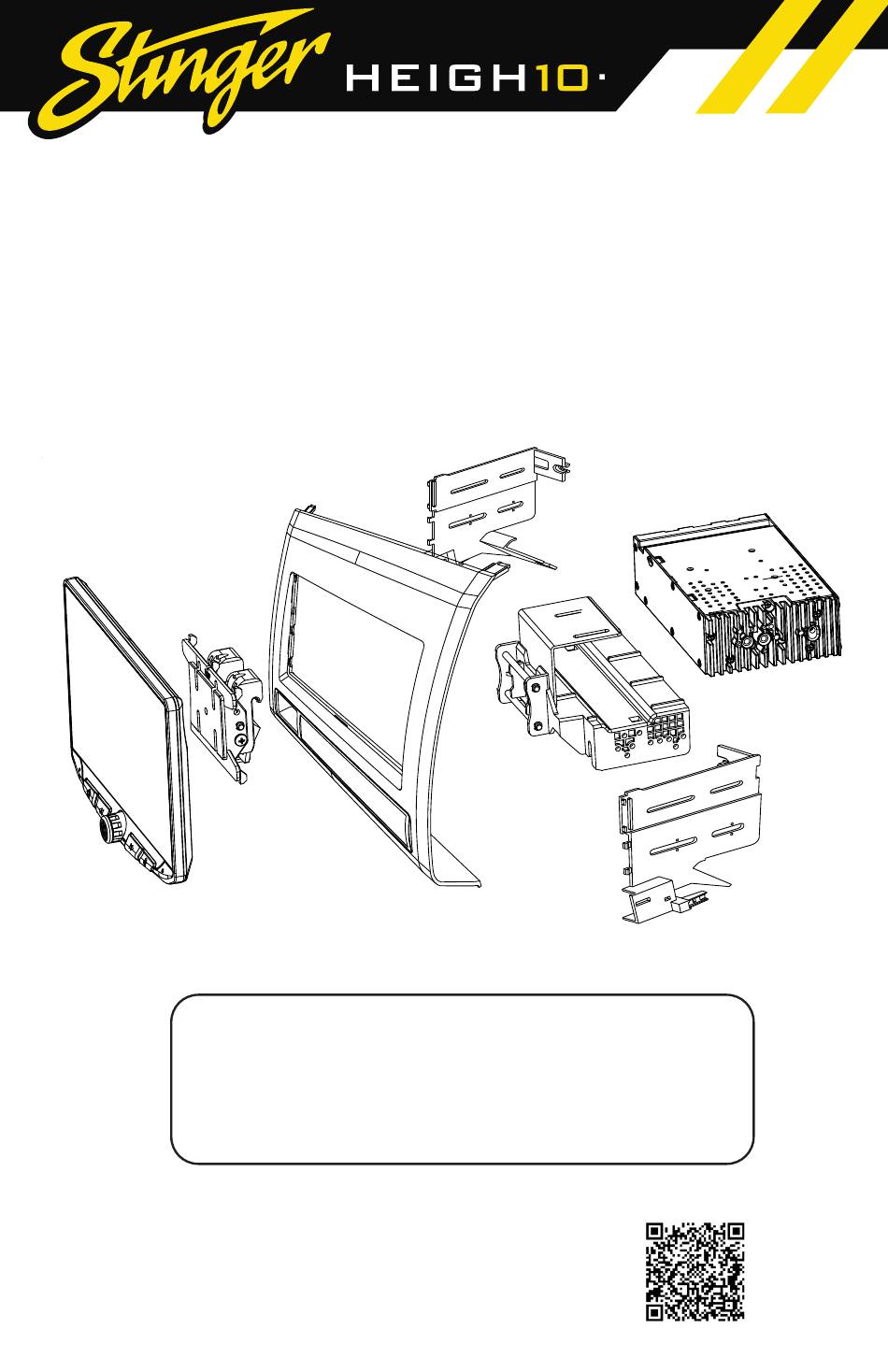

STH10TACOM
2005-2011 Toyota Tacoma
10" Multimedia Infotainment System
Installation Guide
NOTE! Read this installation guide thoroughly before disassembling
the vehicle or making wire connections. Installation of this product
requires technical skill, experience, and specialized tools.
If you feel uncomfortable performing the steps outlined in this
manual, please have this product professionally installed by an
authorized Stinger or Phoenix Gold Dealer.
A video installation guide is available at:
https://stingerelectronics.com/installvideos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STH10TACOM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stinger STH10TACOM

Summary of Contents for Stinger STH10TACOM

  • Page 1 If you feel uncomfortable performing the steps outlined in this manual, please have this product professionally installed by an authorized Stinger or Phoenix Gold Dealer. A video installation guide is available at: https://stingerelectronics.com/installvideos...

  • Page 2: Table Of Contents

    Contents Kit Components..............3 Vehicle Disassembly............4 Wire Connections............. 6 Radio & Display Assembly..........8 Mounting Kit Assembly............. 12 OBD-2 Adapter...............15 GPS Antenna..............16 USB Extension..............17 Harness Connections.............18 Vehicle Installation............21 Function Test..............24 Vehicle Reassembly............25 PRECAUTIONS Disconnect the vehicle's negative battery cable before making any wire connections. Protect all vehicle surfaces with tape or plastic.

  • Page 3: Kit Components

    Kit Components NOTE! This installation guide outlines basic installation. For any additional features, adding a rear camera or amplifier, please refer to the additional instructions included with each component. Stinger HEIGH10 RP4.2-TY11 TOYK972 ® (UN1810) Radio Replacement Mounting Kit 10” Multimedia System Interface Black &...

  • Page 4: Vehicle Disassembly

    Vehicle Disassembly 1. Insert a plastic trim tool along the bottom edge of the climate controls to release the four retaining clips. Unplug the two connectors from the climate controls. 2. Remove the four 10mm bolts located below the Hazard/Clock panel.
  • Page 5 Vehicle Disassembly 3. Using two hands behind the Hazard/Clock area, pull the radio assembly outward to release the retaining clips on the sides and top. Pull entire radio assembly forward, disconnect all wire harnesses from rear of radio and Hazard/ Clock panel and remove the radio assembly.

  • Page 6: Wire Connections

    Wire Connections Parts Needed: From the HEIGH10 Box: 16 Pin Power/Speaker Harness  10 Pin Multi Camera Harness (Optional)  6 Pin SWI*/IR Harness (Optional)  * Refer to pages 18-20 in the HEIGH10 Installation Guide for harness names and illustrations From the RP4.2-TY11 Box: Radio Harness (A109-RAD-HAR) ...
  • Page 7 Wire Connections RP4.2-TY11 Vehicle Connectors RP4.2-TY11 FIG A Analog Navigation Outputs Not Used (Cap Off) RP4.2-TY11-HAR V5 Red > ACC (+) < Red Yellow > BAT (+) < Yellow Black > Ground < Black HEIGH10 16 Pin White > Front L+ < White Power/Speaker White/Black >...

  • Page 8: Radio & Display Assembly

    Radio & Display Assembly Parts Needed: From the HEIGH10 Box: HEIGH10 Display Radio Module Plastic Mounting Bracket Metal Mounting Bracket Display Mounting Clamp M4 x 6 Screws (4) M4 x 14 Screws (4) M5 x 10 Screws (2) There is a Hardware Guide on Page 5 of the HEIGH10 Installation Guide Display Mounting Clamp Plastic NOTE! The Display Mounting Clamp...
  • Page 9 Radio & Display Assembly Start by attaching the Metal Bracket to the Plastic Mounting Bracket using two M4 X 6 screws (1). Slide the Radio Module in between and align the two holes with the metal bracket. Attach using two M4 X 6 screws (2). M4 X 6 Radio Module...
  • Page 10 Radio & Display Assembly Parts Needed: From the HEIGH10 Box: 8 Pin Display Harness Rubber Boot LVDS Display Cable (Blue USB) Metal Back Strap Attaching The Rubber Boot Display Mounting Clamp (Display not shown) The boot attaches to the display mounting clamp on the back of the display.
  • Page 11 Radio & Display Assembly Attaching The Display To attach the display, plug in both display cables into the back of the display and feed the cables under the plastic mounting bracket and plug into the back of the Radio Module. A - Hook the top hook to the top rail B - Push downward to compress spring C - Hook the lower hooks on the lower rail...

  • Page 12: Mounting Kit Assembly

    Mounting Kit Assembly From the HEIGH10 Box: #10 X 3/8 M5 X 10 TOYK972 Screws (4) Screws (4) Mounting Kit 1. Remove the shaded tabs from both left and right side brackets. 2. Align the pins on the slotted spac- ers with the holes on the inside of the side brackets and snap into place.
  • Page 13 Mounting Kit Assembly 4. Place the main frame face down. From the TOYK972 mounting kit hardware, install the three metal spring clips on the mounting studs along the top of main frame. FIG. D 5. Position the Hazard/Clock module into the main frame. 6.
  • Page 14 Mounting Kit & Radio Assembly 8. Slide the complete radio assembly into the mounting kit from the front. Plastic Mounting Bracket on bottom M5 x 10 (4X) Upper Holes Both Sides 9. With the radio assembly’s side mounting holes positioned as shown, loosely install the specified screws in each location marked in Red...

  • Page 15: Obd-2 Adapter

    OBD-2 Adapter Parts Needed: From the RP4.2-TY11 Box:  OBD-2 Adapter The OBD-2 Adapter provides vehicle data for the radio to operate properly. The adapter can be unplugged for service access to the OBD-2 port. If the OBD-2 port is being used by another accessory, the CAN wires can be professionally soldered behind the port and the adapter eliminated.

  • Page 16: Gps Antenna

    GPS Antenna Parts Needed: From the HEIGH10 Box:  GPS Antenna  GPS Mounting Plate The GPS antenna is required for proper operation of Apple CarPlay and Android Auto. Along the back of the inner dash opening, there is a air duct (shown shaded in gray below) running across the top.

  • Page 17: Usb Extension

    USB Extension Parts Needed:  SSUSB2 Dual USB Extension Apple CarPlay, Android Auto, and any Firmware Updates require access to a USB port. SSUSB2 is designed to extend the USB ports on the back of the HEIGH10 to where they are accessible once the radio is installed.

  • Page 18: Harness Connections

    Harness Connections Parts Needed:  All Harnesses from Pages 6-7 From the HEIGH10 Box: 24 Pin A/V Harness (Optional)  From the RP4.2-TY11 Box: RP4.2-TY11 Control Module  On the side of the RP4.2-TY11 module, set dip switch 3 down into the ON position.
  • Page 19 Harness Connections FIG. F Radio Module SPEED Antenna will be connected to the vehicles antenna Note: Mounting kit and plastic bracket not shown for illustration purposes. A109-RAD-HAR Vehicle plugs will be connected to the matching plugs removed from the factory radio...
  • Page 20 Harness Connections Referencing FIG. G below, make the following connections: 1. Plug in the HEIGH10 24 Pin AV Harness 2. Unplug the small white 2 Pin connector disconnecting the twisted White/Red and White/Black Wires 3. Referencing the label on the bottom of the RP4.2-TY11, plug in Interface Connector #3 into the Amplified Audio Output port if the vehicle has a factory amplifier (JBL) or the Non Amplified Audio Output port for all non amplified vehicles...

  • Page 21: Vehicle Installation

    Vehicle Installation Inside the vehicle with the HEIGH10 radio module/mounting kit assembly, RP4.2-TY11 and the HEIGH10 display, start by making the connections to the RP4.2-TY11 as shown below. 2. Connect the factory radio plugs to the corresponding plugs on the RP4.2-TY11 1.
  • Page 22 Vehicle Installation Referencing FIG. H below, make the following connections: 1. Plug in the antenna cable. 2. Plug in the two USB cables. 3. Plug in the GPS Antenna FIG. H Note: Additional harnesses and mounting kit not shown for illustration purposes.
  • Page 23 Vehicle Installation After all connections are complete, bundle and secure excess wire and cables behind the radio. Securely mount the RP4.2-TY11 module out of the way. Position the radio assembly close enough to plug the factory connector into the back of the Hazard/Clock module and then carefully slide the radio assembly into place.

  • Page 24: Function Test

    Function Test It’s recommended to check all functions and features before reassembling the vehicle. Reconnect the Negative Battery Cable if removed. The HEIGH10 User Guide can be found at: https://stingerelectronics.com There is a TROUBLE SHOOTING section at the end of the User Guide. ...

  • Page 25: Vehicle Reassembly

    Vehicle Reassembly 1. Reinstall the four 10mm bolts below the Hazard/Clock panel. 2. Reconnect the climate control plugs. Align the four climate control retaining clips and press firmly into place.
