Installation Guide
Vehicle Fitment
BRUTUS HD 2013-2018
RANGER 570 FULL SIZE 2015-2016
RANGER 570, 570 XP 2016
RANGER 570 EFI FULL SIZE CREW 2015
RANGER 900 EPS 2017-2018
RANGER 900 XP 2013-2017
RANGER 1000 DIESEL 2015-2018
Recommended Tools
Flat Blade Screwdriver
Torx T25
Air Saw or similar to cut plastic
Philips Screwdriver
Ruler
Marker / Masking Tape
Parts List
1
RANGER 1000 XP 2017
RANGER CREW 900 2014-2017
RANGER CREW 900 XP 2018
RANGER CREW 1000 XP 2017-2018
RANGER DIESEL HST 2014
RANGER HST 2015-2017
2
3
4
5

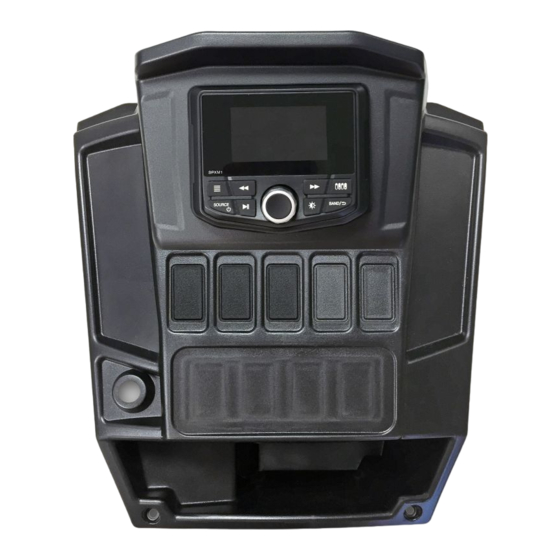

3" Aftermarket Multimedia Dash Kit
for select 2013–2018 Polaris Ranger
Item
Description
1
Main Frame
2
Top Cover
3
#8 X 3/8" Screw
4
#8 X 1 1/4" Screw
5
Locking Hook
SPXRNGDASH
®
Q
Qty
1
1
2
4
4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Stinger SPXRNGDASH
Summary of Contents for Stinger SPXRNGDASH

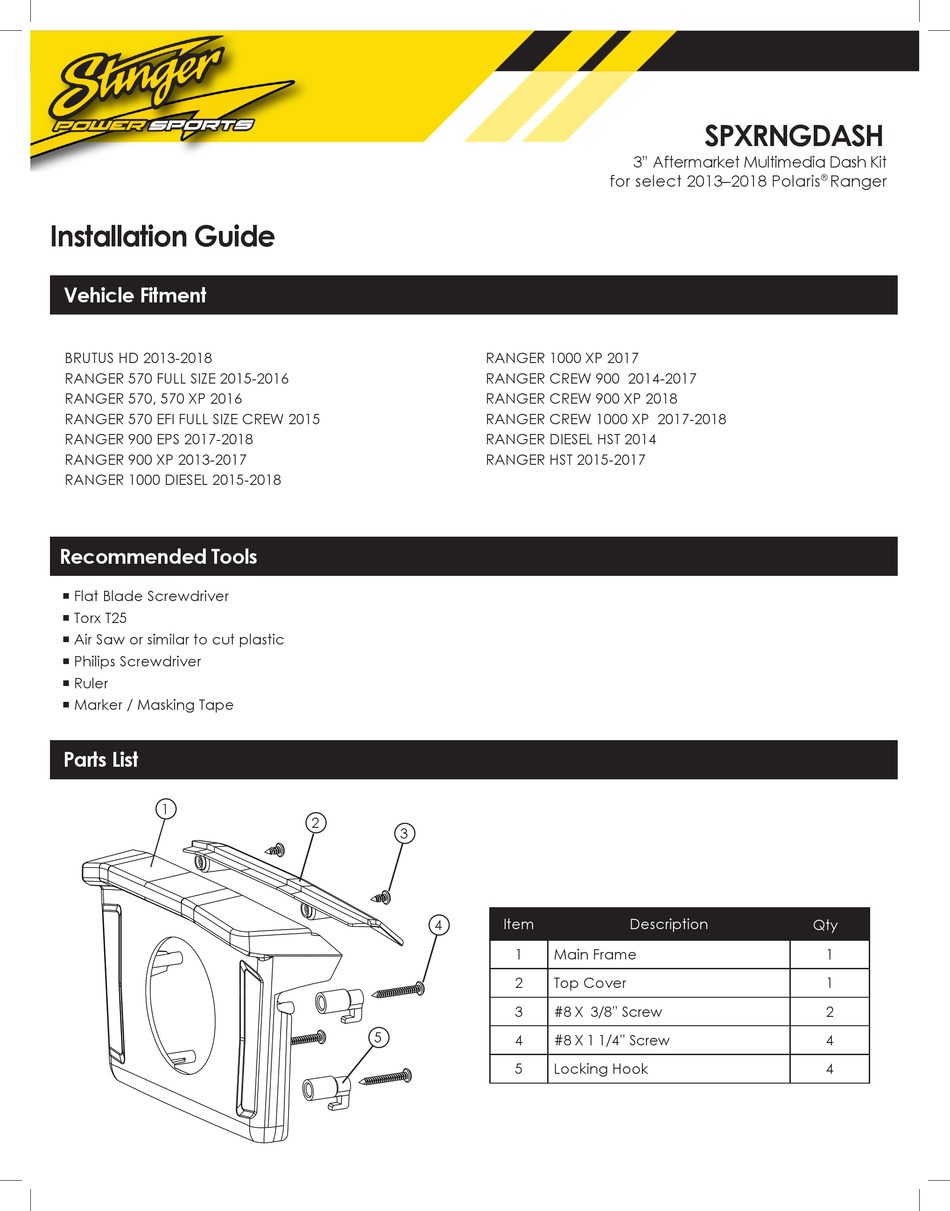

- Page 1 SPXRNGDASH 3” Aftermarket Multimedia Dash Kit for select 2013–2018 Polaris Ranger ® Installation Guide Vehicle Fitment BRUTUS HD 2013-2018 RANGER 1000 XP 2017 RANGER 570 FULL SIZE 2015-2016 RANGER CREW 900 2014-2017 RANGER 570, 570 XP 2016 RANGER CREW 900 XP 2018...
