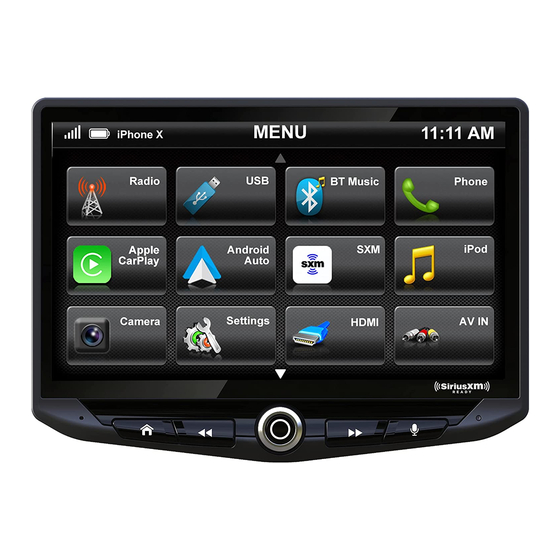

Stinger HEIGH10 Installation Manual

2009-2014 ford f150 10-inch modular multimedia system
Hide thumbs Also See for HEIGH10:

Advertisement

Table of Contents

STH10F150
2009-2014 FORD F150
10-Inch Modular Multimedia System
Installation Guide
NOTE! Read this installation guide thoroughly before disassembling
the vehicle or making wire connections. Installation of this product
requires technical skill, experience, and specialized tools.
If you feel uncomfortable performing the steps outlined in this
manual, please have this product professionally installed by an
authorized Stinger or Phoenix Gold Dealer.
A video installation guide is available at:
https://stingerelectronics.com/installvideos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEIGH10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stinger HEIGH10

Summary of Contents for Stinger HEIGH10

  • Page 1 If you feel uncomfortable performing the steps outlined in this manual, please have this product professionally installed by an authorized Stinger or Phoenix Gold Dealer. A video installation guide is available at: https://stingerelectronics.com/installvideos...

  • Page 2: Table Of Contents

    Contents Kit Components............... 3 Vehicle Disassembly............4 Wire Connections............6 Radio & Display Assembly..........8 Mounting Kit Assembly..........10 GPS Antenna..............13 Harness Connections.............14 Vehicle Installation............16 Function Test..............19 Vehicle Reassembly............20 PRECAUTIONS Disconnect the vehicle's negative battery cable before making any wire connections. Protect all vehicle surfaces with tape or plastic.

  • Page 3: Kit Components

    Kit Components NOTE! This installation guide outlines basic installation. For any additional features, adding a rear camera or amplifier, please refer to the additional instructions included with each component. Stinger HEIGH10 RP4-FD11 (UN1810) Radio Replacement FMK526 10” Multimedia System Interface...

  • Page 4: Vehicle Disassembly

    Vehicle Disassembly 1. Remove the AUX/USB panel below the climate controls using a small plastic trim tool starting at the bottom left of the panel. Unplug connectors. 2. Remove the 7mm screw behind the auxiliary panel. 3. Starting at the front edge, remove the rubber liner from the storage tray above the radio.
  • Page 5 Vehicle Disassembly 5. Using a plastic trim tool, carefully lift the left and right vent trim panels slightly outward along the inside edges that contact the radio/climate control panel. Do not remove the vent trim completely, only lift enough to allow the radio/ climate control panel to be removed.

  • Page 6: Wire Connections

    10 Pin Multi Camera Harness 6 Pin SWI/IR Harness (If vehicle is equipped with Steering Wheel Controls)  * Refer to pages 18-20 in the HEIGH10 Installation Guide for harness names and illustrations From the RP4-CH11 Box:  Vehicle Interface Harness (RP4-FD11-HAR V3) 4 Pin SWC Harness (If vehicle is equipped with Steering Wheel Controls) ...
  • Page 7 Wire Connections FIG A White > Front L+ < White White/Black > Front L- < White/Black Gray > Front R+ < Gray HEIGH10 16 Pin Gray/Black > Front R- < Gray/Black Power/Speaker Green > Rear L+ < Green Harness Green/Black > Rear L- < Green/Black Purple >...

  • Page 8: Radio & Display Assembly

    Radio & Display Assembly Parts Needed: From the HEIGH10 Box: HEIGH10 Display Radio Module Plastic Mounting Bracket Metal Mounting Bracket Display Mounting Clamp M4 x 6 Screws (4) M4 x 14 Screws (4) M5 x 10 Screws (2) NOTE! The Display Mounting Clamp is shipped connected to the Plastic Mounting Bracket.
  • Page 9 Radio & Display Assembly Start by attaching the Metal Bracket to the Plastic Mounting Bracket using two M4 X 6 screws (1). Slide the Radio Module in between and align the two holes with the metal bracket. Attach using two M4 X 6 screws (2). M4 X 6 Radio Module...

  • Page 10: Mounting Kit Assembly

    Mounting Kit Assembly Parts Needed: From the HEIGH10 Box: SSUSB #10 X 3/8 M5 X 10 Dual USB Extension Screws (4) Screws (4) FMK526 Mounting Kit The following components will need to be removed from the factory radio/climate control panel and installed on the FMK526 main panel.
  • Page 11 Apple CarPlay, Android Auto, and any Firmware Updates require access to a USB port. The SSUSB2 Dual USB is designed to extend the two USB ports on the back of the HEIGH10 to where they are accessible once the radio is installed. Feed both USB cables through the mounting hole on the FMK526 main panel.
  • Page 12 Mounting Kit Assembly Plastic Mounting Bracket on bottom    6. Slide the HEIGH10 radio assembly into the mounting kit from the back until the front of the assembly contacts the front frame. M5 x 10 (4X) Upper Holes Both Sides...

  • Page 13: Gps Antenna

    GPS Antenna The GPS Antenna is required for proper operation of Apple CarPlay and Android Auto. 1. Remove the rubber liner from the tray on the top of the dashboard. 2. Remove the two 7mm screws securing the tray and remove the tray by lifting on the back edge (closest to the windshield).

  • Page 14: Harness Connections

    9. Plug the 4 Pin SWC Harness into the RP4-FD11 module NOTE! These are the connections for the basic installation, there are additional harnesses included with the HEIGH10 kit (Amplifier, SiriusXM, Camera, Microphone, Aux). If not being used, it is recommended to save...
  • Page 15 Harness Connections FIG B HEIGH10 RADIO MODULE SPEED Antenna adapter will be plugged 3 vehicle plugs will be connected into the vehicle’s to the vehicle’s radio harness antenna cable Display cables will be plugged into the back of the display...

  • Page 16: Vehicle Installation

    Vehicle Installation Parts Needed: From the HEIGH10 Box: Rubber Boot (Optional)   Radio & Mounting Kit Assembly  FMK526 Main Panel 1. Inside the vehicle with the completed radio and mounting kit assembly, connect the following: Plug the 3 factory radio connectors...
  • Page 17 Vehicle Installation 2. After all connections are complete, bundle and secure excess wire and cables behind the radio. With the two display cables (2) routed to the front, carefully slide the new radio into place. 3. Reinstall the four 7mm screws removed from the factory radio/CD chassis.
  • Page 18 Vehicle Installation 8. To attach the display, plug in both display cables into the back of the display and feed any slack back into the dash opening: A - Hook the bottom hook to the lower rail B - Push upward from the bottom C - Hook the top hooks on the upper rail NOTE: Once the display is installed,...

  • Page 19: Function Test

    It’s recommended to check all functions and features before reassembling the vehicle. Reconnect the Negative Battery Cable if removed. The HEIGH10 User Guide can be found at: https://stingerelectronics.com/products/heigh10 There is a TROUBLE SHOOTING section at the end of the User Guide.

  • Page 20: Vehicle Reassembly

    AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use and with all State and Federal laws. STINGER provides instructions and safety warnings with respect to this product and disclaims all liability for any use not in conjunction with those instructions or other misuse of its product.
