Installation

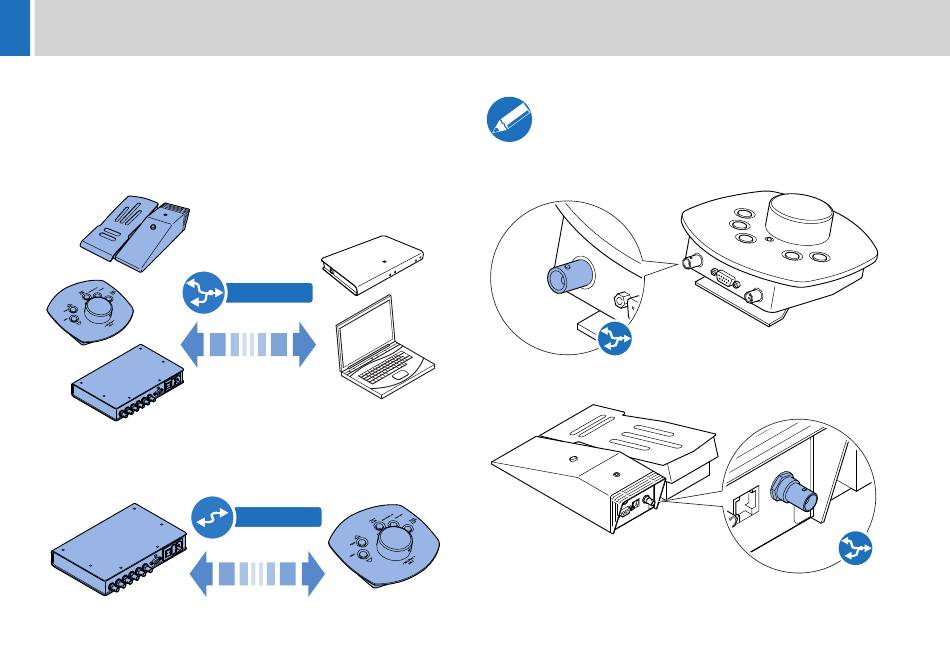

Controller Connection Options
Special consideration should be given when choosing locations and
connection methods to install and use the controllers and smart
combiner box.
•
Using Control Net connections, the cables can be up to 300
metres in length.
•
Serial connections are used for short connection distances, with a
maximum cable length of 18 metres.
10
Control Net
300 m (984 ft)
Serial
18 m (59 ft)
Control Net Connections
Control Net connections should always be made with
screened 75Ω coaxial cable.The cable screen must be
connected to earth (ground) at both ends.
Hand Controller
Foot Controller
