Summary of Contents for Autoscript XBox-IP

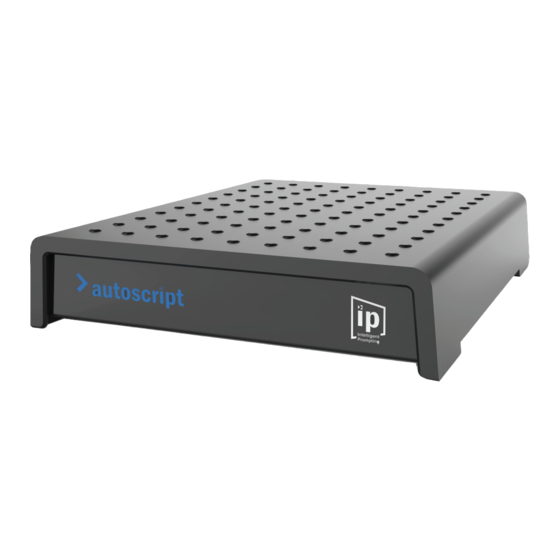

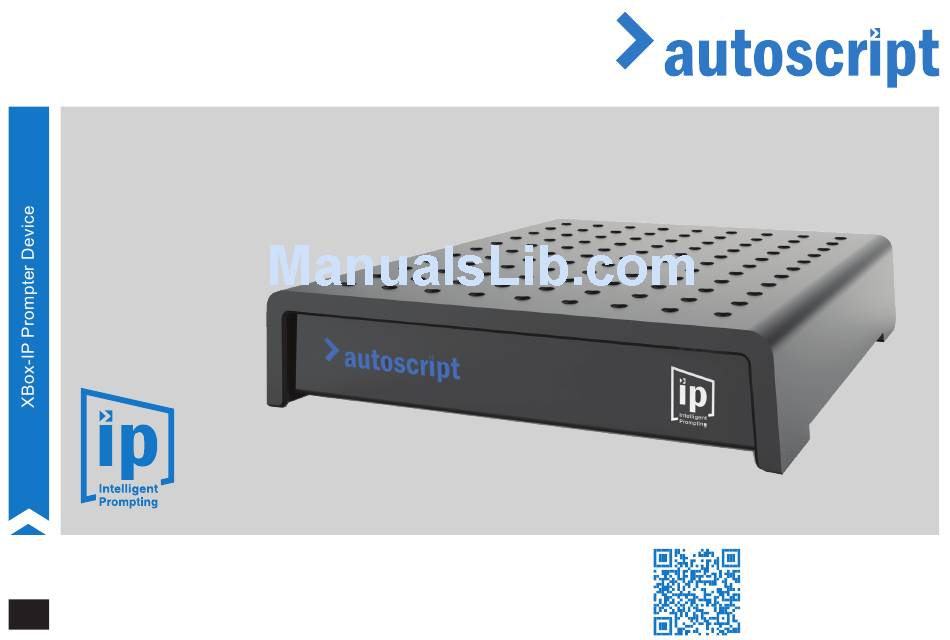

- Page 1 Installation Guide XBox-IP Prompter Device Part No. A9009-0001 www.autoscript.tv...
- Page 2 Copyright © 2017 All rights reserved. Original Instructions: English All rights reserved throughout the world. No part of this publication may be stored in a retrieval system, transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec Group Plc.
-
Page 3: Table Of Contents
Installation..........7 Connecting the XBox-IP ......7 The version downloaded will be a demonstration version only. -
Page 4: Safety
(US: ground). Intended Use The XBox-IP has been designed to provide a prompting text display and control system as part of a high quality teleprompting facility for television broadcasting. - Page 5 WARNING! When using this product outside, protect from connecting cables available for various configurations. rain using a suitable waterproof cover. The range of XBox-IP variants covered in this guide consists of the Ventilation following product: WARNING! Slots and openings are intended for ventilation purposes to ensure reliable operation of the product, and Part No.
-
Page 6: Components And Connections
Components and Connections Front View Rear View Status light 12 V DC auxiliary port Dual USB PoE PD Port RJ45 Power over Ethernet controller input Dual HD-SDI outputs... -
Page 7: Box Contents
Components and Connections Box Contents XBox-IP Scroll Engine XBox-IP Installation Guide... -
Page 8: Recommended Accessories (Not Supplied)
Components and Connections Recommended Accessories (not supplied) XBox-IP DC Power Supply Specification (if not using PoE) Input Voltage Range 100 - 230Vac Output Voltage Rating 12V dc Output Current Rated Output Power Output connection Type 2.1 x 5.5 x 11 Centre Positive... -
Page 9: Installation
Installation Connecting the XBox-IP Local connection Host PC to PoE injector or PoE Switch Prompter Monitor HC-IP Desktop Controller PoE Switch PoE Out PoE In XBox-IP RJ45 PoE connections HD-SDI- OUT PoE -PD -PORT Video connection Power CONTROLLER connection Power supply... -
Page 10: Network Connection
Installation Connecting the XBox-IP Network Connection PoE Switch RJ45 PoE connections Video connection Power connection Power supply PoE Switch Ethernet HC-IP Desktop Controller Prompter Monitor PSU (not required if using PoE) XBox-IP HD-SDI- OUT PoE -PD -PORT CONTROLLER Host PC to Network... -
Page 11: Cable Management
The XBox-IP will power up Powering Up LED Status There are two options to supply power to the XBox-IP: Status LED Power supplied over Ethernet (PoE) using an RJ45 cable with a suitable power injector. (Not supplied). -
Page 12: Configuration
If no devices are detected. From the Devices panel click the plus symbol. This will open the To configure the XBox-IP the device will need to be connected to the Add Discovered Device window. host PC with the WinPlus-IP software installed either locally or via the Click the Add Manual Devices button to open the Manually Add network. -
Page 13: Troubleshooting
Power cycle the XBox-IP by removing the PoE Injector connection. If using a DC power supply, Power cycle the XBox-IP by disconnecting the cable from the 12vDC input. See the sections Check that video connections are correct and secured. -
Page 14: Technical Specification / Maintenance
Technical specifications are subject to change without notice. Height 37 mm (1.45 in.) Weight 600g (1.3 lb) Routine Maintenance The XBox-IP requires minimal routine maintenance, apart from checking the connections and overall operation periodically. Routine checks Environmental Data During use, check the following: Operating temperature range •... -
Page 15: General Notices
General Notices FCC Certification Environmental considerations FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. European Union Waste of Electrical and Electronic FCC Declaration of Conformity Equipment (WEEE) Directive (2012/19/EU) This product complies with Part 15 of the FCC Rules. - Page 16 Publication No. A9009-4980/1 www.autoscript.tv...
