System Connections - One Smart Combiner Box

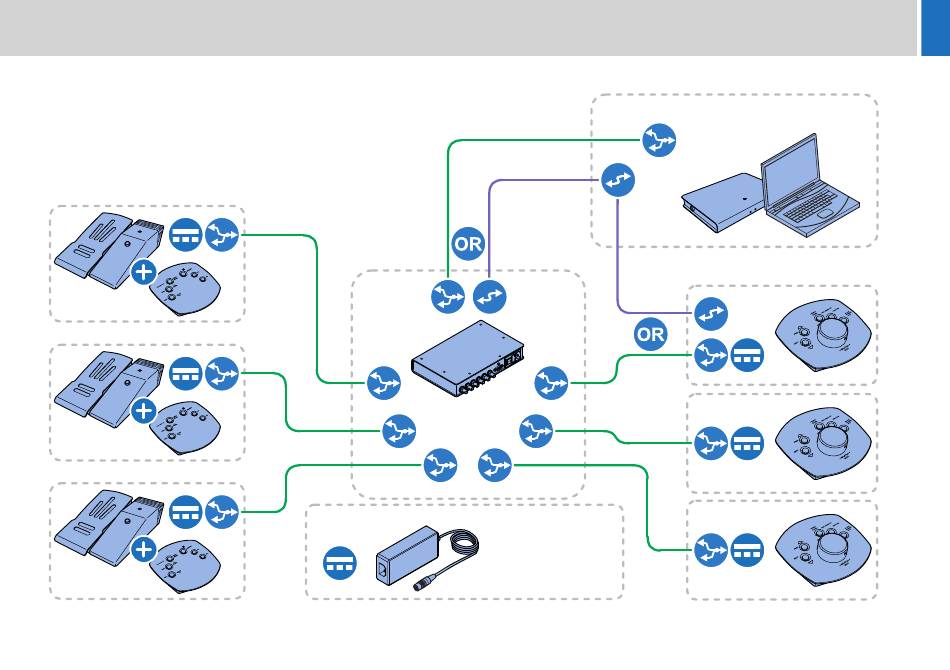

The diagram shows an example of an installation using one smart combiner box.
Any combination of controllers (hand or foot and desk) can be used.
Foot and Desk Controllers
Six Control Net inputs available
on the smart combiner (five if
the Control Net output is used
for connection to the XBox)
Smart
Combiner Box
Power Supply
Individual PSU-HRs
are required for
controllers not
connected using a
serial link
Installation
XBox and WinPlus Host PC
Hand Controllers
15
