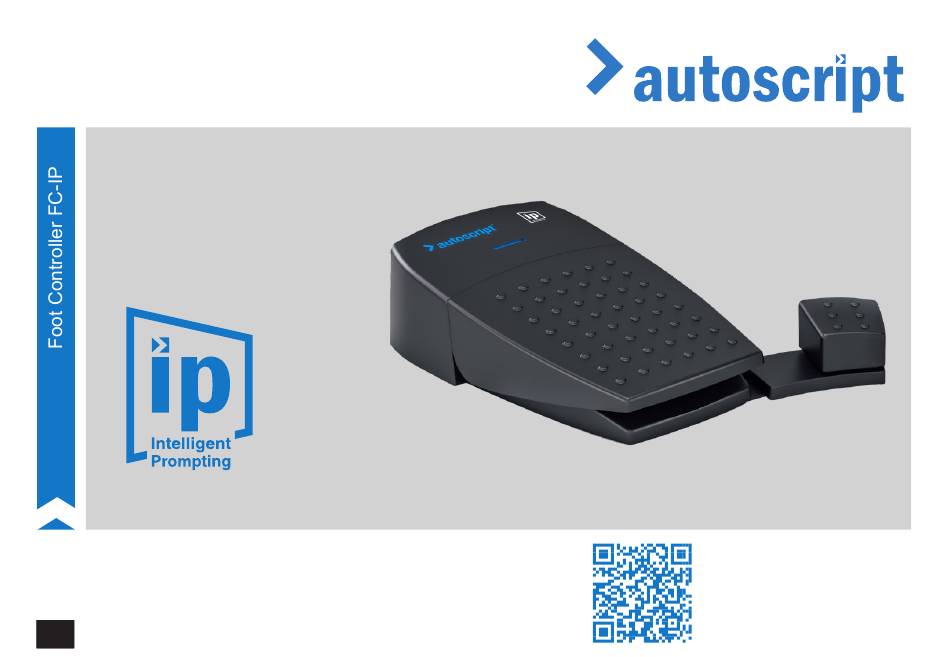

- Page 1 User Guide User Guide Foot Controller FC-IP Part No. A9009-0003 www.autoscript.tv...
- Page 2 Copyright © 2018 All rights reserved. Original Instructions: English All rights reserved throughout the world. No part of this publication may be stored in a retrieval system, transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Videndum Plc.
-
Page 3: Table Of Contents
Contents Safety.......... . 2 Routine Maintenance ......9 Electrical Connection .. -
Page 4: Safety
Safety Important information on the safe installation and operation of this product. Read this information before operating the product. For your personal safety, read these instructions. Do not operate the product if you do not understand how to use it safely. Save these instructions for future reference. Warning Symbols Used in these Instructions Safety cautions are included in these instructions. -
Page 5: Mounting And Installation
Safety Mounting and Installation / Montage et installation WARNING! Always ensure that all cables are routed so that they do not present any danger to personnel. Take care when routing cables in areas where robotic equipment is in use. AVERTISSEMENT ! Vérifiez toujours que les câbles d’alimentation et de communication auxiliaires sont acheminés de manière à... -
Page 6: Components And Connections
Components and Connections Top View Foot Control Status LED Pedal Button... -
Page 7: Front View
Components and Connections Front View RJ45. Powered over Ethernet Requires 3rd party IEEE 802.3af compatible PoE supply or XBox-IP (not included) Data LED Link LED Factory Reset... -
Page 8: Box Contents
Components and Connections Box Contents FC-IP Foot Controller Quick Start Guide... -
Page 9: Installation
Installation Powering Up The controller is automatically powered up when the PoE Ethernet cable Cat5 or Cat6 cable is attached. Requires 3rd party IEEE 802.3af compatible PoE injector or XBox-IP (A9009-0001 not included) Status LED Status LED and programmable function buttons flash once: Powered on. -
Page 10: Operation
Operation Programmable function button. The button is set up in the WP-IP software. See WP-IP software guide A9009-4983. Press the pedal down to start the scroll, the further it is pressed down the faster the scroll will operate. Sensitivity and dead-band range of the Foot Control can be adjusted in the Device Configuration in WP-IP NB. -
Page 11: Routine Maintenance
Maintenance Routine Maintenance The FC-IP Foot Controller requires minimal routine maintenance, apart from checking the connections and overall operation periodically. Routine checks During use, check the following: • Check PoE Ethernet cable for signs of wear or damage. Replace as necessary. -
Page 12: Technical Specification
Technical Specification Physical Data Power FC-IP • 3 W Max. 195 mm Width* • Powered over Ethernet (PoE) (7.6 in) • Third party PoE Injector Required (IEEE 232 mm Length* 802.3af compatible PoE supply) or XBox-IP (not (9.13 in) included) -
Page 13: Troubleshooting
If added to the system manually check the correct details are entered in the Manually Add Device fields The FC-IP IP address is not configurable Check that the correct IP address has been added for the FC-IP. (i.e. has correctly from the this IP address been used for a different device) application... - Page 14 General Notices FCC Certification FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Declaration of Conformity This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This product may not cause harmful interference.
-
Page 15: General Notices
General Notices Declaration of Conformity European Union Waste of Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) This symbol marked on the product or its packaging indicates that this product must not be disposed of Videndum Production Solutions Limited declares with general household waste. In some countries or that this product has been manufactured in European Community regions separate collection accordance with BS EN ISO 9001:2008. - Page 16 Publication No. A9009-4985/3 www.autoscript.tv...
