Installation
X-Box Ultra Data and Video Connections
Connection Options
Special consideration should be given when choosing locations and
connecting methods to install and use the X-Box Ultra.
•

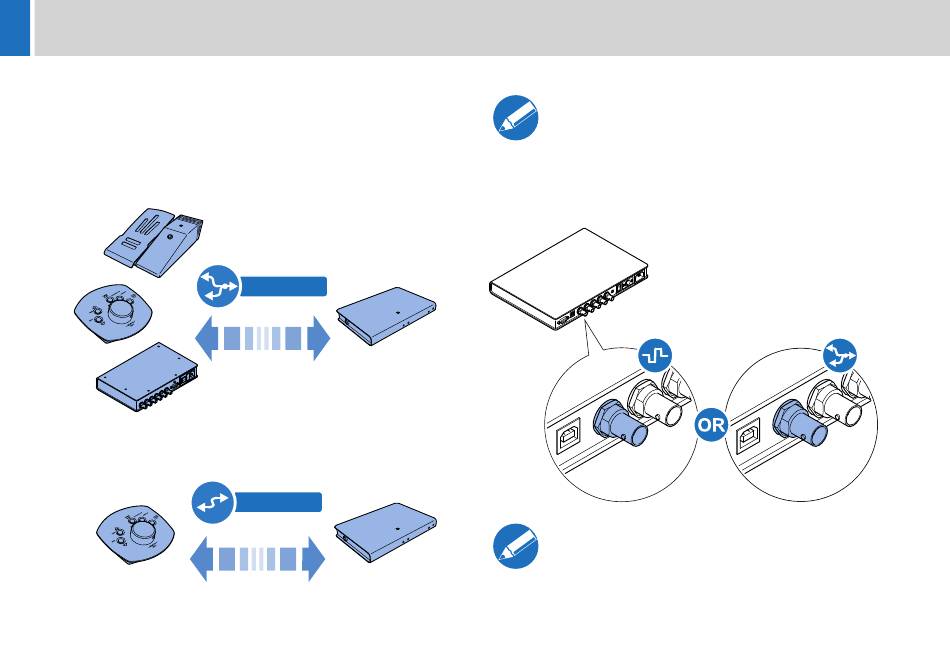

Using ControlNet connections, the cables can be up to 300 metres
in length.
•
Serial connections are used for short connection distances, with a
maximum cable length of 18 metres.
6
ControlNet
300 m (984 ft)
Serial
18 m (59 ft)
Genlock or ControlNet Connections
Genlock or ControlNet connections should always be
made with screened 75Ω coaxial cable.The cable screen
should be connected to earth (ground) at both ends.
The Genlock and ControlNet input is a shared connection. This input is
auto-sensing and changes function automatically with no additional
configuration requirements.
It is not possible to connect Genlock and ControlNet
connections to the X-Box Ultra at the same time.
