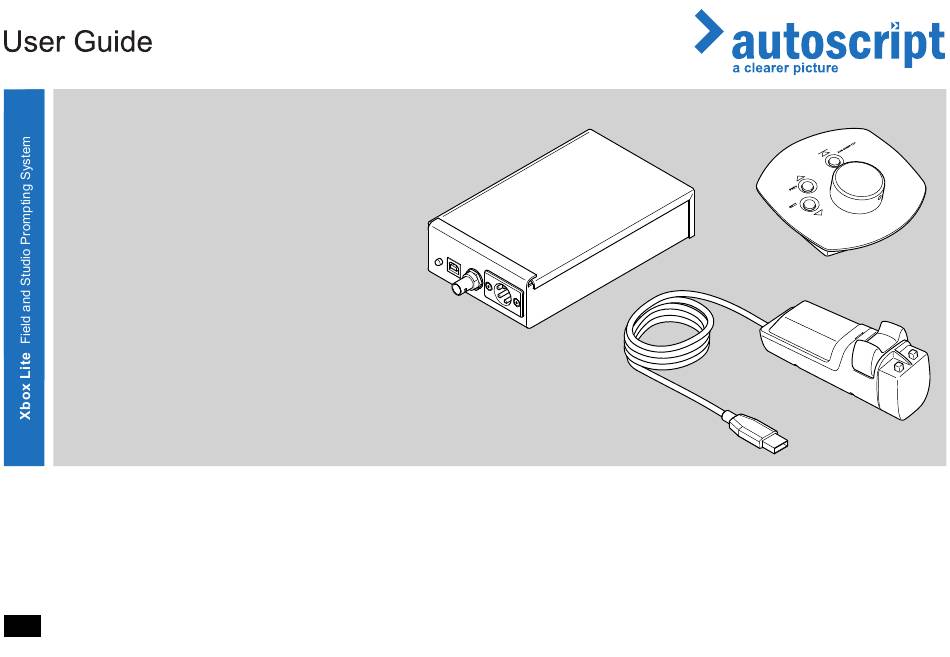

- Page 1 Xbox Lite Field and Studio Prompting System Part Nos. XBOXLITE HC-5 HC-7 www.autoscript.tv...
- Page 2 Copyright © 2014 All rights reserved. Original Instructions: English All rights reserved throughout the world. No part of this document may be stored in a retrieval system, transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec Group plc.
-
Page 3: Table Of Contents
XBOXLITE ........ -
Page 4: Safety
Safety Electrical Connection Important information on the safe installation and operation of this product. Read this information before operating the product. WARNING! Risk of electric shock. Always check cables for For your personal safety, read these instructions. Do not operate signs of damage. -
Page 5: About This Guide
CAUTION! The product should not be used outside the operating temperature limits. Refer to the product technical Part No. Description specifications for the operating limits for the product. XBOXLITE XBox Lite hardware interface for WinPlus-Xlite Cleaning HC-5 USB 3 button desktop controller WARNING! Risk of electric shock. -
Page 6: Components And Connections
Components and Connections XBOXLITE HC-5 Desktop Controller Power indicator LED ‘Next story’ button USB socket ‘Previous story’ button Video out socket ‘Back to top of script’ button DC power in socket Scroll speed rotary dial... -
Page 7: Hand Controller
Components and Connections WP-XLITE Package - Box Contents HC-7 Hand Controller Part Description A5000-5937 WinPlus Xlite software CD Hard-wired USB connecting cable XBOXLITE XBox Lite hardware interface Scroll speed thumb control HC-5 Desk controller ‘Next story’ button USB-C USB connecting cable, x2 ‘Previous story’... -
Page 8: Installation
The computer will detect the XBox Lite and start the “add new hardware” routine. Click to select manual install and browse to C:\Program Files\Pciwplus32XL\Autoscript Device Drivers for 32 Bit O/S or C:\Program Files (x86)\Pciwplus32XL\Autoscript Device Drivers for 64 Bit O/S. - Page 9 Installation Installing the Desktop or Hand Controller The host PC will detect the controller and launch the “Found New Hardware Wizard”. The following procedure applies to both the HC-5 desktop and HC-7 hand controllers. Select the appropriate driver for the controller being installed.
- Page 10 Click to select Include this location in the search. c) Click the Browse button. Click the Next button to continue. Browse to C:\Program Files\Pciwplus32XL\Autoscript Device Drivers for 32 Bit O/S or C:\Program Files (x86) \Pciwplus32XL\Autoscript Device Drivers for 64 Bit O/S. Click OK.
-
Page 11: Video Connection
Installation Video Connection The Wizard will now copy and install the driver files. A standard composite video output is provided for connection to a IMPORTANT! Windows will go through the Wizard prompter monitor. process twice - one time to install the USB hand control driver and a second time to install the serial to USB adapter (software only). -
Page 12: Xbox System Connections - Typical Installation
Installation XBox System Connections - Typical Installation WinPlus Lite Host PC connections Prompter Monitor Software CD Video connection Power connection HC-5 Desktop Controller Typically located on a desk with the WinPlus Lite host PC. USB-C USB-C XBox Lite HC-7 Hand Controller PSU-XLR (12V DC) -
Page 13: Maintenance
Maintenance Routine Maintenance The XBox Lite requires minimal routine maintenance, apart from checking the connections and overall operation periodically. Routine checks During use, check the following: • Check cables for signs of wear or damage. Replace as necessary. • Check that all cables are connected properly. Cleaning WARNING! Risk of electric shock. -
Page 14: Troubleshooting
Troubleshooting Fault Check Comments The XBox Lite is not powering up. Check that the DC power source is connected and See the section Installing the XBox Lite on secured. page 6. The XBox Lite is powered up, but not Check that any USB connections to controllers are See the section Installing the XBox Lite on controlling the prompted text. -
Page 15: Technical Specification
Technical Specification Physical Data* Connections Data Desktop Hand DC Power In Socket XBox Lite Controller Controller Connector type: 4 pin XLR plug. 97 mm 133 mm 30 mm Width* Signal (3.8 in) (5.2 in) (1.2 in) GROUND 138 mm 124 mm 110 mm Length* (5.4in) -
Page 16: General Notices
General Notices FCC Certification Declaration of Conformity XBOXLITE, HC-5 HC-7 Vitec Videocom Limited declares that this product has been FCC Notice manufactured in accordance with BS EN ISO 9001:2008. This product complies with the limits for a Class A digital device, This product complies with the following EU Directives: pursuant to Part 15 of the FCC Rules. - Page 17 General Notices European Union Waste of Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC) This symbol marked on the product or its packaging indicates that this product must not be disposed of with general household waste. In some countries or European Community regions separate collection systems have been set up to handle the recycling of electrical and electronic waste products.
- Page 20 Publication part No. XBOXLITE-4980/1 Autoscript www.autoscript.tv itec Group brand...
