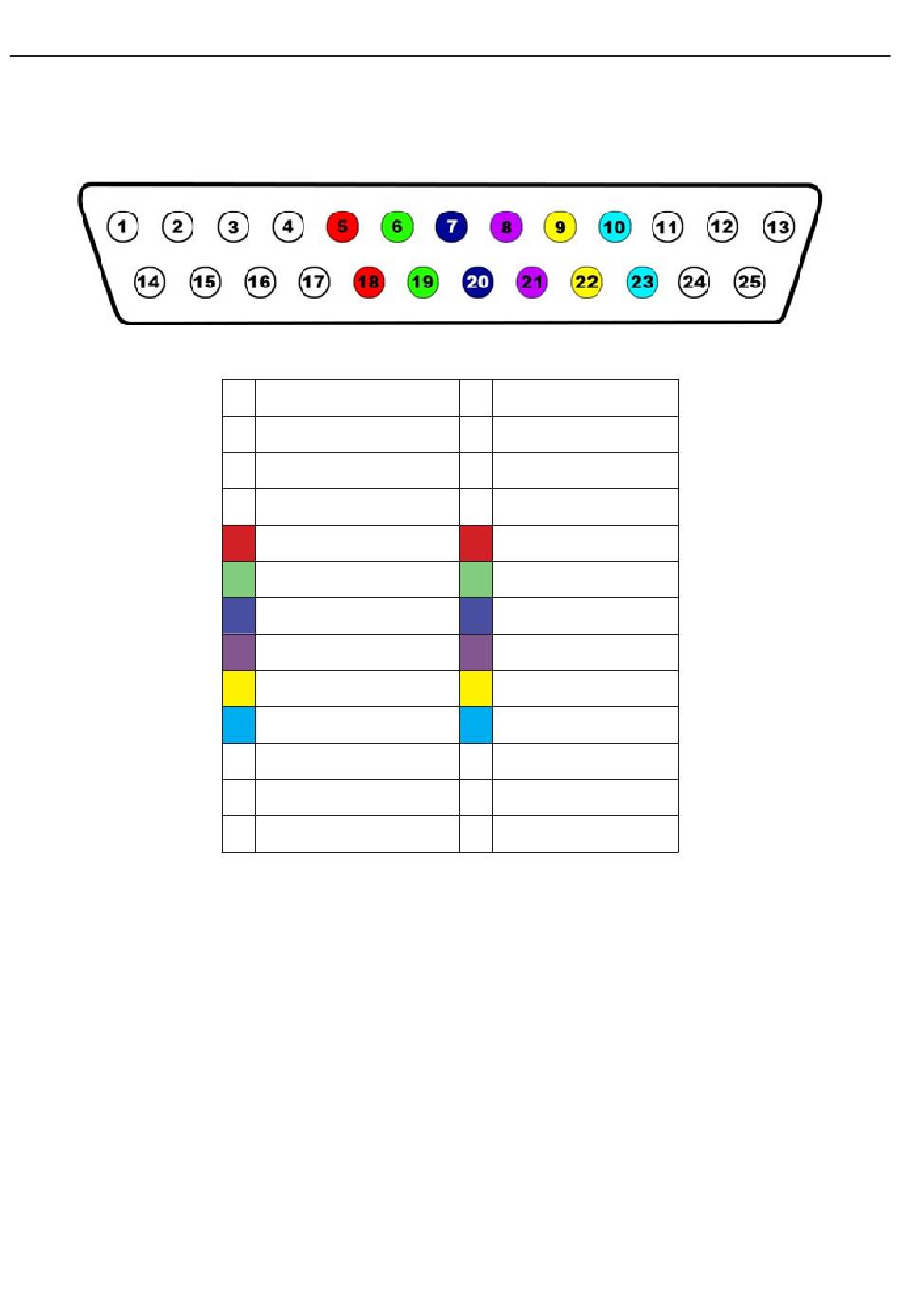

ILDA PINOUT SPECIFICATION

1. X +
2. Y +
3. Intensity/Blanking +
4. Interlock A
5. R +
6. G +
7. B +
8. Deep blue +
9. Yellow +
10. Cyan +
11. Z +
12. Not connected
13. Shutter
Elite ILDA series Operational Manual (Revision 2022-10)
14. X -
15. Y -
16. Intensity/Blanking -
17. Interlock B
18. R -
19. G -
20. B -
21. Deep blue -
22. Yellow -
23. Cyan -
24. Z -
25. Ground
