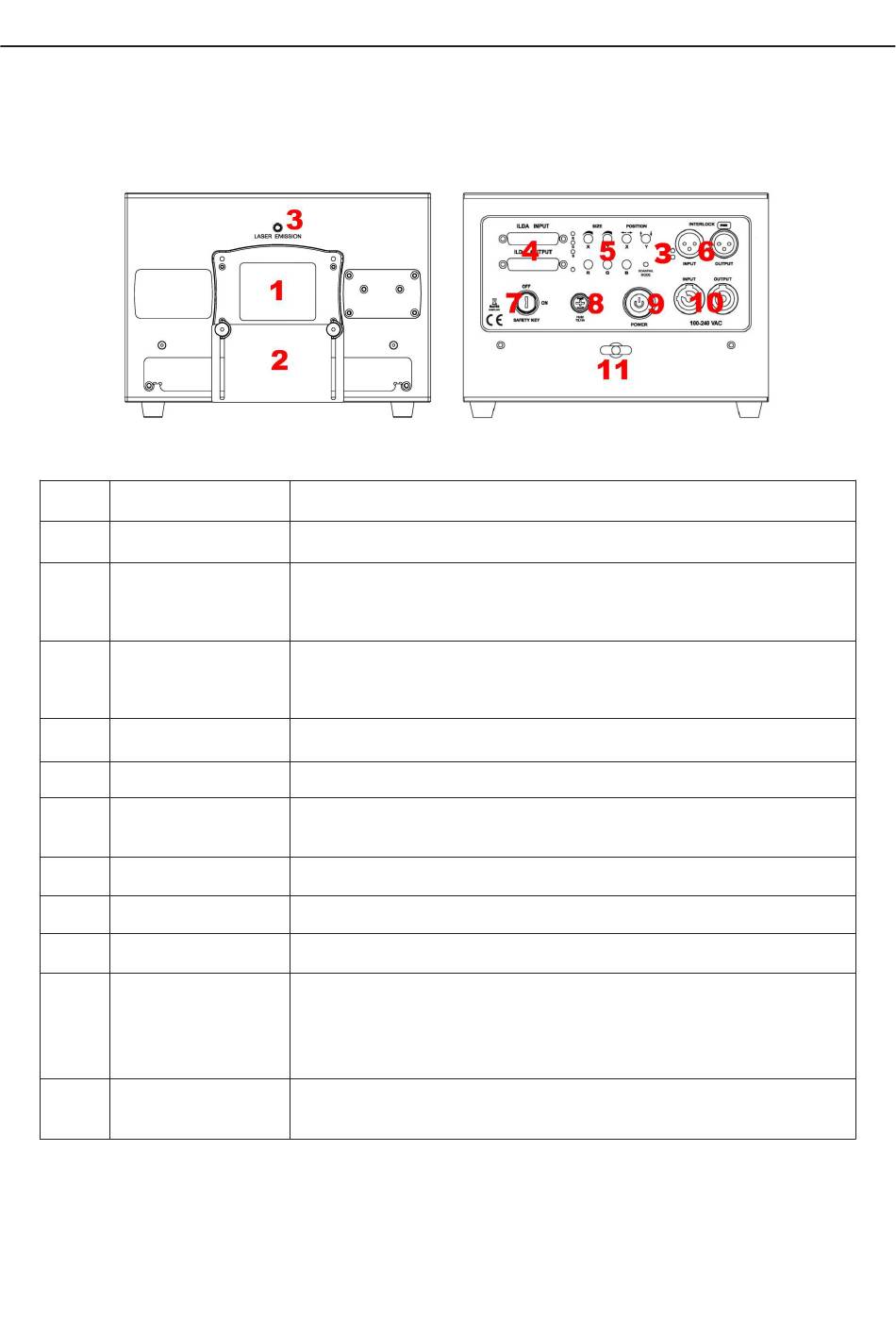

Front & Rear panel view (Elite 2 ILDA)
NO.
Name
1. Laser Aperture
Aperture masking
2.
3. Laser emission
4. DB25 IN & OUT
5. Function knob
6. 3-Pin Interlock
7. Key switch
8.
9. Power ON/OFF
10. Power in & out
11. Safety eyelet
Laser output, do not look directly into this aperture.
Can be moved up and down when two locking bolts are
loosened. The masking plate can also be attached to the top of
plate
the aperture.
When this indicator is lit up the laser system is ready to emit the
laser radiation as soon as it receives instructions from control
software.
DB25 interface in and out for ILDA mode
For X Y moving, invert & size; R, G, B brightness adjustment.
Laser output is available only when the interlock is connected.
It could be used to connect a laser emergency switch.
Turn the key switch ON to allow laser output.
Fuse Current rating 3.15A, slow acting type.
Power on/off
AC100-240V power input and output sockets. With output
feature you can connect the device to one another using the
input and output sockets. They must be the same fixtures. DO
NOT mix fixtures.
Use this together with appropriate safety wire to secure the
system against unexpected fall.
Elite ILDA series Operational Manual (Revision 2022-10)
Function
17
