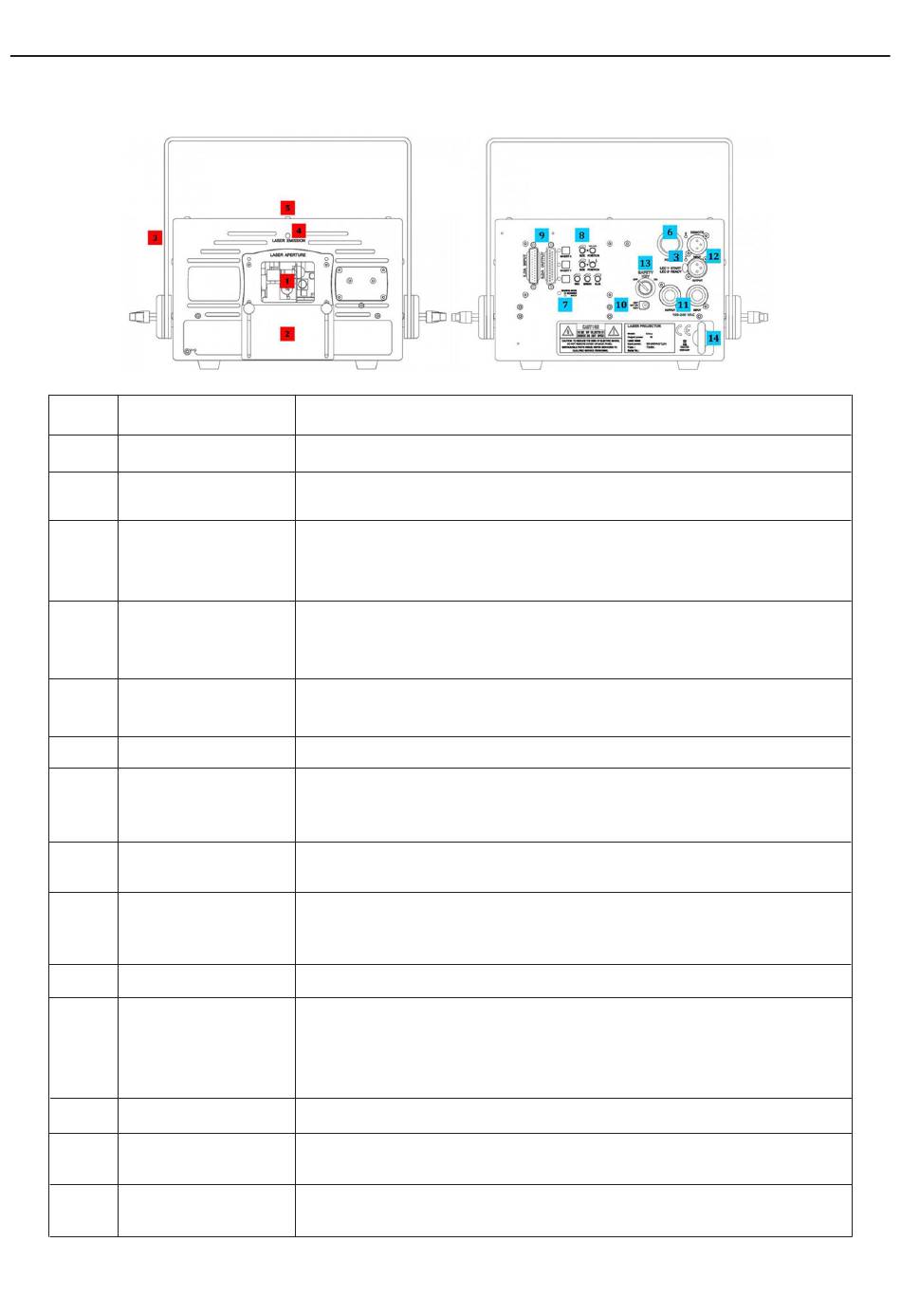

Front & Rear panel view (Elite 10 ILDA)
NO.
1. Laser Aperture
Aperture masking
2.
Attachment
3.
bracket
Laser emission
4.
5. Cover bolts
6. Power ON/OFF
Scan fail mode
7.
Main controls
8.
9.
INPUT/OUTPUT
Power connector
10.
Main power
11.
E-STOP
12.
Safety key switch
13.
14. Safety eyelet
Name
Laser output, do not look directly into this aperture.
Can be moved up and down when two locking bolts are loosened.
plate
The attachment bracket spins 360 degrees around the laser
body whilst it can be locked in desired position by two small
locking handles on sides.
When this indicator is lit up the laser system is ready to emit the
laser radiation as soon as it receives instructions from control
software.
To access the optical compartment of the laser system undo 18
button hex bolts and carefully remove the cover.
Power on/off
This indicates the state of the Scan-fail safety circuit of the
Emission Delay function. After every switch ON, this indicator will
flash for about 60 seconds.
Knobs for X Y movement, invert & size; R, G, B brightness
adjustment
Use the input connector for the control signal input from your
ILDA
external control interface. The output connector is used to daisy
chain control signal between multiple laser systems.
Quick Connect interface power connector
Use supplied blue Neutrik Powercon power cable to connect the
laser system to main power supply using the INPUT connector.
The OUTPUT connector is used to daisy chain power between
multiple laser systems for quick and easy installation.
Remote connector, Interlock status indicator and User Interlock
The safety key must be inserted and turned to ON position in
order to enable the system to operate.
The safety key must be inserted and turned to ON position in
order to enable the system to operate.
