UNITY Lasers s.r.o.
Elite ILDA series Operational Manual (Revision 2022-10)

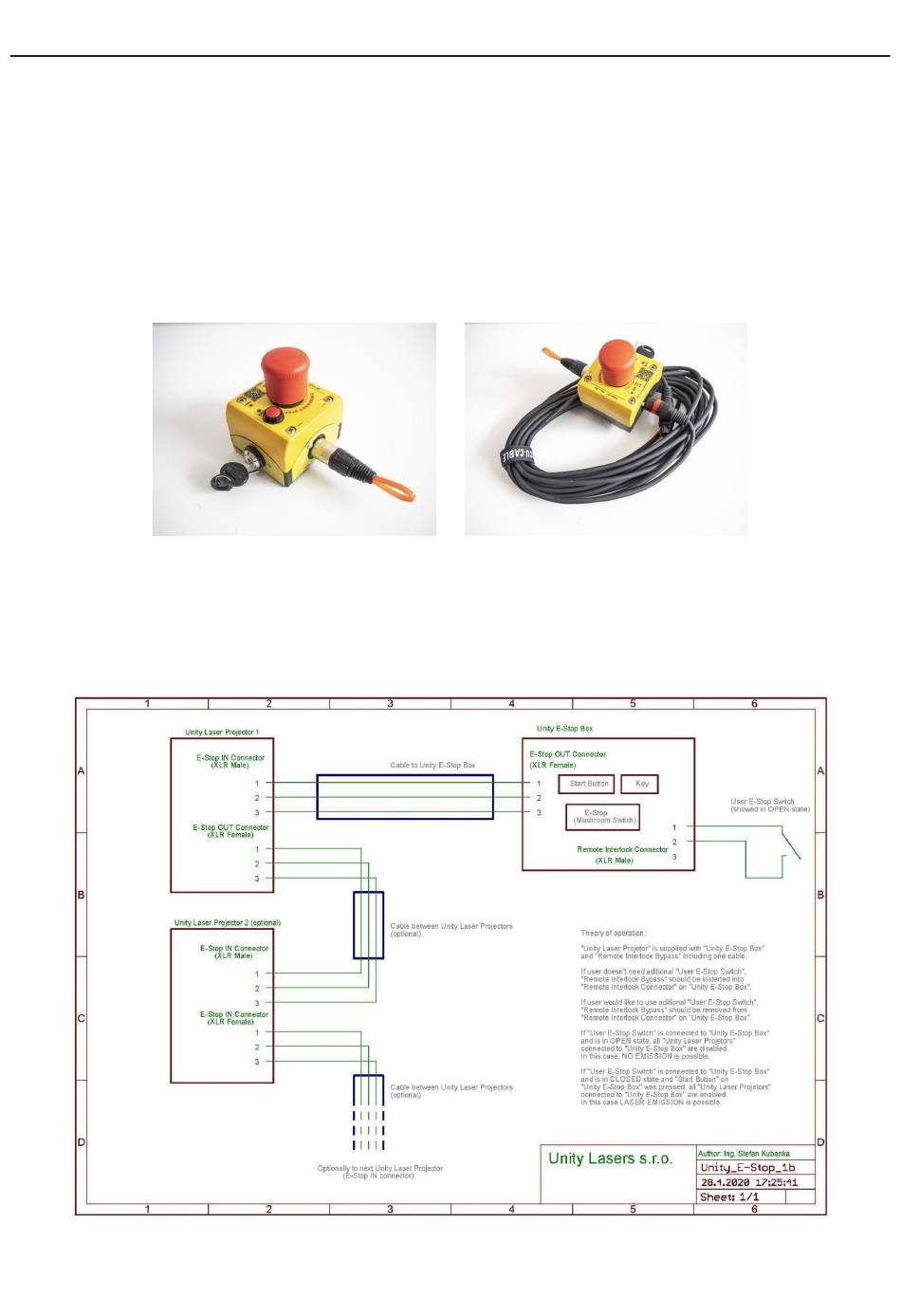

INSTRUCTIONS FOR USING E-STOP SYSTEM
Connect the E-stop box to the 3-pin interlock connector on the rear of the laser projector using a 3-PIN XLR
cable.
** Note that the E-stop box has an available secondary interlock port. The secondary port is to be used to interface a secondary
interlock device (e.x. door switch or pressure sensitive step pad). If a secondary interlock device is NOT used then the secondary
port must have the bypass shunt plug inserted.
The diagram below outlines the pinout configuration for the 3-pin connection from E-STOP box to the rear of
the projector.
11
