UNITY Lasers s.r.o.

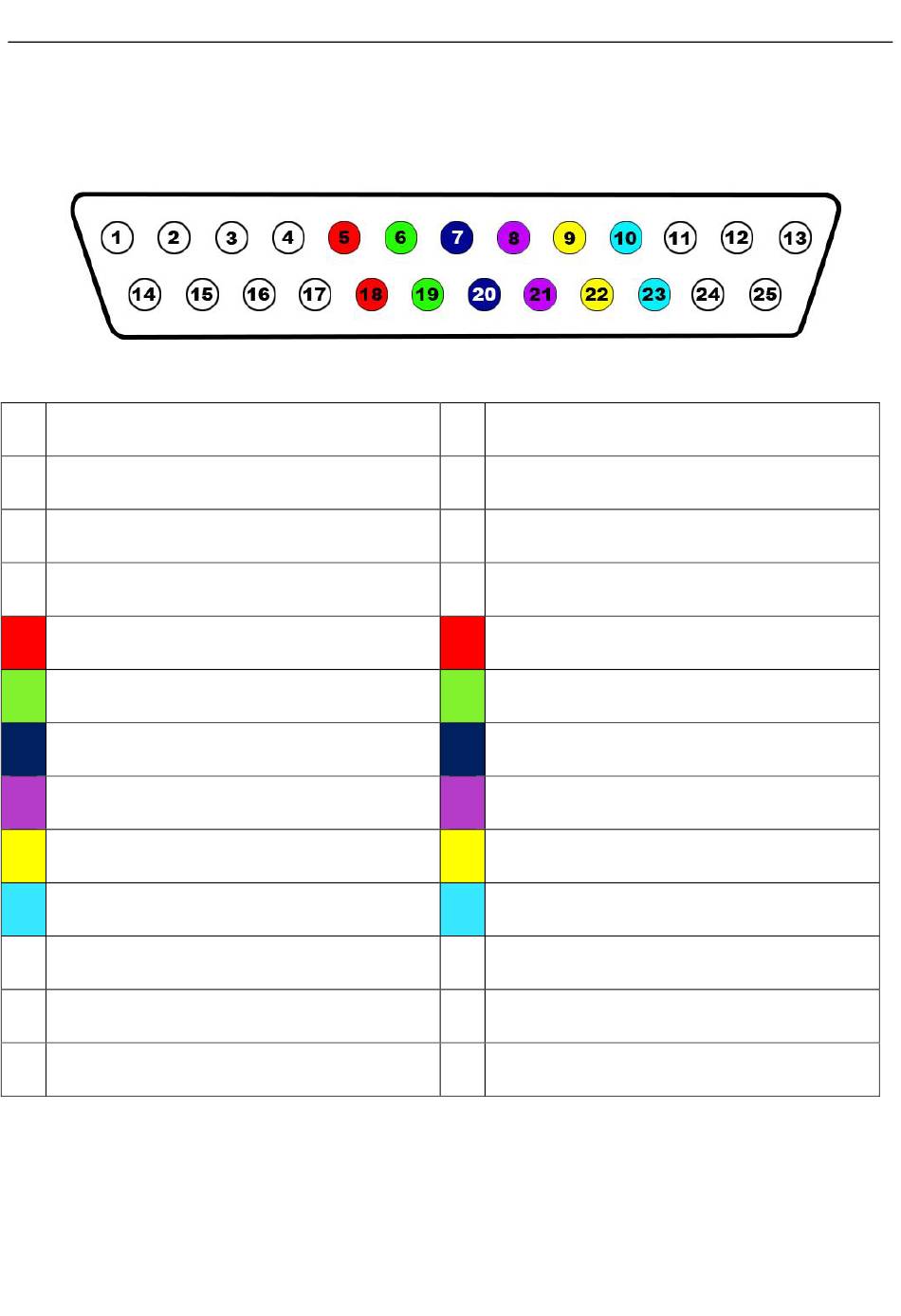

ILDA PINOUT SPECIFICATION
1 X+
2 Y+
3 Intensity/ Blanking +
4 Interlock A
5 R+
6 G+
7
B+
8 Deep blue +
9 Yellow +
10 Cyan +
11 Z+
12 Not connected
13 Shutter
Raw series Operation Manual (Revision 2020-7)
14 X-
15 Y-
16 Intensity/ Blanking -
17 Interlock B
18 R-
19 G-
20
B-
21 Deep blue -
22 Yellow -
23 Cyan -
24 Z-
25 Ground
21
