Notice
AVOID EYE OR SKIN EXPOSURE TO
DIRECT OR SCATTERED LIGHT
CLASS 4 LASER PRODUCT

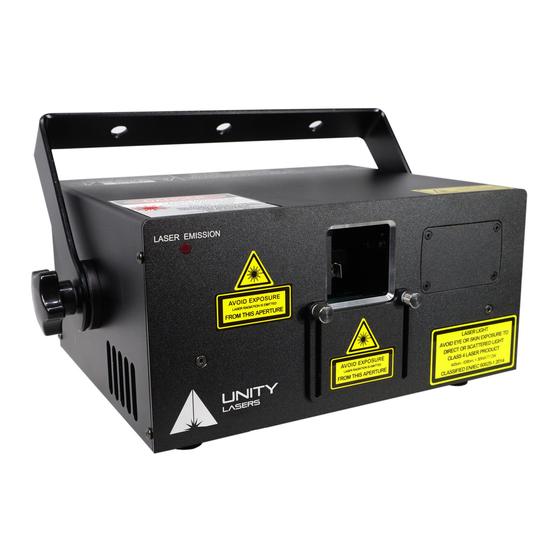

USER MANUAL
RAW 1.7 | RAW 3
Manufactured/ Certified by
UNITY Lasers s.r.o.
Odborárska 23
831 02 Bratislava
Slovakia, Europe
Classified per IEC 60825-1 2014
Complies with US FDA CDRH laser safety
standards 21 CFR 1040.10 & 1040.11
and Laser notice 50
Advertisement
Table of Contents
Related Manuals for UNITY Lasers RAW 1.7
Summary of Contents for UNITY Lasers RAW 1.7
- Page 1 USER MANUAL RAW 1.7 | RAW 3 Manufactured/ Certified by Notice Classified per IEC 60825-1 2014 UNITY Lasers s.r.o. AVOID EYE OR SKIN EXPOSURE TO Complies with US FDA CDRH laser safety Odborárska 23 standards 21 CFR 1040.10 & 1040.11...
-
Page 2: Table Of Contents
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) Contents INTRODUCTION WHAT IS INCLUDED UNPACKING INSTRUCTIONS GENERAL INFORMATION SAFETY NOTES LASER AND SAFETY NOTES PRODUCT SAFETY LABEL LOCATION PRODUCT SAFETY LABELS INTERLOCK CONNECTION DIAGRAM INSTRUCTIONS FOR USING E-STOP SYSTEM THEORY OF OPERATION... -
Page 3: Introduction
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) INTRODUCTION Thank you for purchasing your purchase. To optimize the performance of your laser, please read these operating instructions carefully and familiarize yourself with the basic operations of this system. These instructions contain important safety information regarding the use and maintenance of this system as well. -
Page 4: Safety Notes
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) SAFETY NOTES WARNING! This projector is a Class 4 laser product. It must never be used for audience-scanning applications. The output beam of the projector must always be at least 3 meters above the floor in the audience. -
Page 5: Laser And Safety Notes
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) LASER AND SAFETY NOTES STOP AND READ ALL THE LASER SAFETY NOTES BELOW Laser Light is different from any other light sources with which you may be familiar. The light from this product can cause eye and skin injury if not set up and used properly. - Page 6 UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) LASER EMISSION DATA Class 4 Laser Projector - Avoid Eye and Skin Exposure to Direct or Scattered Light! This Laser Product is designated as Class 4 during all procedures of operation.
-
Page 7: Product Safety Label Location
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) PRODUCT SAFETY LABEL LOCATION FRONT PANEL 1. Aperture Label 2. Hazard Warning Symbol 3. Interlocked Housing Label (duplicate label found on underside of top panel) TOP PANEL 4. Logotype Danger Label 5. -
Page 8: Product Safety Labels
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) PRODUCT SAFETY LABELS Logotype Danger Label Hazard Warning Symbol Aperture Label Aircraft Warning Label... - Page 9 UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) Interlocked Housing Label Manufacturer Label Certification Label...
-
Page 10: Interlock Connection Diagram
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) Interlock Connection Diagram... -
Page 11: Instructions For Using E-Stop System
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) INSTRUCTIONS FOR USING E-STOP SYSTEM Connect the ESTOP box to the 3-pin interlock connector on the rear of the laser projector using a 3-PIN XLR cable. **Note that the E-Stop box has an available secondary interlock port. The secondary port is to be used to interface a secondary interlock device (e.x. -
Page 12: Theory Of Operation
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) Theory of operation "UNITY Laser projector" is supplied with "E-Stop Box" and "Remote Interlock bypass" including one cable. If user doesn't need aditional "User E-Stop Switch", "Remote Interlock bypass" should be insterted into "Remote Interlock Connector"... -
Page 13: Operation
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) Caution – use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This Laser Product is designated as Class 4 during all procedures of operation. -
Page 14: Interlock Reset Function (Power)
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) INTERLOCK RESET FUNCTION (POWER) With the projector operating and projecting laser light, unplug the AC power cable. The projector must shut off immediately. Plug the power cable back in. The projector must not emit any laser light. -
Page 15: Model Specifications
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) MODEL SPECIFICATIONS: Product Specification (Raw 1.7) Type of laser: full-colour, semiconductor diode laser system Guaranteed optical output: >1,700mW Suitable for: small to medium indoor / outdoor laser shows and laser graphic displays... - Page 16 UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) Front & Rear panel view (Raw 1.7) Name Function Laser aperture Laser output, do not look directly into this aperture Aperture masking Can be moved up and down when two locking bolts are loosened. The plate masking plate can also be attached to the top of the aperture.
- Page 17 UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) Dimension details (Raw 1.7)
- Page 18 UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) Product Specification (Raw 3) Type of laser: full-colour, semiconductor diode laser system Guaranteed optical output: >3,000mW small to medium indoor / outdoor laser shows and laser graphic Suitable for: displays Control signal: ILDA - We recommend Pangolin FB3QS and QuickShow 25,000 points per second @ 8°...
- Page 19 UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) Front & Rear panel view (Raw 3) Name Function Laser aperture Laser output, do not look directly into this aperture Aperture masking Can be moved up and down when two locking bolts are loosened. The plate masking plate can also be attached to the top of the aperture.
- Page 20 UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) Dimension details (Raw 3)
-
Page 21: Ilda Pinout Specification
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) ILDA PINOUT SPECIFICATION 1 X+ 14 X- 2 Y+ 15 Y- 3 Intensity/ Blanking + 16 Intensity/ Blanking - 4 Interlock A 17 Interlock B 5 R+ 18 R- 6 G+... -
Page 22: Technical Information - Maintenance And Service
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) ECHNICAL NFORMATION – MAINTENANCE AND SERVICE MAINTENANCE GENERAL CLEANING INSTRUCTIONS – TO BE DONE BY USER Due to fog residue, smoke, and dust cleaning the external body of the projector should be carried out periodically to optimize light output. - Page 23 UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) 7. While standing behind the laser, power up the system as normal. 8. Project a large white circle onto a laser safe surface. Use the least amount of power that enables all the laser modules.
- Page 24 UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) By using a hex key, you can align the modules separately by hand. Be sure to not apply too much pressure as it could damage the dichroic filters. Remove the bolts from the front panel and gently remove the front panel to get a better angle for adjusting the filters.
-
Page 25: Service
UNITY Lasers s.r.o. Raw series Operation Manual (Revision 2020-7) SERVICE There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so will void your manufactures warranty. In the unlikely event your unit may require service please contact us directly or your local distributor, who will help you with a repair or replacement.
