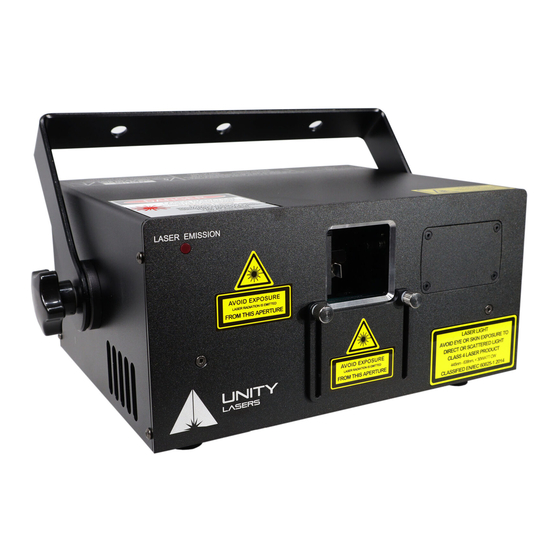

UNITY Lasers RAW 1.7 User Manual
  1. Manuals
  2. Brands
  3. UNITY Lasers Manuals
  4. Measuring Instruments
  5. RAW 1.7
  6. User manual

UNITY Lasers RAW 1.7 User Manual

Hide thumbs Also See for RAW 1.7:
Table of Contents

Advertisement

Quick Links

Download this manual
Notice
AVOID EYE OR SKIN EXPOSURE
TO DIRECT OR SCATTERED LIGHT
CLASS 4 LASER PRODUCT
USER MANUAL
RAW 1.7 | RAW 3
RAW 5 | RAW 10
Manufactured / Certified by
Unity Lasers s.r.o.
Odborárska 23
831 02 Bratislava
Slovakia, Europe
Classified per IEC 60825-1: 2014
Complies with US FDA CDHR laser safety
standards 21 CFR 1040.10 & 1040.11
and Laser notice 56

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAW 1.7 and is the answer not in the manual?

Questions and answers

Related Manuals for UNITY Lasers RAW 1.7

Summary of Contents for UNITY Lasers RAW 1.7

  • Page 1 USER MANUAL RAW 1.7 | RAW 3 RAW 5 | RAW 10 Notice Manufactured / Certified by Classified per IEC 60825-1: 2014 AVOID EYE OR SKIN EXPOSURE Unity Lasers s.r.o. Complies with US FDA CDHR laser safety TO DIRECT OR SCATTERED LIGHT Odborárska 23...

  • Page 2: Table Of Contents

    • INTERLOCK RESET FUNCTION (REMOTE INTERLOCK BYPASS) MODEL SPECIFICATION • PRODUCT SPECIFICATION (RAW 1.7) • FRONT & REAR PANEL VIEW (RAW 1.7) • DIMENSION DETAILS (RAW 1.7) • PRODUCT SPECIFICATION (RAW 3) • FRONT & REAR PANEL VIEW (RAW 3) •...

  • Page 3: Introduction

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) INTRODUCTION Thank you for purchasing this purchase. To optimize the performance of your laser, please read these operating instructions carefully and familiarize yourself with the basic operations of this system. These instructions contain important safety information regarding the use and maintenance of this system as well.

  • Page 4: Safety Notes

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) SAFETY NOTES WARNING! This projector is Class 4 laser product. It must never be used for audience-scanning applications. The output beam of the projector must always be at least 3 metres above the floor in the audience. See the Operating Instructions section for further information.

  • Page 5: Laser And Safety Notes

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) LASER AND SAFETY NOTES STOP AND READ ALL THE LASER SAFETY NOTES BELOW Laser Light is different from any other light sources with which you may be familiar. The light from this product can cause eye and skin injury if not set up and used properly.
  • Page 6 UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) LASER EMISSION DATA • Class 4 Laser Projector - Avoid Eye and Skin Exposure to Direct or Scattered Light! • This Laser Product is designated as Class 4 during all procedures of operation.

  • Page 7: Product Safety Label Location

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) PRODUCT SAFETY LABEL LOCATION FRONT PANEL Aperture Label 2. Hazard Warning Symbol 3. Laser Light Warning Label TOP PANEL 4. Logotype Danger Label 5. Aircraft Warning Label 6. Manufacturer Label 7. Certification Label 8.

  • Page 8: Product Safety Labels

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) PRODUCT SAFETY LABELS Logotype Danger Label Diode Laser __ W MAX OUTPUT AT __ nm __ W MAX OUTPUT AT __ nm __ W MAX OUTPUT AT __ nm ___W AT ________nm...
  • Page 9 UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) Laser Light Warning Label Manufacturer Label Certification Label...

  • Page 10: Interlock Connection Diagram

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) INTERLOCK CONNECTION DIAGRAM...

  • Page 11: Instructions For Using E-Stop System

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) INSTRUCTIONS FOR USING E-STOP SYSTEM Connect the E-stop box to the 3-pin interlock connector on the rear of the laser projector using a 3-PIN XLR cable. ** Note that the E-stop box has an available secondary interlock port. The secondary port is to be used to interface a secondary interlock device (e.x.

  • Page 12: Theory Of Operation

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) THEORY OF OPERATION “UNITY Laser projector” is supplied with “E-Stop Box” and “Remote Interlock Bypass” including one cable. If user doesn’t need additional “User E-Stop Switch”, “Remote Interlock Bypass” should be inserted into “Remote Interlock Connector”...

  • Page 13: Operation

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) Caution – use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This Laser Product is designated as Class 4 during all procedures of operation.
  • Page 14 UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) INSTRUCTIONS FOR TURNING OFF THE LASER SYSTEM Turn off the key switch; and deactivate via the red mushroom switch on the E-stop box. You can remove the 3-pin Interlock bo too, if the laser will be kept for no use. (We recommend having a professional operator to keep the keys and 3-pin Interlock switch.)

  • Page 15: Safety Tests

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) SAFETY TESTS E-STOP FUNCTION • With the projector operating and projecting laser light, press the red E-stop switch. The projector must shut off immediately. • Fully extend the red E-stop switch, until a yellow collar is visible on the switch system. The projector must not emit any laser light.

  • Page 16: Model Specification

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) MODEL SPECIFICATION Product specification (Raw 1.7) Type of laser: full-colour, semiconductor diode laser system Guaranteed optical output: > 1,700mW small to medium indoor / outdoor laser shows and laser Suitable for:...

  • Page 17: Front & Rear Panel View (Raw 1.7)

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) Front & Rear panel view (Raw 1.7) Name Function Laser output, do not look directly into this aperture. Laser Aperture Aperture masking Can be moved up and down when two locking bolts are loosened.

  • Page 18: Dimension Details (Raw 1.7)

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) Dimension details (Raw 1.7)

  • Page 19: Product Specification (Raw 3)

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) Product specification (Raw 3) Type of laser: full-colour, semiconductor diode laser system Guaranteed optical output: > 3,000mW small to medium indoor / outdoor laser shows and laser Suitable for: graphic displays...

  • Page 20: Front & Rear Panel View (Raw 3)

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) Front & Rear panel view (Raw 3) Name Function Laser output, do not look directly into this aperture. Laser Aperture Aperture masking Can be moved up and down when two locking bolts are loosened.

  • Page 21: Dimension Details (Raw)

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) Dimension details (Raw 3)

  • Page 22: Product Specification (Raw 5)

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) Product specification (Raw 5) Type of laser: full-colour, semiconductor diode laser system Guaranteed optical output: > 5,000mW Medium to large indoor / outdoor laser shows and laser Suitable for: graphic displays...

  • Page 23: Front & Rear Panel View (Raw 5)

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) Front & Rear panel view (Raw 5) Name Function Laser output, do not look directly into this aperture. Laser Aperture Aperture masking Can be moved up and down when two locking bolts are loosened.

  • Page 24: Dimension Details (Raw 5)

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) Dimension details (Raw 5)

  • Page 25: Product Specification (Raw 10)

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) Product specification (Raw 10) Type of laser: full-colour, semiconductor diode laser system Guaranteed optical output: > 10W Medium to large indoor / outdoor laser shows and laser Suitable for: graphic displays...

  • Page 26: Front & Rear Panel View (Raw 10)

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) Front & Rear panel view (Raw 10) Name Function Laser output, do not look directly into this aperture. Laser Aperture Aperture masking Can be moved up and down when two locking bolts are loosened.

  • Page 27: Dimension Details (Raw 10)

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) Dimension details (Raw 10)

  • Page 28: Ilda Pinout Specification

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) ILDA PINOUT SPECIFICATION 14. X - 2. Y + 15. Y - 3. Intensity/Blanking + 16. Intensity/Blanking - 4. Interlock A 17. Interlock B 5. R + 18. R - 6. G + 19.

  • Page 29: Technical Information - Maintenance

    UNITY Lasers s.r.o. Raw series Operational Manual (Revision 2020-7) TECHNICAL INFORMATION - MAINTENANCE GENERAL CLEANING INSTRUCTIONS - TO BE DONE BY USER Due to fog residue, smoke, and dust cleaning the external body of the projector should be carried out periodically to optimize light output.
