Raw 1.7/3/5/10 (DMX+ILDA) Operational Manual (Revision 2024-11)
UNITY Lasers s.r.o. | Unity Lasers, LLC
INSTRUCTIONS FOR USING E-STOP SYSTEM
Connect the E-stop box to the 3-pin interlock connector on the rear of the laser projector using a 3-PIN XLR
cable.
** Note that the E-stop box has an available secondary interlock port. The secondary port is to be used
to interface a secondary interlock device (e.x. door switch or pressure sensitive step pad). If a secondary
interlock device is NOT used then the secondary port must have the bypass shunt plug inserted.

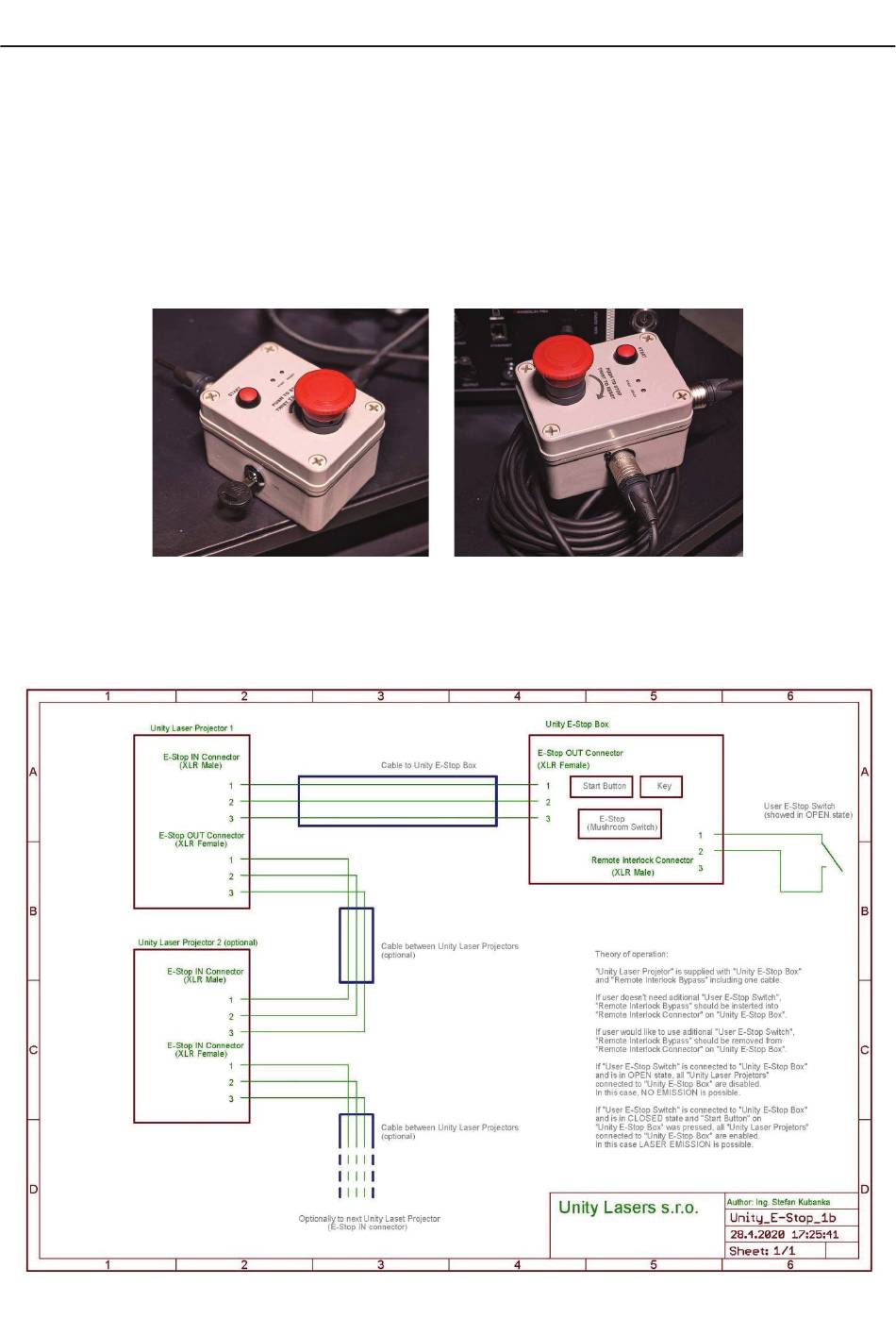

The diagram below outlines the pinout configuration for the 3-pin connection from E-STOP box to the rear of
the projector.
12
