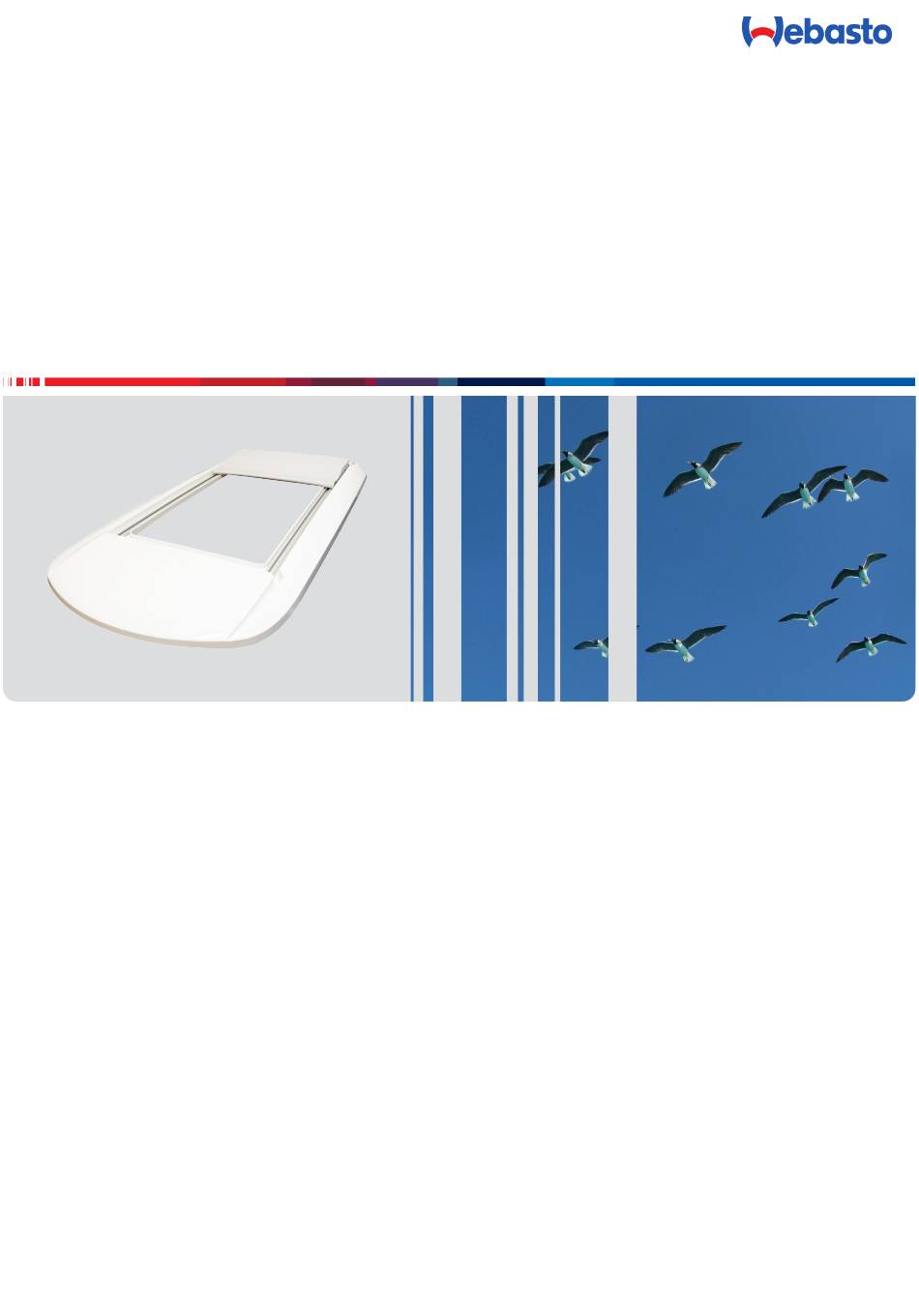

- Page 1 Operating Instructions FS 2500 Marine Shading Systems English...
-
Page 2: Table Of Contents
Manually moving the folding shade over less than 25 cm................ 6 Manually moving the folding shade over more than 25 cm................ 6 Reinitializing the control system......... 7 Annex .......... 7 Technical data ............ 7 EC-Declaration of Incorporation......... 7 UKCA-Declaration of Incorporation...... 7 3398336D OI FS 2500... -
Page 3: About This Document
The Operating Instructions (OI) are an integral part of the The FS 2500 is an electrically operated marine folding shade sys- product and provide the information required to ensure correct tem for comfort purposes. The FS 2500 is designed for use on and safe operation. motor and sailing yachts. -
Page 4: Operation
3.3.2 One touch closing NOTE When this option is installed the FS 2500 closes up to 200 mm The illustrations show the standard Webasto control from the fully closed position after briefly pushing the Close switch. The installed control switch can be different. -
Page 5: Maintenance
Replace switch. Greasing Poor opening / clos- Polluted guides. Clean the inside of ing of the FS 2500. the guides. Apply a thin layer of grease to the inside of the guides. The FS 2500 still Contact your dealer... -
Page 6: Manual Operation
If necessary, you may be able to operate the FS 2500 manually. The procedure to follow depends on the exact issue you need In case the FS 2500 is closed and locked, first unlock it by to address. opening the FS 2500 for at least 10 cm as described in CAUTION Manually moving the folding shade over less than 25 cm. -
Page 7: Reinitializing The Control System
Technical data. Description Value Press and hold the Close button. Operation Continuous electric – The FS 2500 closes as far as possible. Power 12 V DC, 20 A Release the Close button. Table 2: Technical data Press and hold the Close button. - Page 8 Europe, Asia Pacific UK only Webasto Thermo & Comfort SE Webasto Thermo & Comfort UK Ltd Postfach 1410 Webasto House 82199 Gilching White Rose Way Germany Doncaster Carr South Yorkshire Company address: DN4 5JH Friedrichshafener Str. 9 United Kingdom 3398336D...
