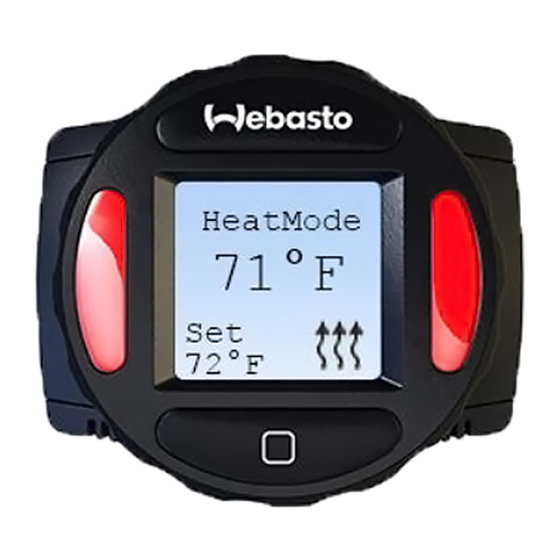

Webasto SmarTemp Control 2.0 Quick Start Manual

SmarTemp Control 2.0 –
For full setup and menu information, refer to the QR code for access to the full
operation guide.
X
Pour obtenir des informations complètes sur la configuration et le menu, reportez-vous
au code QR pour accéder au guide d'utilisation complet.
X
Para obtener información completa sobre la configuración y el menú, consulte el
código QR para acceder a la guía de funcionamiento completa.
Connector Pin-Out
Pin Number
1
2
3
4
For terminal removal use: Molex terminal removal tool P/N: 11-03-0044 (http://www.molex.com)
*Diagnostic Blink Code functionality does not apply to most coolant heaters. Refer to the Error Code section for additional
information.
Pin Number
1
2
3
4
5
6
7
8
Affix the supplied sticker in a readily visible location in such a way the
operator will be aware of the potential hazard.
Mounting Dimensions
Description
+12 / 24V
GND
Heater Output
*Diagnostic Blink Code
Description
+12 / 24V
GND
Heater Output
Diagnostic Blink Code
Analog Output
Analog Output
Vent Input
Diagnostic Input W-Bus

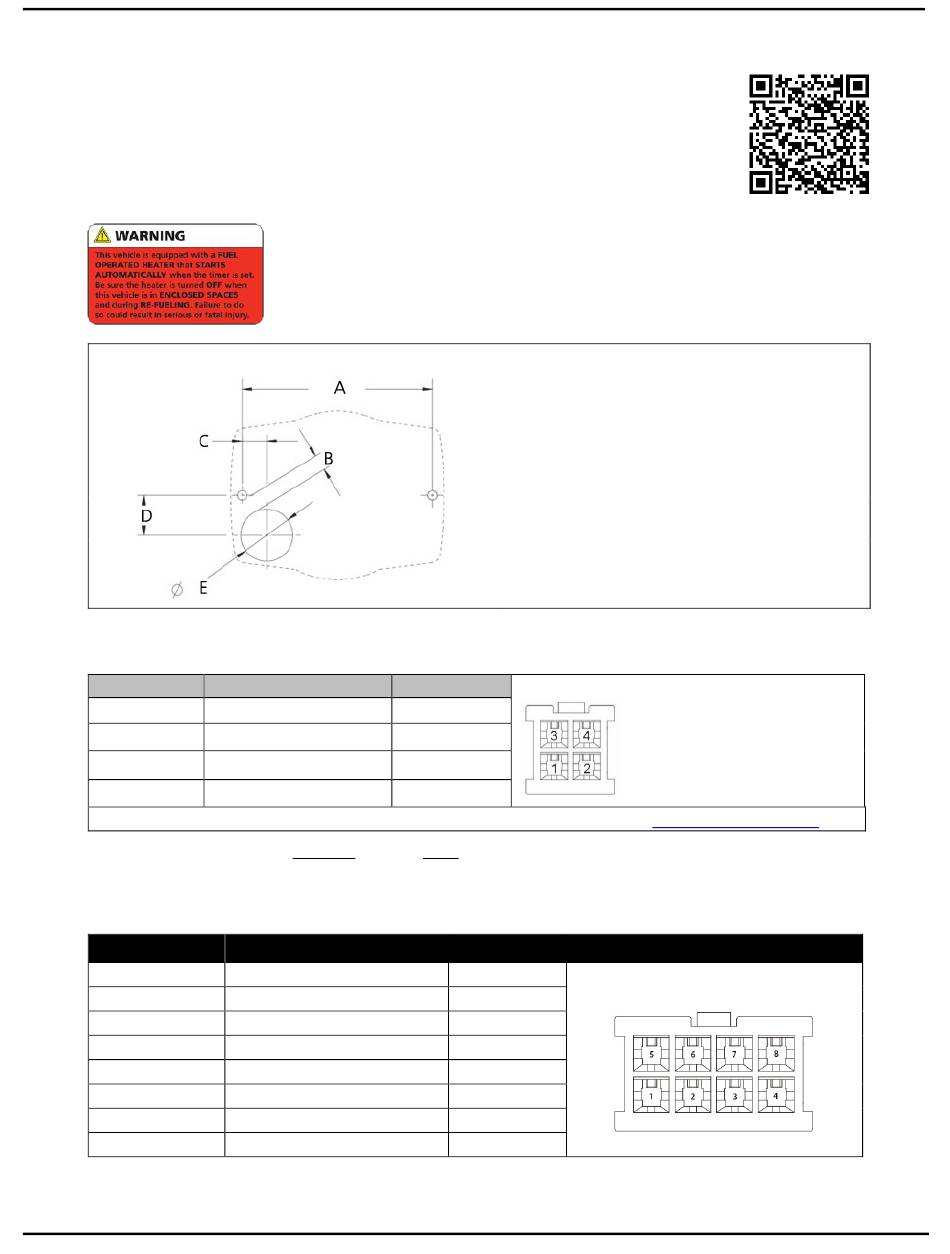

Quick Start Guide
A – 2 7/16 in (62 mm)
B – 3/16 in (5 mm)
C – 5/16 in (8 mm)
D – 1/2 in (13 mm)
E – 7/8 in (22 mm) – SmarTemp 2.0 Control
11/16 in (17mm) – SmarTemp 2.0 Control FX
Wire Color
Red
Brown
Black
Green
Wire Color
Red
Brown
Black
Orange
Blue
Yellow
Purple
Green
TERMINAL INSERT
SIDE OF CONNECTOR
Terminal-Insert
Side of Connector
