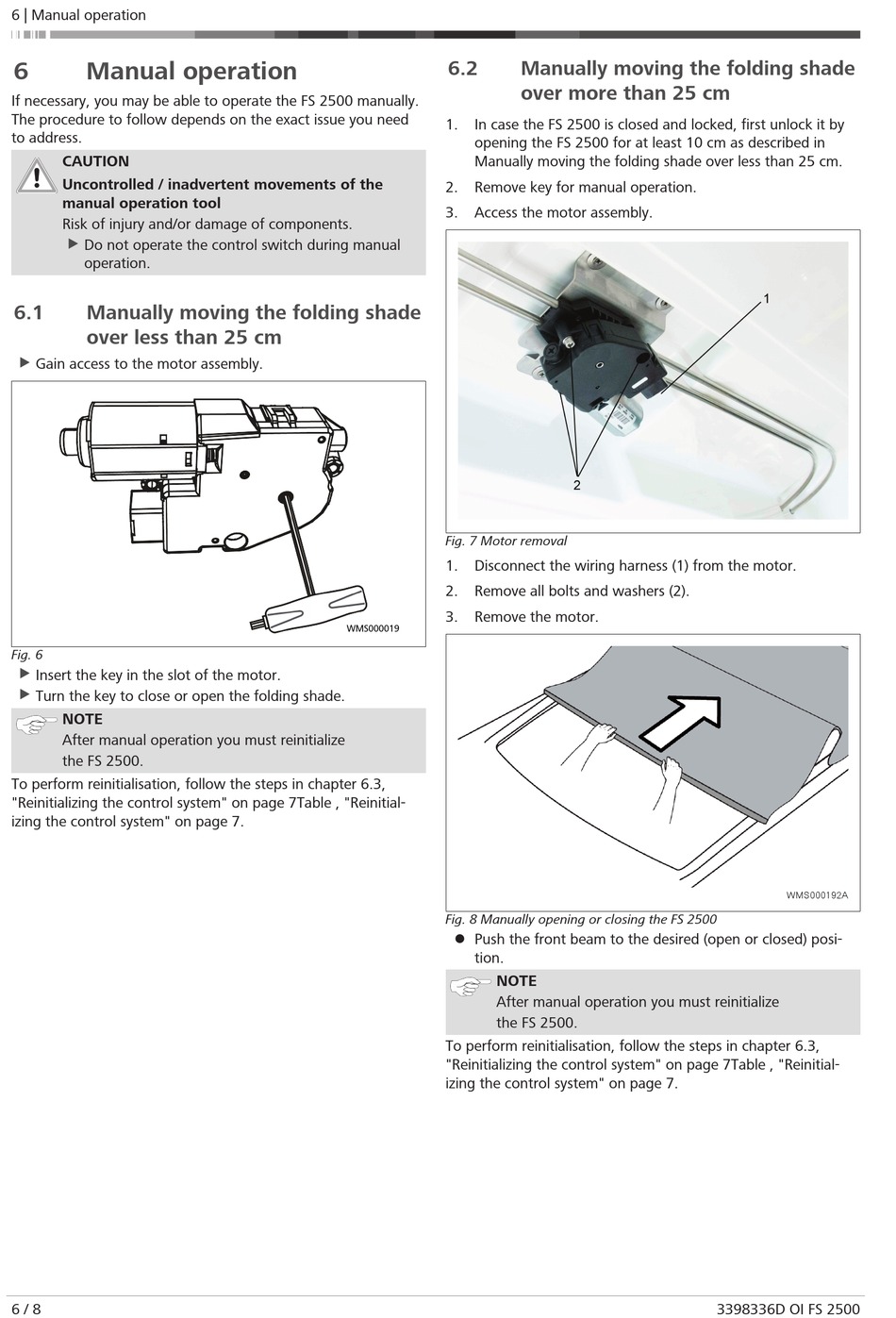

6 Manual operation
If necessary, you may be able to operate the FS 2500 manually.
The procedure to follow depends on the exact issue you need
to address.
CAUTION
Uncontrolled / inadvertent movements of the
manual operation tool
Risk of injury and/or damage of components.
u
Do not operate the control switch during manual
operation.
6.1 Manually moving the folding shade
over less than 25 cm
u
Gain access to the motor assembly.
Fig. 6
u Insert the key in the slot of the motor.
u
Turn the key to close or open the folding shade.
NOTE
After manual operation you must reinitialize
the FS 2500.
To perform reinitialisation, follow the steps in chapter 6.3,
"Reinitializing the control system" on page 7Table , "Reinitial-
izing the control system" on page 7.
6 / 8
6.2
1. In case the FS 2500 is closed and locked, first unlock it by
opening the FS 2500 for at least 10 cm as described in

Manually moving the folding shade over less than 25 cm.

2. Remove key for manual operation.
3. Access the motor assembly.
Fig. 7 Motor removal
1. Disconnect the wiring harness (1) from the motor.
2. Remove all bolts and washers (2).
3. Remove the motor.
WMS000019
Fig. 8 Manually opening or closing the FS 2500
l Push the front beam to the desired (open or closed) posi-
tion.
NOTE
After manual operation you must reinitialize
the FS 2500.
To perform reinitialisation, follow the steps in chapter 6.3,
"Reinitializing the control system" on page 7Table , "Reinitial-
izing the control system" on page 7.
Manually moving the folding shade
over more than 25 cm
