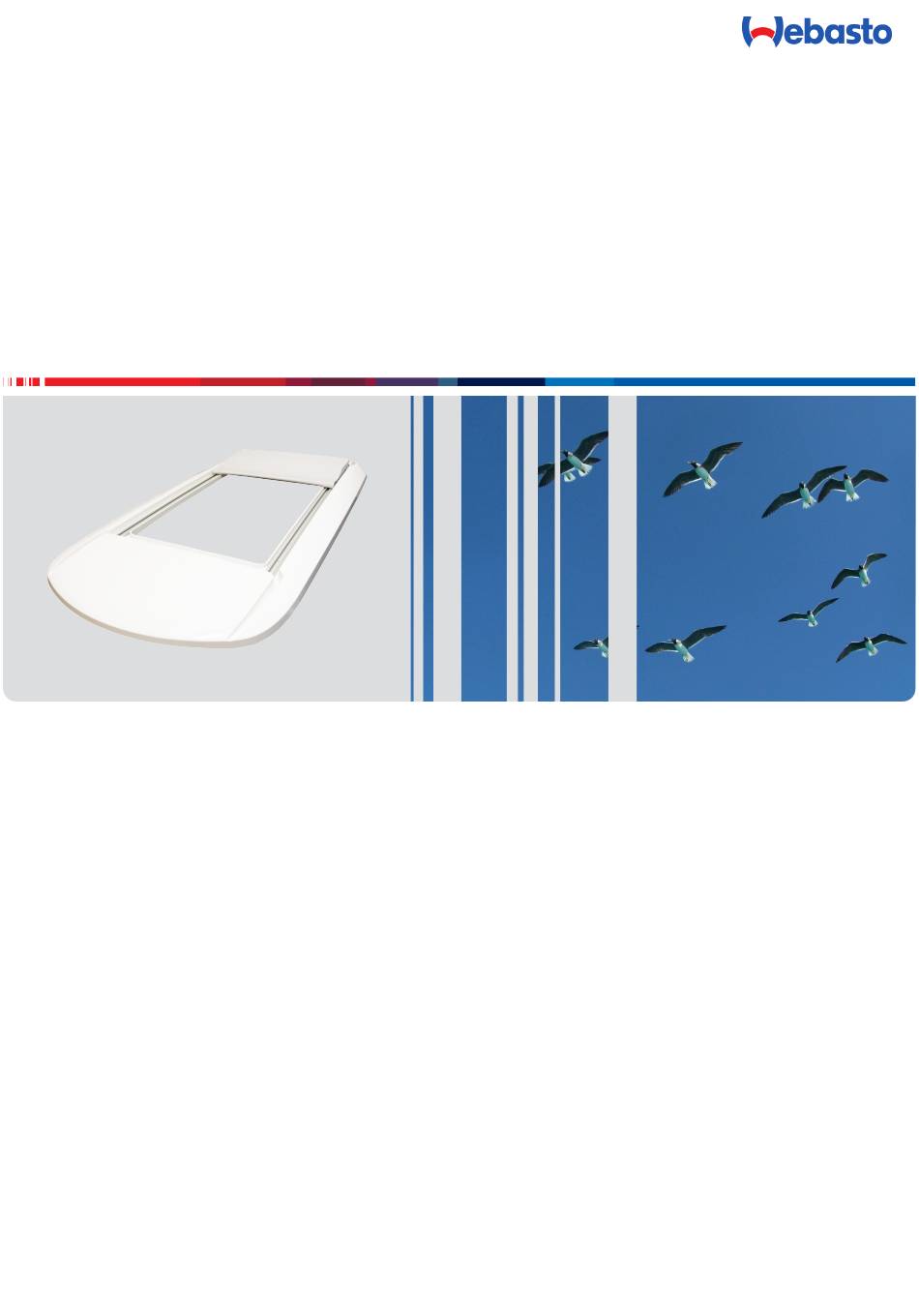

- Page 1 Operating Instructions FS 2500 Marine Shading Systems English...
-
Page 2: Table Of Contents
Manually moving the folding shade over less than 25 cm................ 6 Manually moving the folding shade over more than 25 cm................ 6 Reinitializing of the control system...... 7 Annex .......... 8 Technical data ............ 8 EC-Declaration of Incorporation......... 8 3398336C OI FS 2500... -
Page 3: About This Document

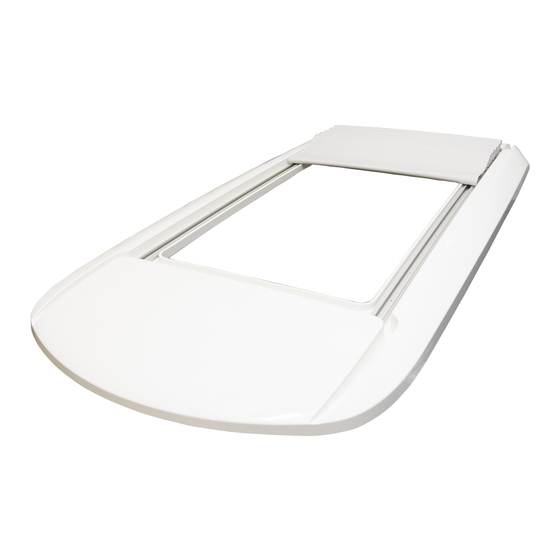

The Operating Instructions (OI) are an integral part of the The FS 2500 is an electrically operated marine folding shade sys- product and provide the information required to ensure correct tem for comfort purposes. The FS 2500 is designed for use on and safe operation. motor and sailing yachts. -
Page 4: Operation
One touch closing NOTE When this option is installed the folding shade closes up to The illustrations show the standard Webasto control 200 mm from the fullly closed position after briefly pushing the switch. The installed control switch can be different. -
Page 5: Maintenance
Apply a thin layer of grease to the inside of the guides. The FS 2500 still Contact your dealer for does not open / maintenance and / or re- close smoothly pair. after cleaning / greasing. -
Page 6: Manual Operation
25 cm to address. CAUTION In case the FS 2500 is closed and locked, first unlock it by opening the FS 2500 for at least 10 cm as described in Uncontrolled / inadvertent movements of the Manually moving the folding shade over less than 25 cm. -
Page 7: Reinitializing Of The Control System
Make sure that the available power source meets the require- ments as described in Technical data. Press and hold the Close button. – The FS 2500 closes as far as possible. Release the Close button. Press and hold the Close button. -
Page 8: Annex
7 | Annex Annex Technical data Description Value Operation Continuous electric Power 12 VDC, 20 A EC-Declaration of Incorporation Fig. 10 EC-Declaration of Incorporation 8 / 9 3398336C OI FS 2500... - Page 9 These are the original instructions. The English language is binding. You can request your language if it is missing. The telephone number of each country can be found in the Webasto ser- vice centre leaflet or the website of the respective Webasto representative of your country.
