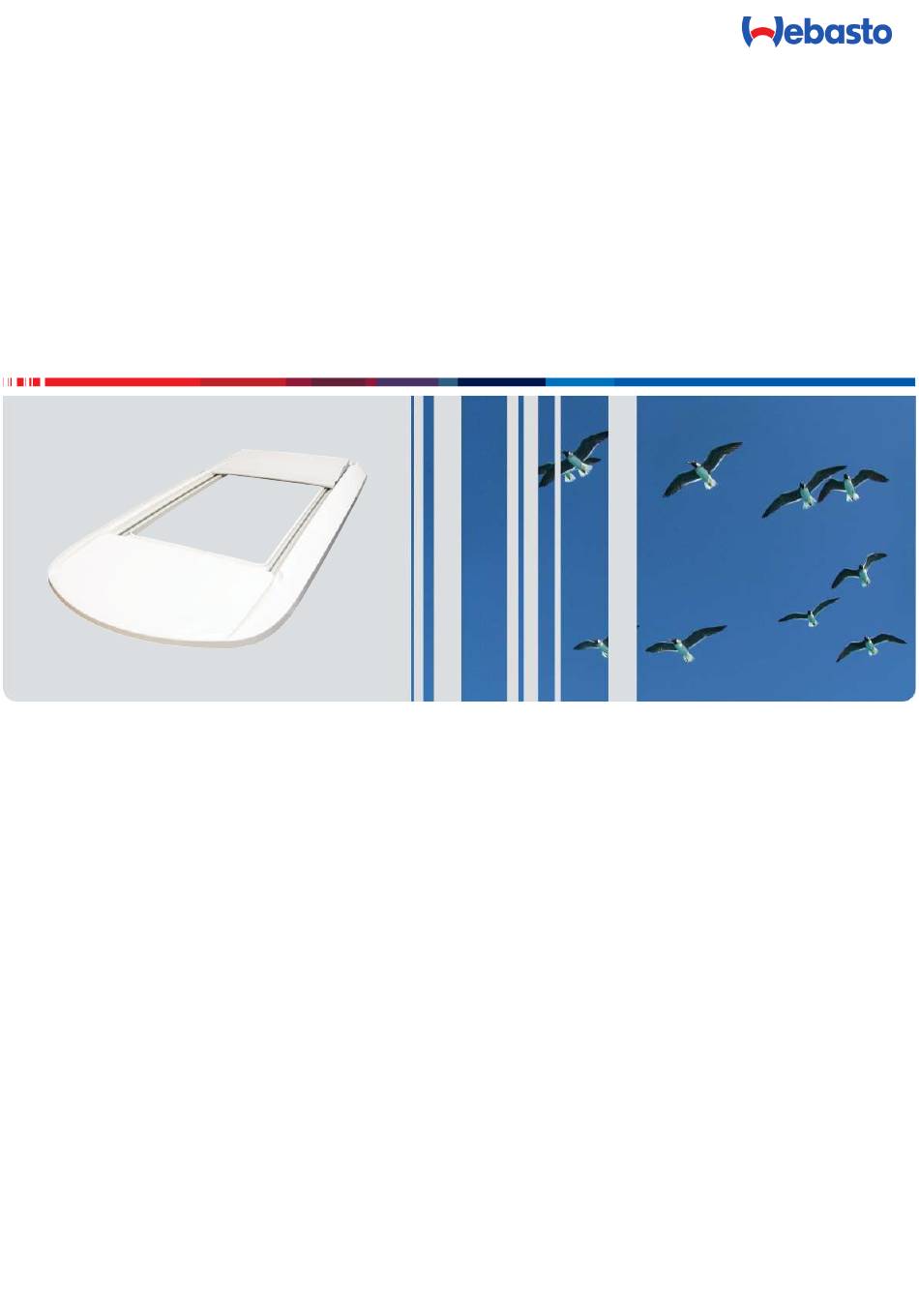

- Page 1 Operating Instructions FS 2500 Marine Shading Systems English...
-
Page 2: Table Of Contents
Manually moving the folding shade over less than 25 cm................ 6 Manually moving the folding shade over more than 25 cm................ 6 Re-initialization of the control system ...... 7 Annex .......... 8 Technical data ............ 8 EC-Declaration of Incorporation......... 8 3398336C OI FS 2500... -
Page 3: About This Document
The Operating Instructions (OI) are an integral part of the The FS 2500 is an electrically operated marine folding shade sys- product and provide the information required to ensure correct tem for comfort purposes. The FS 2500 is designed for use on and safe operation. motor and sailing yachts. -
Page 4: Operation
One touch closing NOTE When this option is installed the folding shade closes up to The illustrations show the standard Webasto control 200 mm from the fullly closed position after momentarily push- switch. The installed control switch can be different. ing the close button. This position is for safety reasons to make sure nobody gets trapped between the folding shade and the deck structure. -
Page 5: Maintenance
Fig. 4 Cleaning and greasing Initialization not Low power at mo- Check battery. Apply a thin layer of grease (Isoflex® Topas L32) to the in- possible. Increase wire thick- side of the guides. ness. 3398336C OI FS 2500 5 / 9... -
Page 6: Manual Operation
Push the front beam to the desired (open or closed) posi- tion. NOTE After manual operation the folding shade must be re- initialized. Follow the steps in Re-initialization of the control system to per- form reinitialisation. 6 / 9 3398336C OI FS 2500... -
Page 7: Re-Initialization Of The Control System
– The FS 2500 closes as far as possible. Release the close button. Press and hold the close button. – After approx. 10 s the FS 2500 slides with small steps until it is completely closed. – The motor produces a loud click sound. -
Page 8: Annex
7 | Annex Annex Technical data Description Value Operation Continuous electric Power 12 VDC, 20 A EC-Declaration of Incorporation Fig. 10 EC-Declaration of Incorporation 8 / 9 3398336C OI FS 2500... - Page 9 These are the original instructions. The English language is binding. You can request your language if it is missing. The telephone number of each country can be found in the Webasto ser- vice centre leaflet or the website of the respective Webasto representative of your country.
