2.5 Test Points
The C5515 eZdsp USB Stick has six (6) test points for the monitoring of signals. The
location of the test points are shown in the figure below.
TP1
TP5

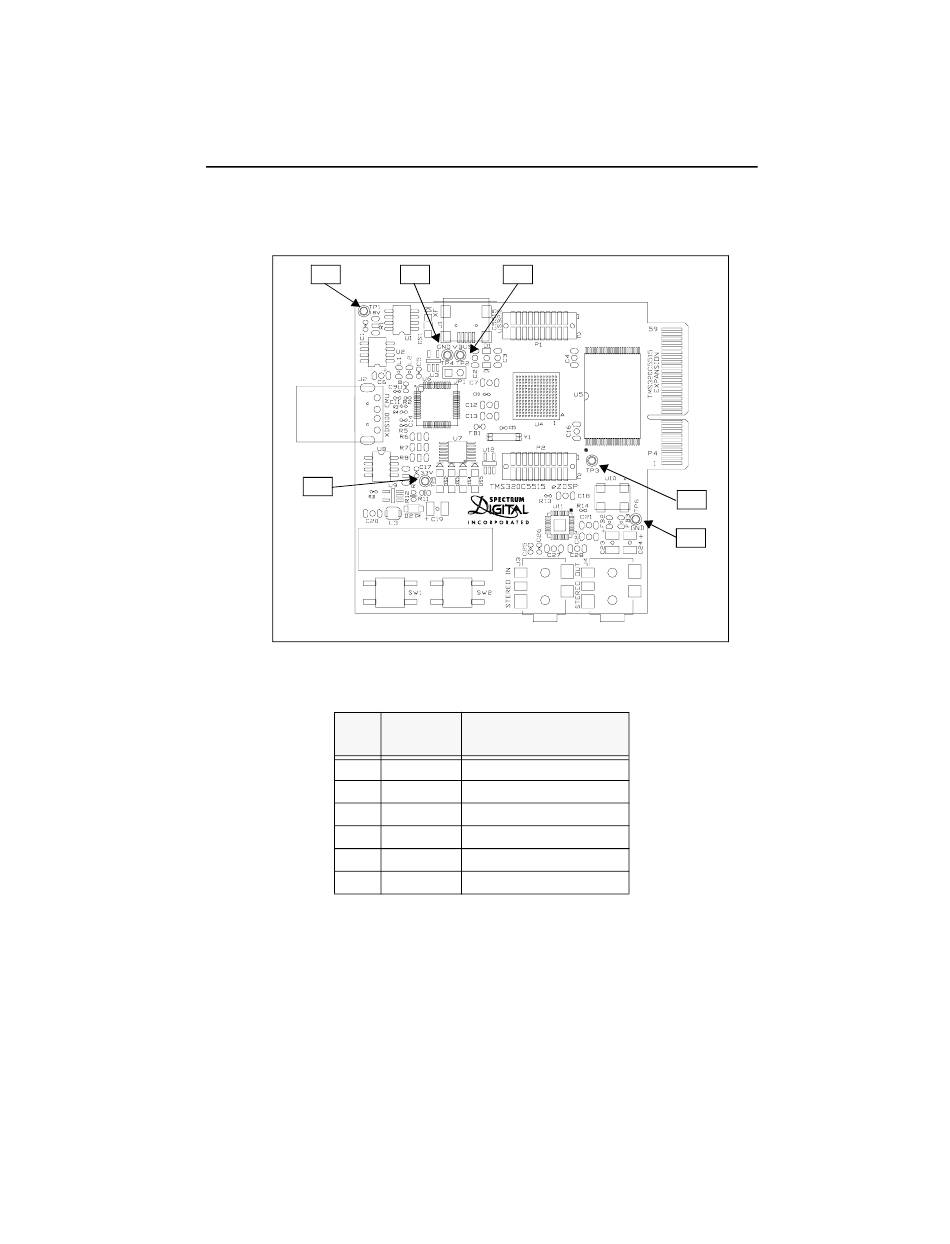

Figure 2-6, C5515 eZdsp USB Stick (top)
The signals on the test points are shown in the table below.
TP #
TP1
TP2
TP3
TP4
TP5
TP6
TP4 TP2
Table 14: Test Points
Schematic
Signal Name
Page
9 VCC_1V8
3 VBUS
3 CLKOUT
5 GND
9 VCC_3V3
10 GND
