Spectrum Digital eZdsp TMS320C5515 Technical Reference page 14

All manuals and user guides at all-guides.com
Spectrum Digital, Inc
2.1.2 J2, XDS100 USB Connector
The USB connector, J2, is used to attach the C5515 eZdsp stick to a personal computer
or laptop. The signals on the pins of this connector are shown below.

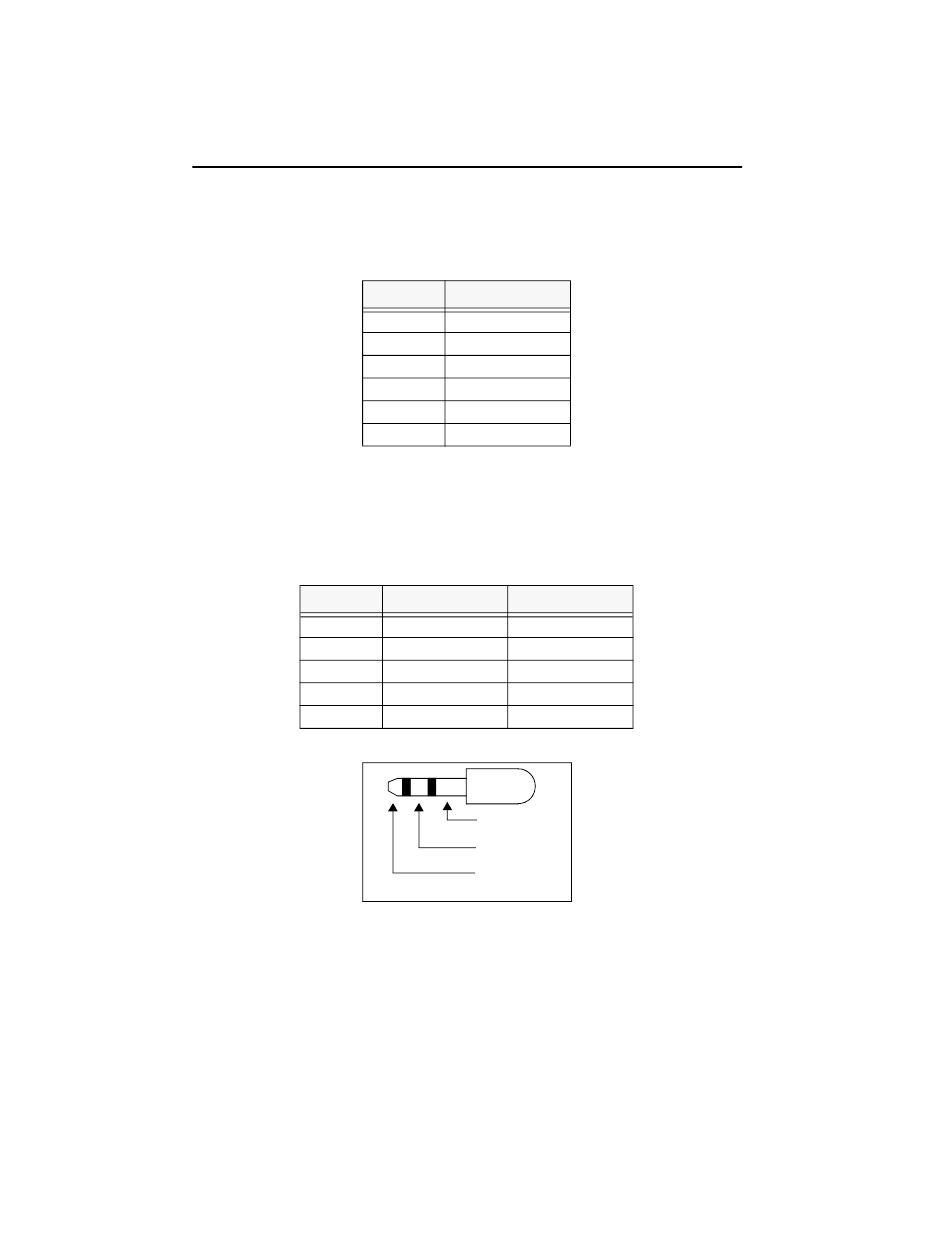

Table 4: J2, XDS100 USB Connector
2.1.3 J3, Audio In Connector
The Audio In connector, J3, is used to bring signals into the TLP320AIC3204 codec. The
signals on the pins of this connector are shown below.
Pin #
1
2
3
4
5
The figure below shows a typical stereo jack.
2-4
Pin # Signal Name
1 5V_USB
2 D+
3 D-
4 GND
5 Shield Ground
6 Shield Ground
Table 5: J3, Audio In Connector
Signal Name AIC3204 Pin #
GND-AIC
AIC_LINE2L
AIC_LINE2R
No connect
No connect
Ground
Right Line In
Left Line In
Figure 2-3, Audio In Jack
TMS320C5515 eZdsp USB Stick Technical Reference
15
