Spectrum Digital, Inc
2.1.8 P4, Expansion Connector
The Expansion connector, P4, is used to bring signals from C5515 DSP out to a
connector for user interface. This card edge connector has all of the odd number
(1,3,...,59) tabs on the top side of the board and all of the even number tabs (2,4,...,46) on
the bottom side of the board. The diagram below shows the position of these tabs.
Top Side View

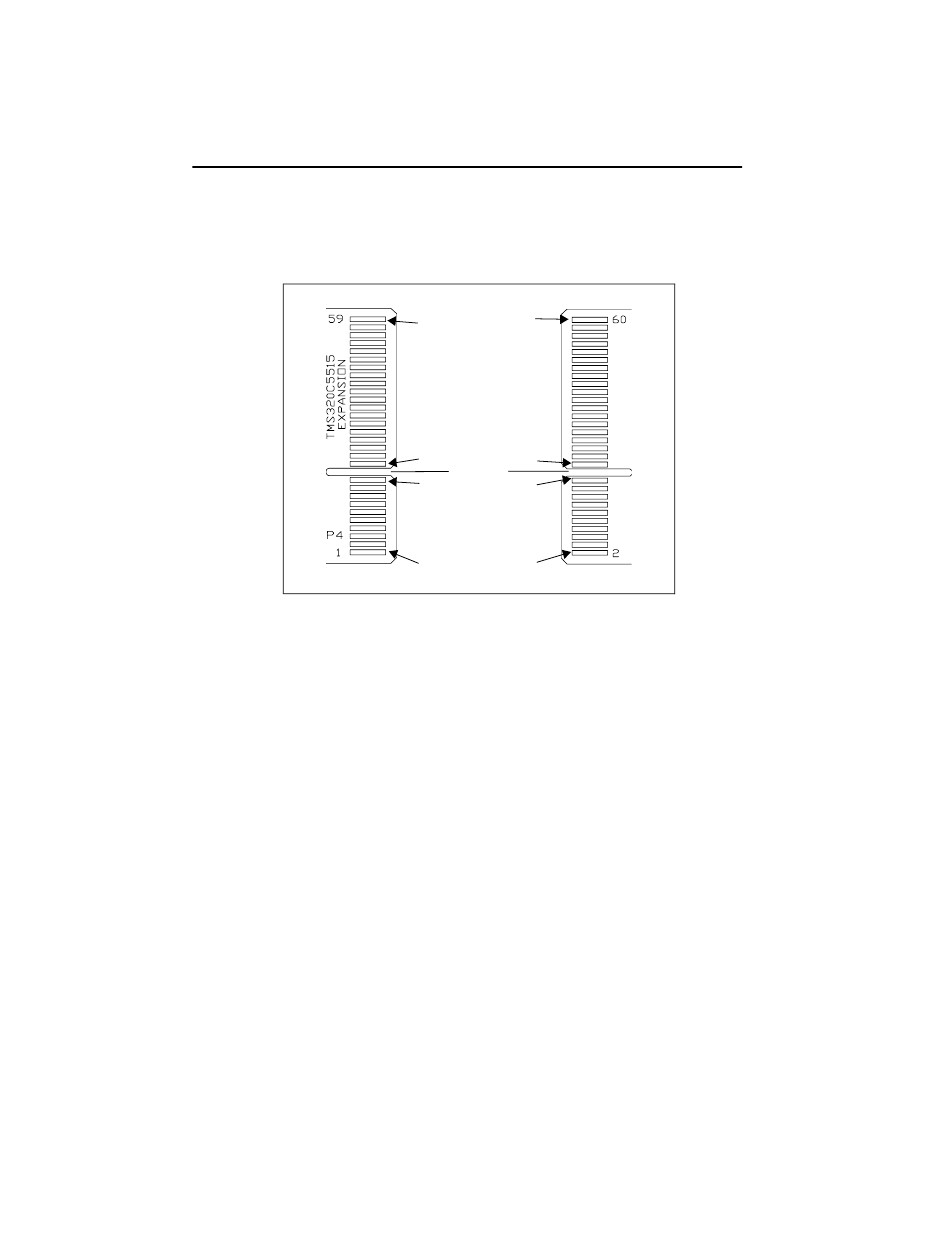

Figure 2-5, P4 Connector Tab Positions
2-8
Bottom Side View
Pin 60
Pin 59
Pin 23
Pin 24
Key
Pin 19 Pin 20
Pin 1 Pin 2
