BestCode NExT 8 Series Technical Manual page 275

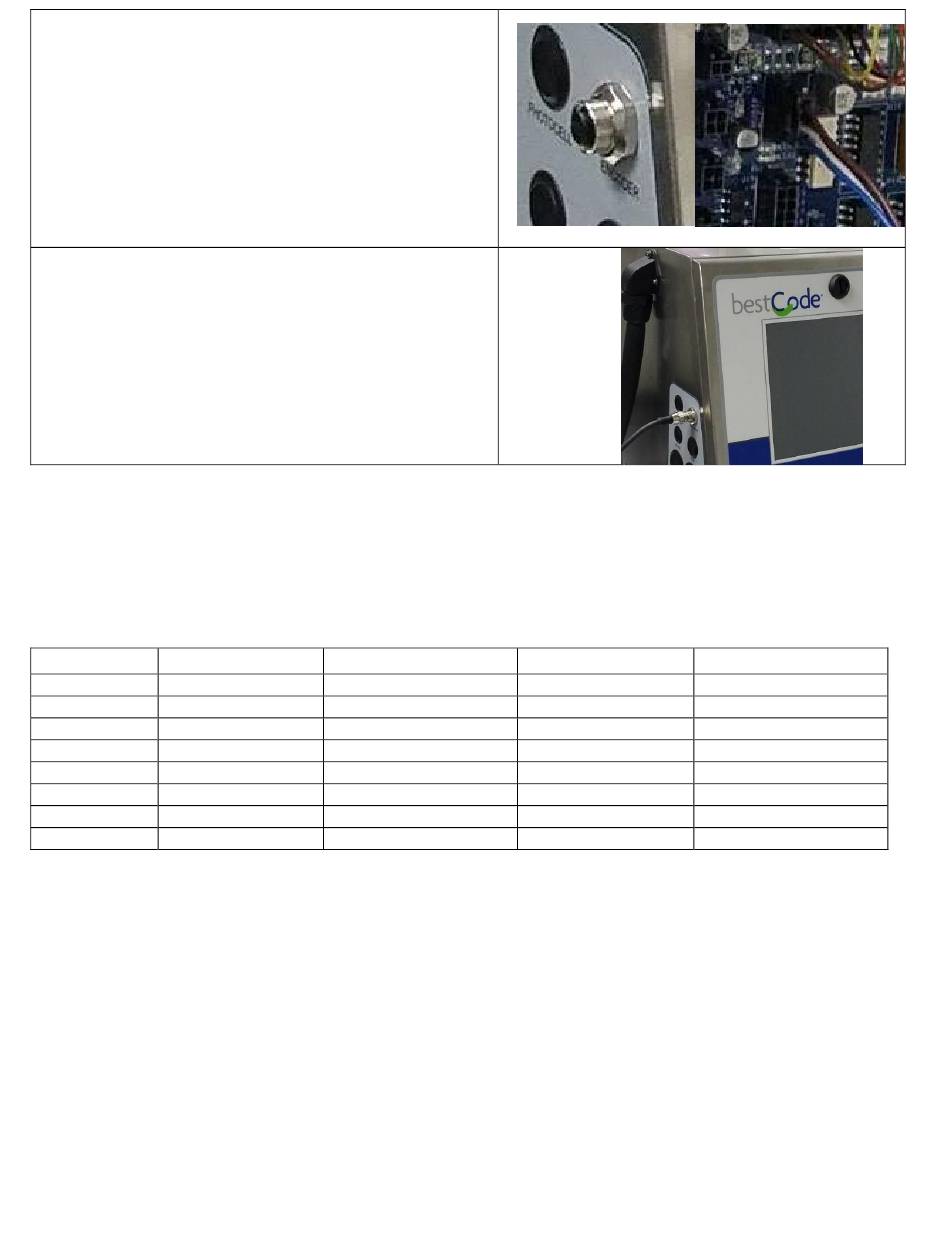

6. Install the Encoder cable.
7. Plug the Encoder cable into J15 on the board.
8. Lock the Electronic Compartment Door.
9. Install the M12 cable on the Encoder cable.
Wiring information
The peripheral devices for the Series 8 BestCode system use an array of connectors. For the Shaft Encoder,
Parallel, Photocell, and Auxiliary, Molex Microfit 3.0 ™ connectors and crimps are used.
Name Crimp
Alarm Molex 43030-0008
Shaft Encoder Molex 43030-0008
Parallel* Molex 43030-0008
Ethernet XXX
Photocell Molex 43030-0008
Auxiliary Molex 43030-0008
Serial XXX
USB XXX
*Parallel cable kit is available. Kit interfaces with Series 8 Bulkhead wall to maintain IP Rating.
Notes:
1) Hand wiring and routing of foreign Peripherals may cause lapse in IP Rating.
a. To ensure IP Rating, use only BestCode supplied Peripherals.
BestCode Next Series 8 Technical Manual
Housing
Molex 43025-0600
Molex 43645-0400
Molex 43025-1800
XXX
Molex 43025-0400
Molex 43025-0400
XXX
XXX
October 2022
Tool Cable
Molex 63819-0000 22 AWG Suggested
Molex 63819-0000 22 AWG Suggested
Molex 63819-0000 22 AWG Suggested
XXX CAT5 Patch
Molex 63819-0000 22 AWG Suggested
Molex 63819-0000 22 AWG Suggested
XXX DB9 Cable
XXX USB 2.0 or Higher
Page 261 of 290
