BestCode NExT 8 Series Technical Manual page 265

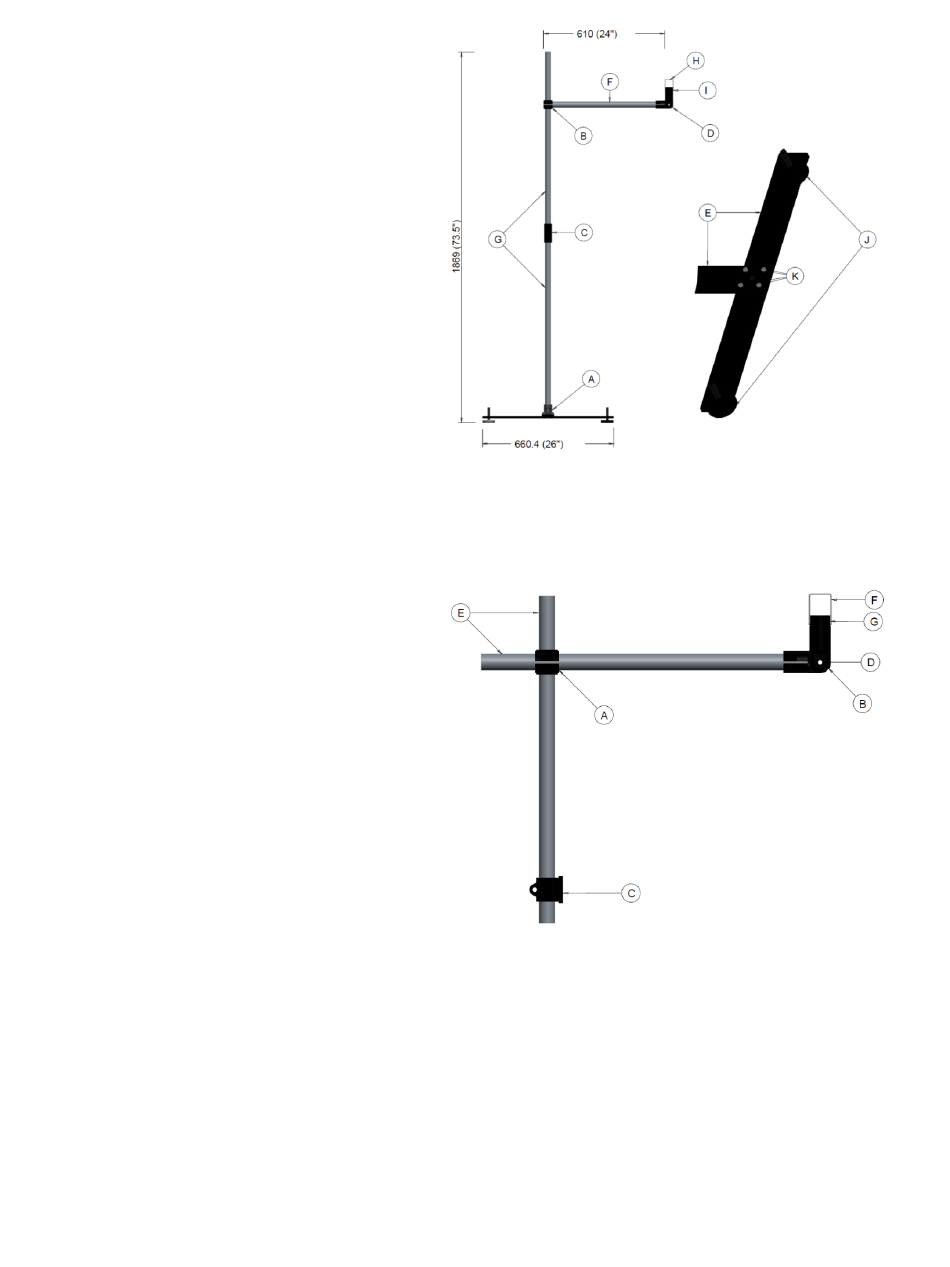

Printhead Floor Stand – 40-0003-01
Kit Parts:
A. 40-0005-01, CLAMP, 30MM BASE
B. 40-0006-01, CLAMP, CROSS 30MM
C. 40-0007-01, CLAMP, SLEEVE 30MM
D. 40-0008-01, CLAMP, HINGE 30MM
E. 22-0072-07, STAND, LEG
F. 22-0073-01, ROD, 30MM 2FT
G. 22-0074-01, ROD, 30MM 3FT
H. 25-0033-03, BRACKET, PH SHEET CLAMP
I. 22-0069-03, BRACKET, SPUD
J. 28-0137-01. LEVELING FOOT
K. 28-0135-01, M6X1X20mm SCREW
Height: 73.5" (1869mm)
Armature Load: 14 lbs @ 5'
Width: 38" / 26" (965mm / 660mm) max/min
Weight: 32 lbs / 14.5kg
Depth: 38" / 26" (965mm / 660mm) max/min
Conveyor Side Mount – 40-0004-01
Kit Parts:
A. 40-0006-01, CLAMP, CROSS 30MM
B. 40-0008-01, CLAMP, HINGE 30MM
C. 40-0009-01, CLAMP, FLANGE 30MM PLASTIC
D. 28-0110-01, HANDLE, ADJUST
E. 22-0073-01, ROD, 30MM 2FT
F. 25-0033-03, BRACKET, PH SHEET CLAMP
G. 22-0069-03, BRACKET, SPUD
Height: 24" (610mm)
Armature Load: 10 lbs
Width: 2" (51mm)
Weight: 9lbs (4.1kg)
Depth: 24" (610mm)
BestCode Next Series 8 Technical Manual October 2022 Page 251 of 290
