- Page 1 FullSpectrum Provisional instruction manual Version 1.0...
- Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your LEDko EXT FullSpectrum: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.
-
Page 3: Table Of Contents
Index 1. Packaging and transportation .....................Pag. 5 1.1 Packaging ............................Pag. 5 1.2 Transportation ..........................Pag. 5 2. General information ........................Pag. 5 2.1 Safety informations ........................Pag. 5 2.2 Warranty conditions ........................ Pag. 6 2.3 EC norms ............................. Pag. 6 3. Product specifications .......................Pag. 7 3.1 Technical characteristics ......................Pag. - Page 4 11. Maintenance ..........................Pag. 26 11.1 Firmware update ......................... Pag. 26 11.2 Periodic cleaning ......................... Pag. 26 11.3 Periodic controls ........................Pag. 26 11.4 Fuses ............................Pag. 26 12. F.A.Q. and answers ......................Pag. 27...
-
Page 5: Packaging And Transportation
Packing list Ensure the packaging contains: 1 Reflection LEDko EXT FullSpectrum 1 Instruction manual Transportation The LEDko EXT FullSpectrum should be transported in either its original packaging or in an appropriate flight case. . General information Safety informations Fire prevention: 1. -
Page 6: Warranty Conditions
3. The level of technology of LEDko EXT FullSpectrum requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. -
Page 7: Product Specifications
Product specifications Technical characteristics Power supply 90-230Vac, 50-60Hz Maximum current 0.80 A @ 230 VaC, 2.04 A @ 90 VaC Power factor Cosϕ = 0.98 Power consumption 180 watt Color temperature RGBW, with a perfect color mixing Weight (without optic) 16kg - 30.8lbs Maximum temperature da -10°C a 35°C... -

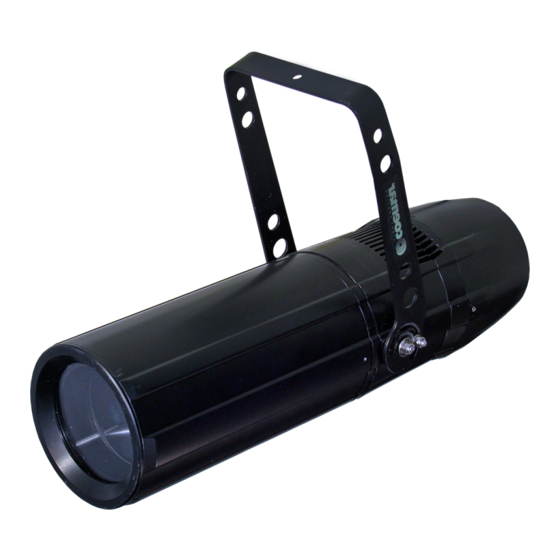

Page 8: Unit's Main Components
Unit’s main components Components description A Yoke with mounting holes B Cooling assembly C Optical holder tube D Locking screw for yoke... -
Page 9: Back Panel Description
Back panel description Display Plus Botton Menu Botton Minus Botton Enter Botton DMX Out DMX In Power In... -
Page 10: Installation
. Installation Mechanical installation LEDko EXT FullSpectrum may be hung from an appropriate structure in any position or on tripode. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the following diagram. -
Page 11: Adjusting Unit's Tilt
Adjusting unit’s tilt In order to adjust the tilt of the unit simply loose the side screw on the yoke, adjust the tilt and lock the yoke by tightening the screw again. 4.4 Optical group, framing system and gobos Follow these steps in order to configure the optical group properly: 1. - Page 12 4. It is possible to regulate the blades “D” to achieve the desired shape, use the four thumbscrews “E” that you can see behind the blades to free or block them; 5. It is possible to use the gobos, to do so open the gobo holder, insert a normal gobo or a glass gobo and close the gobo holder;...
-
Page 13: Powering Up
The unit may operates at voltages ranges from 90 to 230VaC at a frequency of 50 or 60 Hz. It is not needed to effect any setup procedures: LEDko EXT FullSpectrum will automatically adjust its operation to suit any frequency or voltage within this range. -
Page 14: Control Signal Connections
The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to • regulatory norms is strongly recommended. LEDko EXT FullSpectrum should not be powered through a dimmer as this may • damage the internal switching power supply. Prior to connecting the device to mains power, ensure that the mains characteristics •... -
Page 15: Turning On The Projector
1 to 11 from your DMX 512 controller. A second unit must be addressed as A012, a third one as A023 and so on. The operation must be carried out on every LEDko EXT FullSpectrum which has an address different from A001. Altering the DMX address: 1. -
Page 16: Dmx Chart
. DMX chart DMX Chart 11, 8, 4, 1 channels Tabella DMX (11/8/4/1ch ENG) channel number type of standard RGB effect decimal percentage control 11ch 8ch 4ch 1ch master dimmer proportional adjust luminous output intensity from 0 to 100% 0 - 255 0% - 100% proportional proportional control of the color percentage from 0 to 0 - 255 0% - 100% 100%... - Page 17 no effect 0 - 9 0% - 4% RED Preset 1 10 - 71 4% - 28% red tone step RED Preset 2 72 - 133 28% - 52% RED Preset 3 134 - 195 53% - 76% RED Preset 4 196 - 255 77% - 100% no effect 0 - 9...
-
Page 18: Display Panel Functions
Rapid count Through the display panel of LEDko EXT FullSpectrum it is possible to quickly change the various numbers displayed for the different functions in the following 3 manners: 1. Pressing the + or – buttons will cause the count to be quicker. -
Page 19: Main Functions Menu
Main functions menu (FUNC) Dimmer: diMM It allows to choose the type of dimmer curves between exponential, [Dimmer] logarithmic and linear (exponential as default) Test: Allows to set manually some different options: • Dimmer: it allows to set the luminous intensity; • Strobe: manually sets the strobe;... - Page 20 Fan Speed: • Auto: balance the fan speed in order to have maximum silence without compromising the light auto performance; [Fan Speed] • Low noise: sets minium fan speed to ensure a silent performance at the expens of light [Low noise] output in case of overheat.
- Page 21 Default Settings: Allows to restore the factory default dF.SE. of the fixture, with exception of DMX address and LED alignment. SURE [Default Settings] Measures: Allows to read all the parameters: LED and board temperatures, fan level, DMX ratio, DMX, allarms, channels MEAS.
-
Page 22: Measure (Meas)
Measures menu (MEAS) Temperature: tEMP t.LEd Shows the current temperature values: • LED: shows the LED module [LED Temperature] [Temperature] temperature; • Board: shows the electronic board temperature. t.brd [Board Temperature] Volt: Shows the power supply voltage. vOLt DMX Input: Shows the value of the DMX channels [Supply Voltage] received by the fixture on every... - Page 23 LED: Shows the percentage value of the LED status. Fre: Shows the operating frequency of the [LED Status] LED (611 Hz as default). Fan speed: Shows the percentage fan usage. Usage hours: Shows the hour counter of the fixture: • Unit: shows the overall hours of life of the fixture;...
-
Page 24: Electronic Alignment Of The Leds
The display panel of LEDko EXT FullSpectrum allows the electronic alignment of the LEDs, this procedure is performed by Coemar at the time of testing, this procedure may be useful for special effects or in case of replacement of internal components (PCBs, LEDs, etc...). -
Page 25: Special Functions Of The Fixture
Error messages If a malfunction occurs, LEDko EXT FullSpectrum has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center. -
Page 26: Spare Parts
Check all electrical connections, in particular for correct grounding and correct attachment of all extractable connectors. Press the connectors if necessary and reposition as before. 11.4 Fuses LEDko EXT FullSpectrum has an automatic fuse that in most cases does not need to be replaced. -
Page 27: F.a.q. And Answers
. F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service. Question Possible solution Projector not powered on: • Make sure the power cable is plugged in or test the input... - Page 28 User notes ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 29 English Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 30 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to effect modifications without notification...
