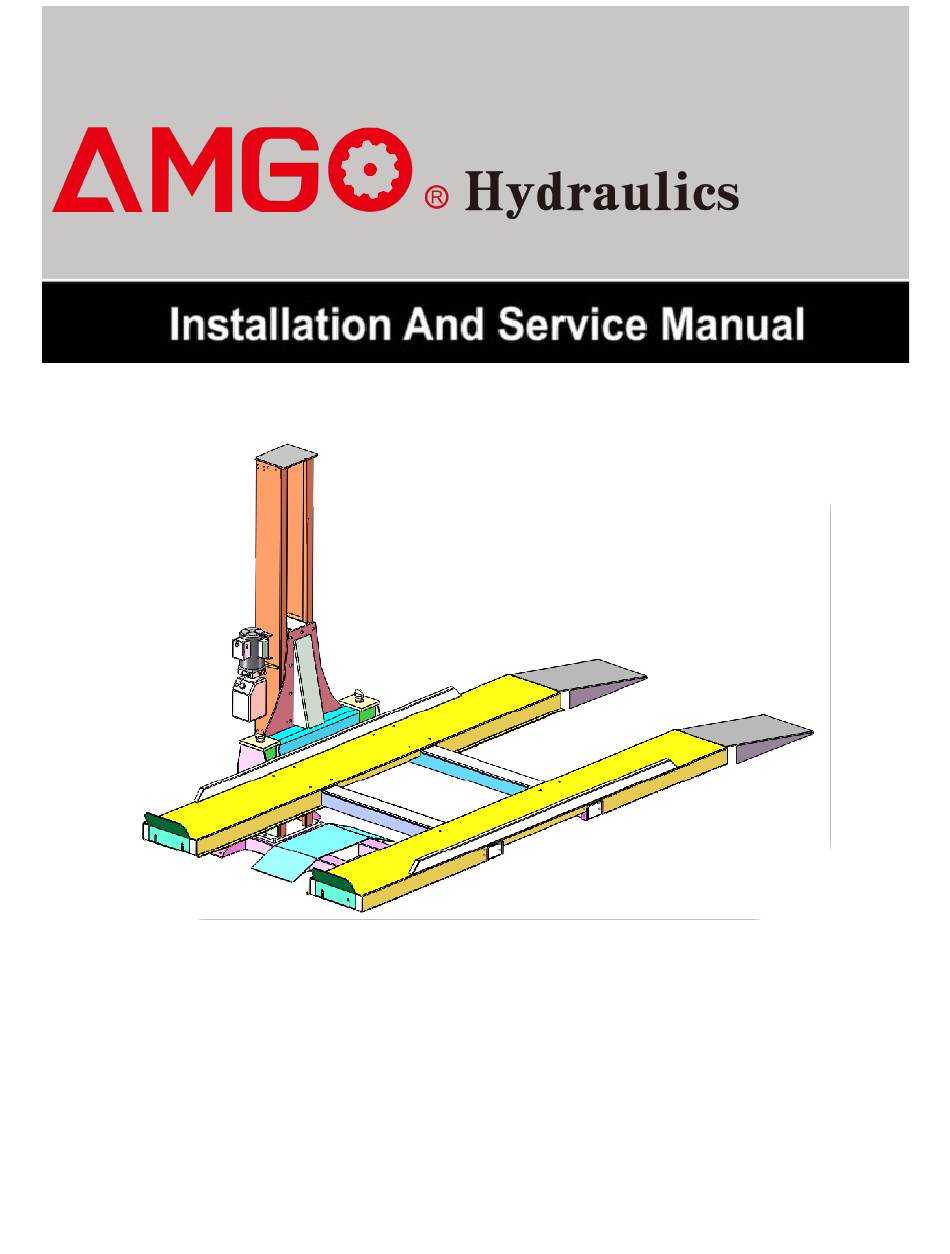

  • Page 1 Original Single-post Parking Lift Model: SPL-6...

  • Page 2: Table Of Contents

    CONTENTS Product Features and Specifications ............... 1 Installation Requirement ................2 Steps of Installation ..................4 Exploded View ....................13 Test Run ....................22 Operation Instruction .................. 24 Maintenance ....................25 Trouble Shooting ..................26 LIFT DISPOSAL ....................26...

  • Page 3: Product Features And Specifications

    I. PRODUCT FEATURES AND SPECIFICATIONS Fig.1 Single-post Parking Lift MODEL SPL-6 · Specially designed for parking. · Dual safety device, No air source, manual safety lock release · Non slip lifting platform · H-shaped lifting platform with reinforced column to provide excellent stability ·...

  • Page 4: Installation Requirement

    II. INSTALLATION REQUIREMENT A. TOOLS REQUIRED Carpenter’s Chalk Hammer  Screw sets  Level Bar   Tape Measure(7.5mm)  English Spanner(12″)  Pliers  Socket Head Wrench (4＃、5＃、6＃) Rotary Hammer Drill (Φ 3/4 )  Wrench set：( ＃ ＃ ＃...
  • Page 5 B. STORAGE AND INSTALLATION REQUIRMENT Keep or install the equipment in shaded, normal temperature, dry and ventilated environment. SPECIFICATIONS OF CONCRETE (See Fig. 3) Specifications of concrete must be adhered to the specification as following. Failure to do so may result in lift and/or vehicle falling. 1.

  • Page 6: Steps Of Installation

    III. STEPS OF INSTALLATION A. Location of installation Check and insure the installation location (concrete, layout, space size etc.) is suitable for lift installation. B. Check the parts before assembly 1. Packaged lift and hydraulic power unit (See Fig. 4) Fig.4 2.
  • Page 7 Parts Box (65) Fig.6 4. Check the parts of the parts bag according to the parts bag list (See Fig. 7) Fig.7 C. Lay the base flat to the ground, confirm installation place according to the ground state, the main purpose is to save space. (See Fig.8) Fig.8...
  • Page 8 D. Fix anchor bolts Using the prescribed rotary hammer drill, and drill all the anchor holes and install the anchor bolts. Then tighten the anchor bolts (See Fig. 9) Note: Torque of Anchors is 150N.m .Minimum embedment of Anchors is 4-3/8” . Fig.9 E.
  • Page 9 3. Fix column to the base plate. (See Fig.12) Fig.12 4. Install slider to the behind of lifting Platform (See Fig.13) 37-40 41-43 Slider Slider fixed plate Fig.13...
  • Page 10 5. Fixed the lifting platform to the carriage(See Fig.14) Fig.14 E. Install power unit ,oil hoses and clip (See Fig.15) Note: Tighten the oil hose fitting and power unit fitting to avoid oil leakage; Pay attention to the direction of power unit fitting. Please use Hydraulic Oil 46# 20-22 Lock the nut with 19’’...
  • Page 11 G. Install electrical system Connect the power source on the data plate of power unit. Note: For the safety of operators, the power wiring must contact the earth well. Single phase motor 1. Power supply wires (active wire L and neutral wire N) to terminals of AC contactor marked L1, L3 respectively.
  • Page 12 I. Install wheel assembly lign the cut of the platform with the square 1. Lifting the arm to the suitable position,a tube of the arm and connect it with bolts(Wash can be add up and down side). platform can be transferred and installation randomly. Connecting the arm and platform after the 16 holes of platform are alignment.
  • Page 13 J. Install the drive-in ramp, platform and the base guide plate (Fig.19): After the top plate is fixed, the two sides of the drive-in ramp and guide plate are bolted on both sides of the top plate. The boarding guide plate is directly stuck in the middle of the base. Guide plate Fig.19 K.
  • Page 14 L. Measure the vertical of the column with a horizontal ruler and correct the vertical of the column with a horizontal adjustment pad.(Fig.21) The horizontal ruler is from the front and side respectively. Measure whether the post is vertical 71-72 Shim Fig.21...

  • Page 15: Exploded View

    IV. EXPLOEDED VIEW Fig.22...
  • Page 16 PARTS LIST FOR SPL-6 Item Part# Description QTY. Note 101013 Platform 10206023 Self-Locking Nut M12 10217069 Hex Bolt M12*30 10420018 Self-Locking Nut M6 10203117 Hook adjusting screw M6*95 10101007 Chain 11101042 Curtain L=2570mm 10201010A Chain joint 207681 Chain Pulley seat assy.
  • Page 17 Item Part# Description QTY. Note 10201114 Lock wash φ20 10209128 Wash φ20 10420175A Hex Nut M20 1101082001A Lifting platform 10209153 Latch pull ring 1101082013A Platform 10209127 Hex bolt M12*35 10206006 Washer φ12 10206006 Washer φ12 10420026 Lock Washer φ12 10206023B Hex Nut M12 11410640 Drive-in ramp...
  • Page 18 1. Cylinder (10207010) Exploded View: Fig. 23 Item Part# Description QTY. Note 11207027 Piston Rod 11207028 Piston 10206069 O-Ring 10620053 Support Ring 10620054 Y-Ring 10630027 O-ring 10206071 Hex Nut 11207029 Piston rod adjusting sleeve 10217078 Dust Ring 10520058 O-Ring 11207030 Head Cap 10201034 Bleeding Plug...
  • Page 19 2. Chain Pulley Seat assy. (11207681)Exploded View: Fig.24 Item Part# Description QTY. 11207006 Pin for Chain Pulley Φ35*93 10420132A Bronze Bush Φ41.2*Φ35.1*20 11530023 Washer Φ44*Φ35.5*2 11207007 Chain Pulley Φ105*50 10430138 Socket Bolt M6*16 10209149 Lock washer Φ6 10420045 Washer Φ6 11207693 Chain limit block 10530042...
  • Page 20 3. Power Unit (071103) Exploded View: 110V/60HZ/1 Phase Manual Fig. 25...
  • Page 21 10209152 Magnet 85090167 Filter 81400290 Motor 81400412 Push button 10420070 AC connector 81400559 Cover of Motor Terminal Box 81400287 AMGO label 71111211 Throttle valve 81400560 Relief valve 81400266 Iron Plug 81400284 81400452 Handle for release valve 81400451 Plastic ball 10209020...
  • Page 22 8. Manual Power Unit (071104)Exploded View: 220V/60HZ/1 Phase Manual Fig. 26...
  • Page 23 PARTS LIST FOR MANUAL POWER UNIT (071104) ITEM Part# Description QTY. Note Rubber pad 81400180 Start capacitor 81400250 Run capacitor 81400200 Cup Head Bolt with Washer 10420148 Cover of capacitor 81400066 Motor connecting shaft 81400363 Manifold block 090101 Lock Washer 10209149 Iron Plug 81400276...

  • Page 24: Test Run

    Illustration of hydraulic Valve for hydraulic power unit Relief valve Oil return port Release Valve Throttle Oil output port valve Handle for Oil output port release valve Check Valve Fig. 27 V. TEST RUN 1. Adjust the lower speed (Fig.28) You can adjust the lower speed of the lift if needing: Turn the Throttle Valve in clockwise direction to decrease the lower speed, or increase the speed in counterclockwise direction.
  • Page 25 2. Test with load After finishing the above adjustment, test running the lift with load. Lift the lift in low position for several times first, make sure the lift can rise and lower without improper. And then test run the lift to top position completely. If there are anything improper, repeat the above adjustment.

  • Page 26: Operation Instruction

    VI. OPERATION INSTRUCTIONS To lift vehicle 1. Keep clean of site near the lift; 2. Position lift arms to the lowest position; 3. To shortest lift arms; 4. Open lift arms; 5. Position vehicle beside of the lifting arm, car should at the other side of the column; 6.

  • Page 27: Maintenance

    VII.MAINTENANCE SCHEDULE Monthly: 1. Check all connectors, bolts and pins to insure proper mounting; 2. Lubricate cable with lubricant; 3. Make a visual inspection of all hydraulic hoses/lines for possible wear or leakage; 4. Check Safety device and make sure proper condition; 5.

  • Page 28: Trouble Shooting

    VIII. TROUBLE SHOOTING TROUBLE CAUSE REMEDY Button does not work 1. Replace button Wiring connections are not in good 2. Repair all wiring connection condition Motor does AC contactor burned out 3. Repair or replace contactor not run Motor burned out 4.
