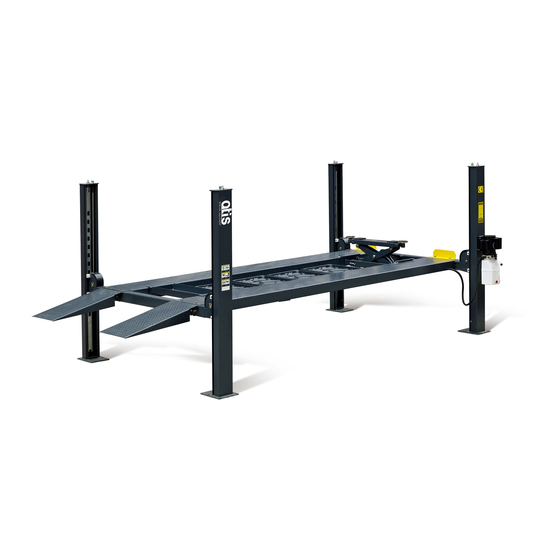

Four Post Parking lift
Model: 408-P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 408-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMGO 408-P

Summary of Contents for AMGO 408-P

  • Page 1 Original Four Post Parking lift Model: 408-P...

  • Page 2: Table Of Contents

    CONTENTS Product Features and Specifications ............1 Installation Requirement ................2 Steps of Installation ................4 Exploded View ..................23 Test Run ....................30 Operation Instruction ................31 Maintenance ..................32 Trouble Shooting ...................33 Car lift safety tips ..................33 Lift disposal ..................34...

  • Page 3: Product Features And Specifications

    I. PRODUCT FEATURES AND SPECIFICATIONS 4-POST MODEL 408-P FEATURES · Single point manual safety release. · Four mechanical locking devices, each equipped with both primary and secondly safety locks. · Power-side column can be installed at both side, front or rear.

  • Page 4: Installation Requirement

    II. INSTALLATION REQUIREMENT A. TOOLS REQUIRED  Tape Measure (7.5m) Carpenter’s Chalk   Hammer Screw Sets   Level Bar Pliers   English Spanner (12") Lock Wrench  Socket Head Wrench   Wrench set , 13 , 14 , 15 , 17 , 19...
  • Page 5 B. Equipment storage and installation requirements. The equipment should be stored or installed in a shady, normal temperature, ventilated and dry place. C. The equipment should be unload and transfer by forklift. Fig.3 D.SPECIFICATIONS OF CONCRETE (See Fig. 4) Specifications of concrete must be adhered to the specification as following. Failure to do so may result in lift and/or vehicle falling.

  • Page 6: Steps Of Installation

    minimum and in good condition of contacting with floor. III. STEPS OF INSTALLATION A. Check the parts before assembly 1. Packaged lift and Hydraulic Power Unit (See Fig. 5) Plastic oil tray Optional Fig. 2. Open the outer packing carefully, check the parts according to the shipment list. (See Fig.
  • Page 7 the parts inside the power-side platform, then remove the package stand. 5. Move aside the parts and check the parts according to the shipment parts list (See Fig. 8). Optional Parts Fig. 8 6. Open the carton of parts and check the parts according to the parts box list (See Fig.
  • Page 8 Fig. 9 7. Check the parts of the parts bag according to the parts bag list (See Fig. 10) Fig. 10 B. Use a carpenter’s chalk line to establish installation layout as per Table 1 Make sure the size is right and base is flat (see Fig.
  • Page 9 MODEL 173 3/4” 15 1/2” 203 3/8” 408-P 4415mm 2680mm 5165mm C. Install cross beams (See Fig.12, Fig.13) The power-side column need to be installed according to the installed position of the safety lock release handle. Hole towards inside Fig.
  • Page 10 D. Install the Safety Ladders. 1. Take off the pulley safety cover and unscrew a nut of the safety ladders, and then adjust the four lower nuts to be at the same position. Then install the safety ladder (See Fig. 14). Unscrew A nut of the safety ladders The plastic cover...
  • Page 11 Fig. 14 2. Install Safety Ladders (See Fig. 15). This height should be the same for four safety ladders Safety ladder pass through the hole of Fig. 15 the top plate, then tighten the two nuts E. Put the cross beams at the same height and lock on the safety ladder (See Fig.
  • Page 12 Lifting both cross beams to the same height, it is recommended Fig. 16 to about 1 meter height F. Install power side platform. 1. Install the power side platform on the cross beams by a fork lift or manual, offset the cross beams to the outside till the pulleys of both platforms can rest into the cross beams’...
  • Page 13 2. Install tire stop plate with bolts and washer on the platform: Tighten the platform on cross beam B with bolts, tighten the tire stop plate on cross beam A with bolts Note: The bolts for the side with tire stop plate is longer, pay attention when choosing the bolts (See Fig.18) Tighten the platform...
  • Page 14 G. Install offside platform and plastic block, then install the bolts for the platform strengthen plate, check the plumbness of columns with level and adjusting with the shims (See Fig. 19). Install the bolts for the platform strengthen plate Level bar Position the slide blocks along the bent edges of the columns.
  • Page 15 Note: DO NOT completely tighten the limit slide blocks. Loosen 1/4 lap after tightening. H. Illustration for cable installation 1. Pass through the cables from the platform to the columns according to the number of the cables (See Fig. 20) Install the cylinder connecting plate as shown and pay attention to the...
  • Page 16 Length 115 3/4” 336” 171 1/4” 280 1/4” (inc. connecting fitting) 2940mm 8535mm 4350mm 7120mm Cable installation diagram Fig. 2. The cable goes through the cross beam to top plate of columns and be screwed with cable nuts (See Fig. 21). Cable goes between the Cable pass through top big pulley and tension...
  • Page 17 3. Illustration for platform cables (See Fig. 22). Limit slider ○ Cable ○ Cable ○ ○ Cable Cable ○ ○ Cable Cable ○ Cable ○ Cable ○ Cable ○ Cable ○ Cable ○ Cable ○ Cable ○ Cable...
  • Page 18 Fig. I. Install release handle assy. See Fig.23 Noted: Power unit must be installed near the safety release handle. Cross beam B View B Cross beam A Fig. 23 View A Safety lock Safety lock rotated Safety lock connecting assy. device connecting bar According to the above diagram, fix lock release...
  • Page 19 View B According to the above diagram, fix safety lock Install extend lock release handle and connecting bar and safety lock connecting by plastic ball M8*35 bolts and washers on cross beam B. J. Install power unit and connecting tube (See Fig.
  • Page 20 Fig. 24 Fix the connecting tube and the connecting bar for safety device by M8*25 socket bolts K. Install Hydraulic System 1. For power unit attached to the column of cross beam A (See Fig. 25) Note: Oil hoses connected to oil cylinder must be passed above the cable to avoid the oil hose scratched by cable.
  • Page 21 Fig. The oil hose and oil return hose pass through the protective hose and connect to the power unit L. Install Electrical System Connect the power source on the data plate of Power Unit. Note: For the safety of operators, the power wiring must contact the floor well. Single phase motor (See Fig.
  • Page 22 Fig. N. Install drive-in ramp, optional jack tray and optional plastic oil pans (See Fig. According to the below diagram screw up the M16*30 bolts, then attach the drive-in ramp. 64 (Optional) 68 (Optional) Screw the M16*30 bolts to the side hole of the cross beam Attach the drive-in ramp with the bolts...
  • Page 23 1104533026A Folding ramp 2 1104543021 Connecting Pin Snap Ringφ10 10209010 O. Install Rear wheel stop plates (See Fig. 29) After driving the vehicle on the lift, flip up the front part of the drive-in ramps. Fig. 29 P. Optional kits installation. 1.
  • Page 24 Item Part# Description QTY. Note 65-1 11410042A Support bracket 65-2 10209125 Hex bolt M10*30 65-3 10209039 Lock washer φ10 Washer φ10 65-4 10209022 65-5 10209021 Hex nut M10 65-6 10410035 Plastic wheel Connecting pinφ19*216 65-7 11410034 Hair Pinφ3.2 65-8 10209012 Q.

  • Page 25: Exploded View

    IV. EXPLODED VIEW Model 408-P...
  • Page 26 Fig. 33 PARTS LIST FOR MODEL 408-P Item Part# Description QTY. Note 11410001 Power-side Column 11410002 Offside Column 11410003 Cross Beam A 11410004 Offside Platform 11410005 Power-side Platform 11410006 Cross Beam B 1104533025C Folding ramp assy. 10209043 Hex Bolt M8*20 Washer φ8...
  • Page 27 Washerφ16 10420029 Hex Bolt M16*35 10410014 11410116-1 Tire stop plate 10206006 Washer φ12 Lock washer φ12 10420026 10410105 Hex Bolt M12*20 10410016A Plastic block 81*38*38mm 10410017 Socket boltM8*40 10201090 Shim (1mm) 10620065 Shim (2mm) Item Part# Description QTY. Note Cable ○ 1 L=2940mm 410019 Cable ○...
  • Page 28 11410040 Jack tray 1040801 Caster kits 96600002 Sliding jack J5H 10410039 Plastic oil tray 4.1 CYLINDERS （10410009） 12-1 12-2 12-3 12-4 12-5 12-6 12-7 12-8 12-9 12-10 Fig. 34 12-11 12-12 Parts For Cylinder Item Part# Description QTY. Note 12-1 11410044 Head Cap 12-2...
  • Page 29 12-5 10410104 Y- Ring 12-6 10201031 O- Ring 12-7 11410046 Bore Weldment 12-8 11410047 Piston Rod 12-9 11410049 12-10 10520052 Support Ring 12-11 10201030 Y- Ring 12-12 11410048 Piston 4.2 CROSS BEAM (10410003-01/10410006-01) Fig.35 Item Part# Description QTY. Note Snap Ring φ25 10206032 Spring φ14*φ2.5*100 10410099...
  • Page 30 3-14 11420171 3-15 11420175 Slack-cable safety lock (Left & Right) 2 each 3-16 11420172 Pin Bush For Slack-cable safety lock 3-17 10206019 Snap ring φ19 Snap ring φ16 3-18 10420037 3-19 11420038 3-20 10420138 Socket Bolt M6*16 3-21 10209149 Lock washer Washer φ6 3-22 10420045...
  • Page 31 Item Part# Description QTY. Note 81400180 Rubber Pad 81400250 Start Capacitor 81400200 Run Capacitor 10420148 Cup Head bolt with washer 81400066 Capacitor cover 81400363 Motor Connecting Shaft 80101013 Manifold Block 10209149 Lock washer 81400276 Iron Plug 81400259 Rubber Plug 85090142 Socket Bolt 81400280 Gear Pump...

  • Page 32: Test Run

    81400566 Check Valve Oil suction hose 81400288 Oil return hose 81400289 81400364 clamp Oil tank cover 81400263 81400320 Oil tank Illustration of hydraulic valve for hydraulic power unit Relief valve Oil return port Release valve Throttle valve Oil outlet Handle for relief valve Oil outlet Check valve...

  • Page 33: Operation Instruction

    the synchronous adjustment till the four safety devices can lock and release at the same time. 5. Adjust the clearance between the column and the plastic slider of cross-beam, make sure the plastic slider can be slid in the column smoothly. Do not tighten too much of the sliding block.

  • Page 34: Maintenance

    To lower vehicle 1. Be sure the clearance of around and under the lift, only leaving operator in lift area. 2. Press the control button, the lift will be raised for 3-5 seconds, and then press the safety release handle, make sure the safety device released, press the release valve handle by the other hand, then the lift starts being lowered automatically.

  • Page 35: Trouble Shooting

    TROUBLE CAUSE REMEDY 1. Button does not work 1.Replace button 2.Wiring connections are not in good 2.Repair all wiring connections Motor does condition not run 3. Motor burned out 3.Repair or replace motor 4. AC contactor burned out 4.Replace AC contactor 1.Motor runs in reverse rotation 1.Reverse two power wire 2.

  • Page 36: Lift Disposal

    IX. Car lift safety tips Put this safety tips in a place where you can always alert the operator. Please reference to the lift manufacturer’s manual for specific information about the lift. 1. Check the lift daily. If the machine breaks down or has damaged parts, do not operate, and use the parts of original equipment to repair.
  • Page 37 AMGO HYDRAULIC CORPORATION 1931 Joe Rogers Blvd, Manning, South Carolina, Zip:29102 Tel: (803) 505-6410 Fax: (803) 505-6410 Manual Part No.: Revision Date 2023/01...
