AMGO SL-6 Installation And Service Manual

Single post lift
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Original
SINGLE POST LIFT
Model:SL-6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMGO SL-6

Summary of Contents for AMGO SL-6

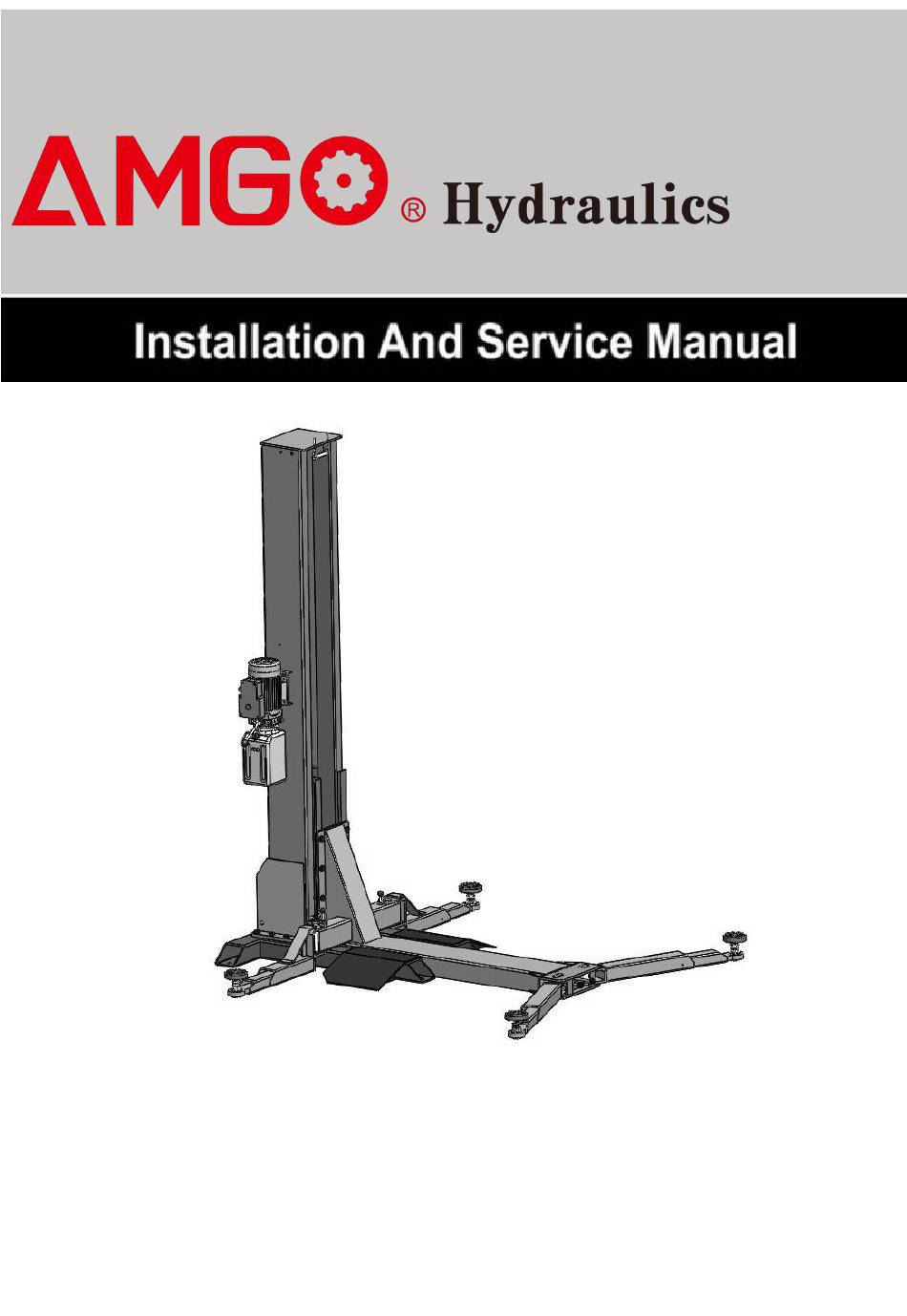

  • Page 1 Original SINGLE POST LIFT Model:SL-6...

  • Page 2: Table Of Contents

    CONTENTS I. PRODUCT FEATURES AND SPECIFICATIONS ....................1 II. INSTALLATION REQUIREMENT ........................3 III. STEPS OF INSTALLATION ..........................5 IV. EXPLODED VIEW ............................. 13 V. TEST RUN ................................21 VI. OPERATION INSTRUCTIONS ........................22 VII. MAINTENANCE SCHEDULE ......................... 23 VIII. TROUBLE SHOOTING ..........................

  • Page 3: Product Features And Specifications

    PRODUCT FEATURES AND SPECIFICATIONS CHAIN-DRIVE SINGLE POST MODEL SL-6 FEATURES · Compact design. · Hydraulic cylinders, designed and made on ANSI standard, utilizing NOK oil seal in cylinder. · Self-lubricating UHMW Polyethylene sliders and bronze bush. · Manual release safety lock, two-stage lock system ·...
  • Page 4 Arm Swings View Fig.2...

  • Page 5: Installation Requirement

    INSTALLATION REQUIREMENT A. TOOLS REQUIRED Rotary Hammer Drill(Φ19)  Carpenter’s Chalk  Screw sets Hammer Level Bar  Tape Measure(7.5mm) English Spanner(12″)  Pliers Wrench set：(10  Socket Head Wrench：(4 ＃ ＃ ＃ ＃ ＃ ＃ ＃ 、13 、14 、12 、5 、6 ＃...
  • Page 6 B. Equipment storage and installation requirements. The equipment should be stored or installed in a shady, normal temperature, ventilated and dry place. C. SPECIFICATIONS OF CONCRETE (See Fig. 4) Specifications of concrete must be adhered to the specification as following. Failure to do so may result in lift and/or vehicle falling.

  • Page 7: Steps Of Installation

    III. STEPS OF INSTALLATION A. Location of installation Check and insure the installation location (concrete, layout, space size etc.) is suitable for lift installation. B. Check the parts before assembly Packaged lift and hydraulic power unit (See Fig. 5) Column Power Unit Base Carriage...
  • Page 8 2. Take off the packaging on the machine. Take off the packing rack. 3. Move aside the parts and check the parts according to the shipment parts list. (See Fig.6 & 7) Fig.6 Part box （65） Fig.7 4. Check the parts of the parts bag according to the parts bag list (See Fig.8) Fig.8...
  • Page 9 C. Lay the base on the ground, confirm installation place according to the ground state, the main purpose is to save space. (See Fig.9) Fig. 9 D. Install column and lift platform 1. Lay the column on the ground. (See Fig.10) Fig.
  • Page 10 3. Fix column to the base plate. (See Fig.12) 4. Fix lifting platform to carriage. (See Fig.13) Fig. 13 Fig. 12...
  • Page 11 E. Install safety device, power unit, oil hose and wire holder (See Fig.14) Note: Tighten the oil hose fitting and power unit fitting to avoid oil leakage; Pay attention to the direction of power unit fitting. Tighter the screw with 19# wrench set after install power unit fitting.
  • Page 12 F. Install plastic barrier (See Fig.15) Clip support Clip support The plastic barrier passes through here Fig.15 G. Connect the power source according to the data on plate of power unit Note: For the safety of operators, the power wiring must contact the floor well Single phase motor (See Fig.
  • Page 13 H. Install lifting arms (see Fig.17); Lowing the carriages down to the lowest position, then use the 6# wrench to loosen the nut (See Fig. 18) Adjust the arm lock as arrow direction (See Fig. 19). Adjust moon gear and arm lock to make it to be good engagement, then tighten the nut of arm lock (See Fig.
  • Page 14 I. Tighten all the hydraulic fittings, and fill the reservoir with hydraulic oil. Note: In consideration of Hydraulic Power Unit’s durability and keep the equipment running in the perfect condition, please use Hydraulic Oil 46#. J. Using level to measure and adjust the column to be vertical. Use level to measure the column by front and side to make sure the column...

  • Page 15: Exploded View

    Ⅳ. Exploded View Model：SL-6 Fig.24...
  • Page 16 PARTS LIST FOR SL-6 Item Part# Description QTY. Note Top Plate assembly 11101013 10206023 Self-Locking Nut M12 Hex Bolt 10217069 Cap Head Bolt 10209009 10209012 （φ3.2）Spring Pin Power Side Safety Device 11203002 Safety Spring 10209007 11209008 Safety Cover 11217048 wire clip...
  • Page 17 Item Part# Description QTY. Note 10101034 Outside arm assembly 10520023 Spring for shaft φ38 11209030A Lifting arm latch assembly 10420175A M20 Hex nut 10101001 M20*45 Hex Bolt 11101016 Lifting platform assembly 10209025 φ4*25 Elastic pin 10209026 Compression spring φ1.4 10203054 Rubber pad assembly 10101006 Screw M6*12...
  • Page 18 4.1. Rubber Pad Assembly（10203054）exploded view： Fig.25 Description Item Part# 10420043 M8*20 Hex Bolt Rubber pad 10203043 Support pad assy. 11203026 10201060 O-ring（70°） 11203025 Adjusting screw 10203041 Retaining ring 11203024 Adjustment Screw 10203042 Retaining ring 4.2 Outside Arm Assembly（10101033）exploded view： Fig.26 Description Item Part#...
  • Page 19 4.3 Inside Arm Assembly（10101034）exploded view： Fig.27 Item Part# Description 10209032 M8*25 Hex bolt M8*25 10209034 washerφ8 10209033 washerφ8 10209035 Moon gear 11203101 Inside Outer arm assy. 10201149 M8*12 Screw 11102006 Inside Inner arm assy. exploded view 4.4 Cylinder Assy.（10207010） ： Cylinder Explode View Fig.28...
  • Page 20 Item Part# Item Part# Description Description Piston Rod 11207027 11207029 Adjustment Tube Cylinder Piston Dust Ring 11207028 10217078 O-Ring 10206069 10520058 O-Ring Support Ring Head Cap 10620053 11207030 10620054 Y-Ring 10201034 silencer O-ring O-Ring 10630027 10207031 Cylinder Tube 10206071 Hex Nut 11207032 4.5 Chain Pulley Support Assy.（...
  • Page 21 Description Item Part# Description Rubber pad AC connector 81400180 41030055 Start capacitor Cover of Motor 81400130 81400287 Terminal Box Running AMGO Sticker 81400088 71111182 capacitor 10420148 Screw, Washer 81400560 Throttle valve Cover of 81400066 81400266 Relief valve capacitor Motor 81400363...
  • Page 22 Description Item Part# Description Rubber pad AC connector 81400180 41030055 Start capacitor Cover of Motor 81400130 81400287 Terminal Box Running AMGO Sticker 81400088 71111104 capacitor 10420148 Screw, Washer 81400560 Throttle valve Cover of 81400066 81400266 Relief valve capacitor Motor 81400363...

  • Page 23: Test Run

    V. TEST RUN Adjust the lower speed (See Fig.33) Users can adjust the descending speed according to their needs. Adjust the throttle valve core clockwise. At this time, the descending speed becomes slower, and vice versa. Throttle valve Throttle valve Counterclockwise to increase the Clockwise to decrease the down speed...

  • Page 24: Operation Instructions

    2. Test with loading After finishing the above adjustment, test running the lift with loading. Run the lift in low position for several times firstly, make sure the lift can rise and lower without abnormal phenomena. And then test run the lift to the top completely. If there are anything improper, repeat the above adjustment.

  • Page 25: Maintenance Schedule

    8. Turn on the power and push the button , raise the lift until the rubber pad full contact the car and ensure it’s safe. 9. Continue raise the vehicle to the desired height and make sure the vehicle is steady when the lift is rising, then release the button.

  • Page 26: Trouble Shooting

    VII. TROUBLE SHOOTING TROUBLE CAUSE REMEDY Button does not work 1. Replace button Wiring connections are not in good 2. Repair all wiring connection condition Motor does AC contactor burned out 3. Repair or replace contactor not run Motor burned out 4.
  • Page 27 Address: 1931 Jo Rogers Blvd, Manning, South Carolina，USA No：72115105 Date：2019/11...
