Installation procedure

Refreshing the end-point

module display with a short

Smart-Vue 4-20 mA Installation Guide

NOTE: This installation method is designed for networks with up to about

15 end-point modules. For larger sites, please see the Thermo Scientific

Smart-Vue Software User Manual for setup instructions or check with an

experienced technician.

If a receiver or repeater is within wireless range, the Smart-Vue end-point

module automatically establishes the wireless connection, as shown in the

sequence of screen shots below:

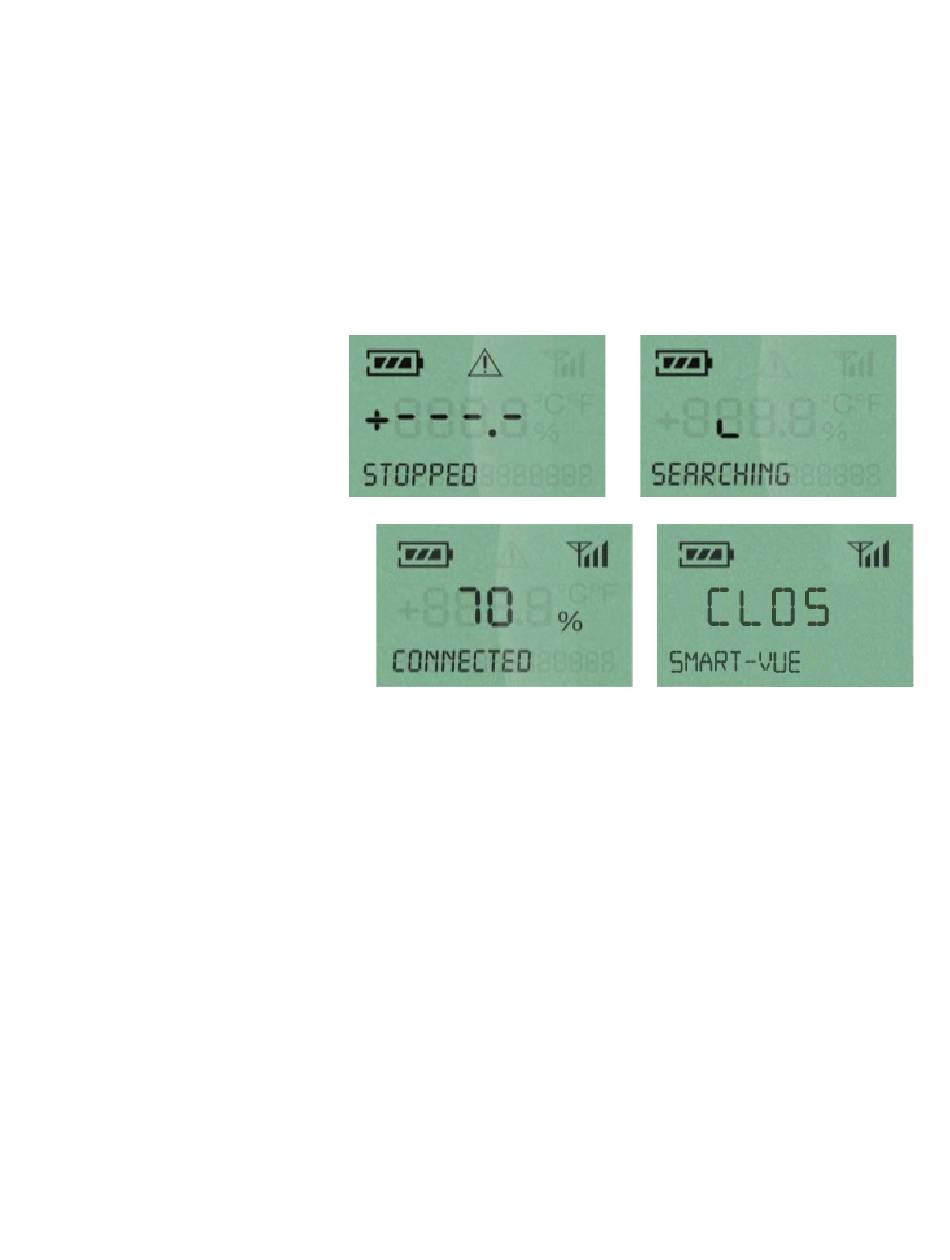

Figure 5. Smart-Vue end-point module automatic wireless setup

sequence

The end-point module begins data-logging upon startup even if it does not

connect to the wireless system. Once the end-point module does connect to

the system, as shown in Figure 5, we recommend that you avoid performing

a long-press again, which consumes battery life for no reason.

You may refresh the Smart-Vue display with the latest sensor readings by

performing a short press on the end-point module's push-button. Press the

press

button briefly to update and view the current reading.
