4. Create an active group by clicking on the receiver name ("local" in
this example) to Create group, and then enter the group name
("Group_1" in this example). Click on OK to continue.
5. Drag the new sensor from the "SDP-local" group to the group you
just created:

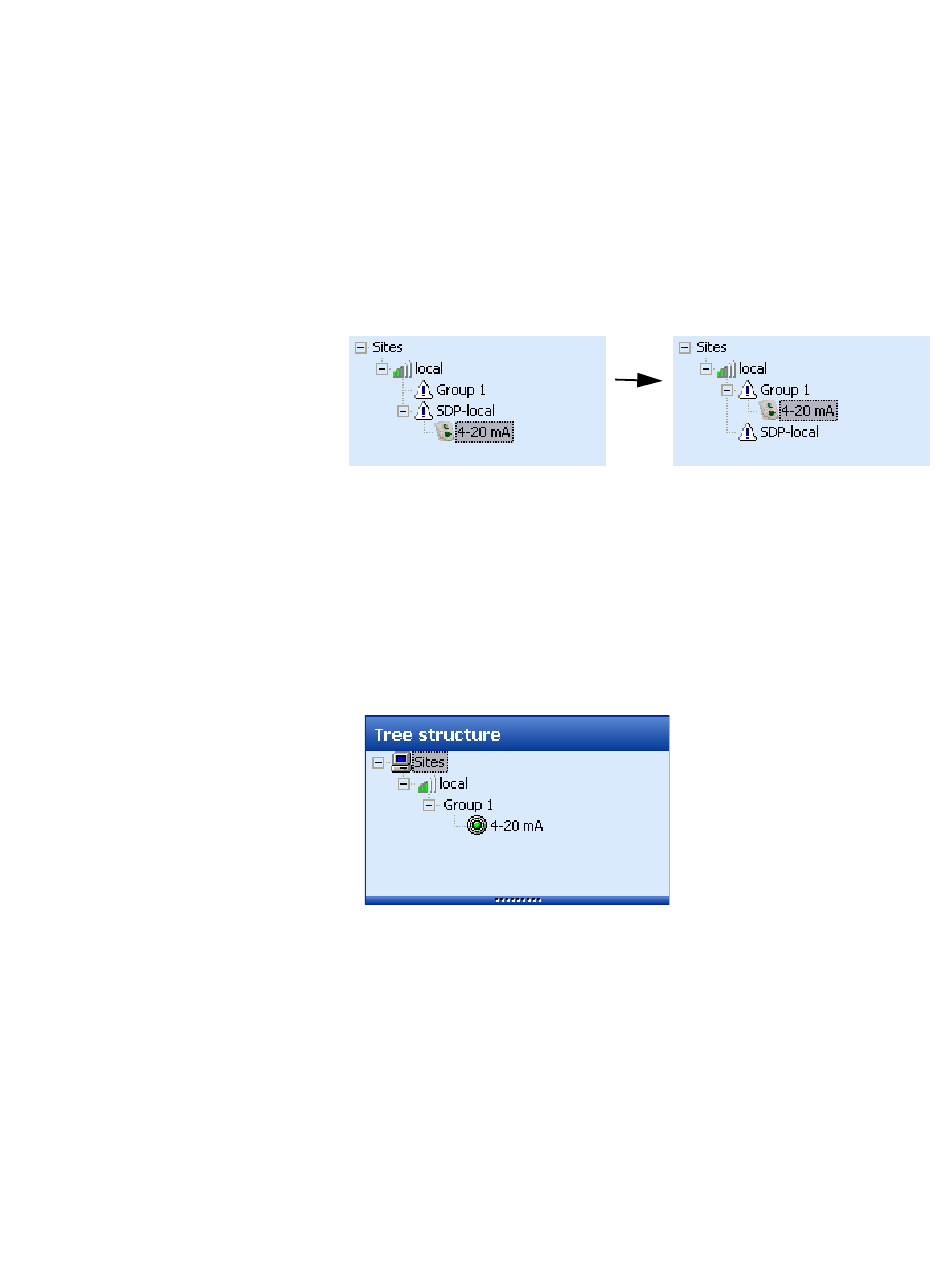

Figure 8. Move sensor from the generic "SDP" group to your active
group
6. Click on Close ==> Yes ==> OK to update the end-point module,
save this change, and return to the tree structure, as shown below:
Figure 9. 4-20 mA sensor in the ""Group_1" group
