5. Operation Patterns

ON timing: ON upon the set delay
Output method: Normal close
Settable time delay: 0.5 to 60 seconds
Operation time chart is shown in Fig. 1.
(Input signal)
When an Input Signal Pressure is provided, Output turns ON after the preset time. The Output will be
switched OFF after the Input Signal Pressure is removed.

6. Characteristics

(1) How to set the time delay
The time delay can be set by turning the setting handle. Relation between the delay time and the
number of rotations of the handle is shown in Fig. 2. Turning the handle in the clockwise direction will
increase the time delay, while turning it in the counter-clockwise direction will decrease the time delay.
However, as there are variations in the time delay, it should be confirmed with a stopwatch prior to
use
Fig. 2: Relationship between the time delay and number of rotations of the setting handle
(Output)

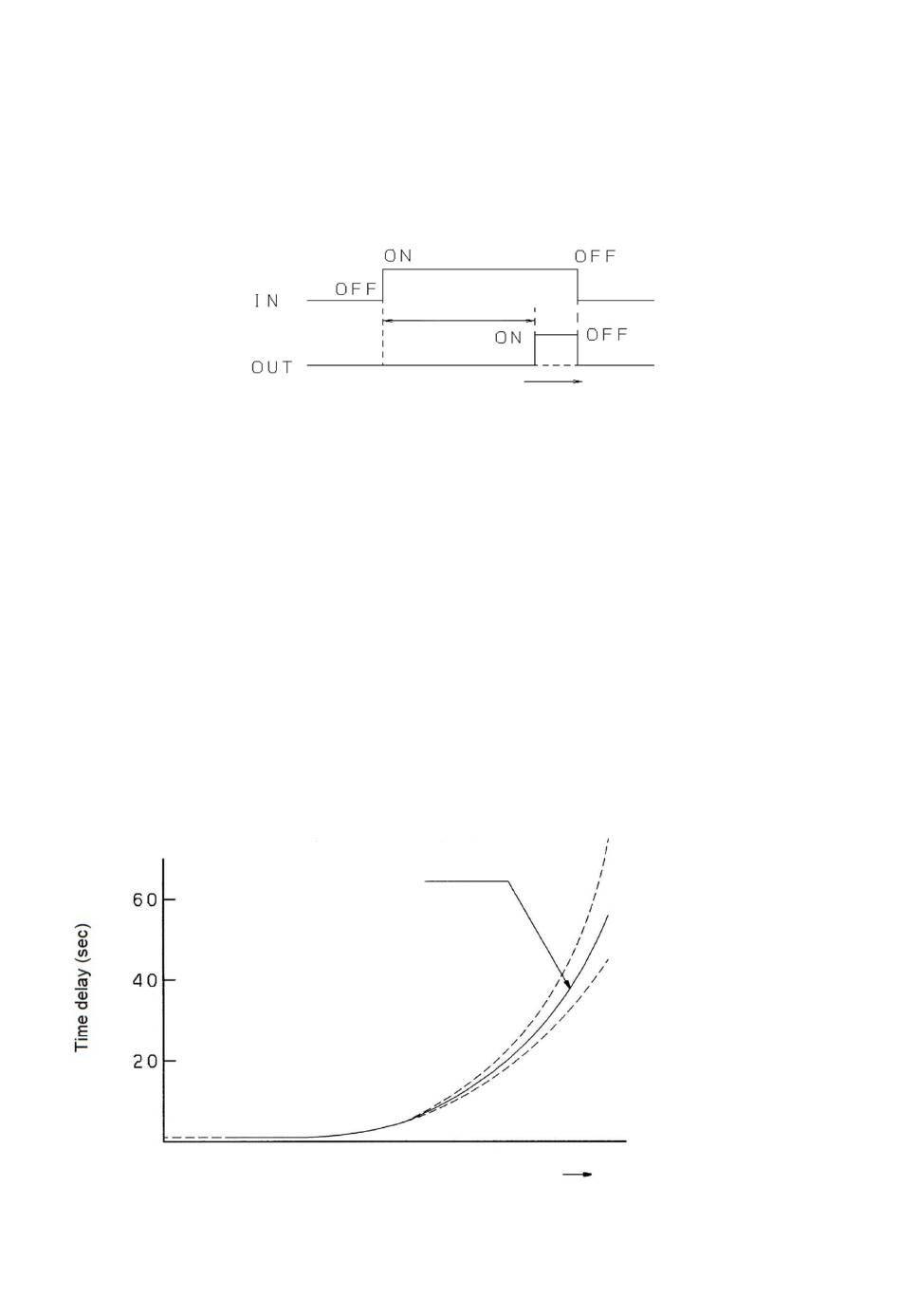

Fig. 1: Operation timing chart
Input signal pressure
Handle rotation in clockwise direction
Time delay
Time
0.5 MPa
